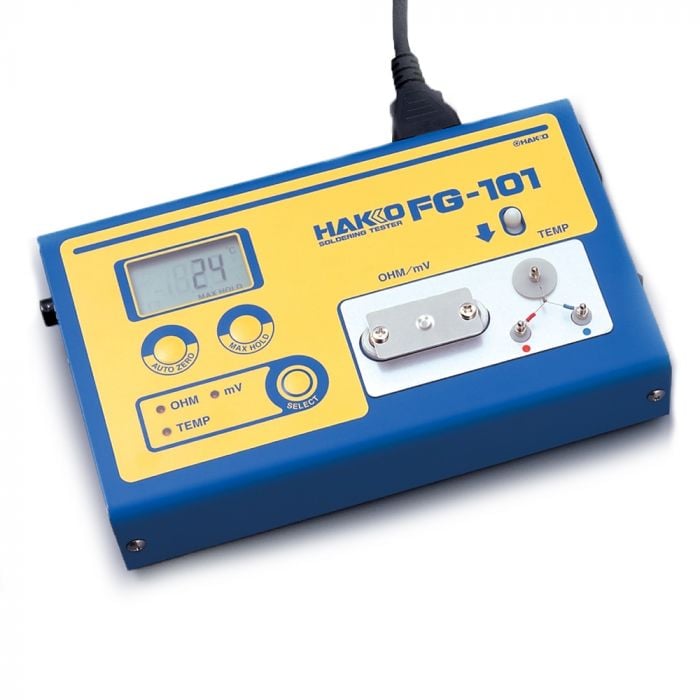

FG-101 Soldering Iron Tester (°Fahrenheit)
Text block
SKU FG101-10
by Hakko
Sold out
Original price
$1,221.27
-
Original price
$1,221.27
Original price
$1,221.27
$1,221.27
-
$1,221.27
Current price
$1,221.27
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued. It has been replaced by FG101B-03.
The Hakko FG-101 Soldering Tester measures tip temperature, leak voltage, and tip-to-ground resistance. This tester will provide you with quick, accurate soldering measurements. Note: Calibration Certificate comes with equipment. This part number has been replaced by FG101B-03. NOTE: This is a REFURBISHED item
Specifications
| Part Number | FG101-10 |
| Temperature | Resolution |
| Measurement range* | 32°F - 1300°F |
| Precision | ±6°F (572°F - 932°F)±10° outside of above range |
| Sensor | K(CA) thermocouple |
| Voltage | Resolution |
| Measurement range | 0-40mV (AC) |
| Precision | ± (5% + 1 digit) |
| Resistance | Resolution |
| Measurement range | 0-40 ohms |
| Precision | ± (5% + 1 digit) |
| Display | Liquid Crystal Display |
| Burnout | -/ |
| MAX HOLD | Refer to manual |
| Monitor Output | Temperature |
| Voltage | 10mV/mV |
| Resistance | 10mV/ohm |
| Burn out | -7V (MAX.) |
| Power Consumption | 120V/2W |
| Dimensions | 200(W) x 50(H) x 120(D) mm(7.9[W] x 2.0[H] x 4.7[D] in.) |
| Weight | 1 kg (2.2 lbs.) |
| Operation Temperature | 32°F—104°F 20%—90% RH |
