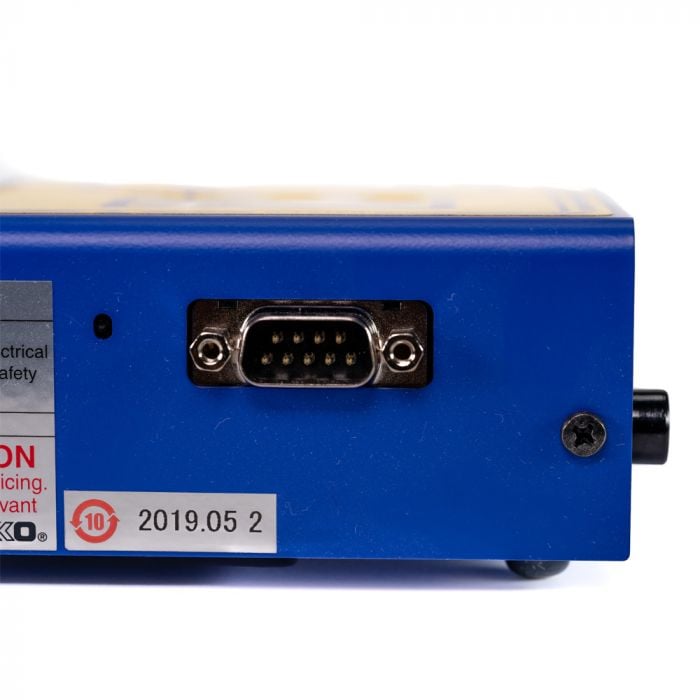

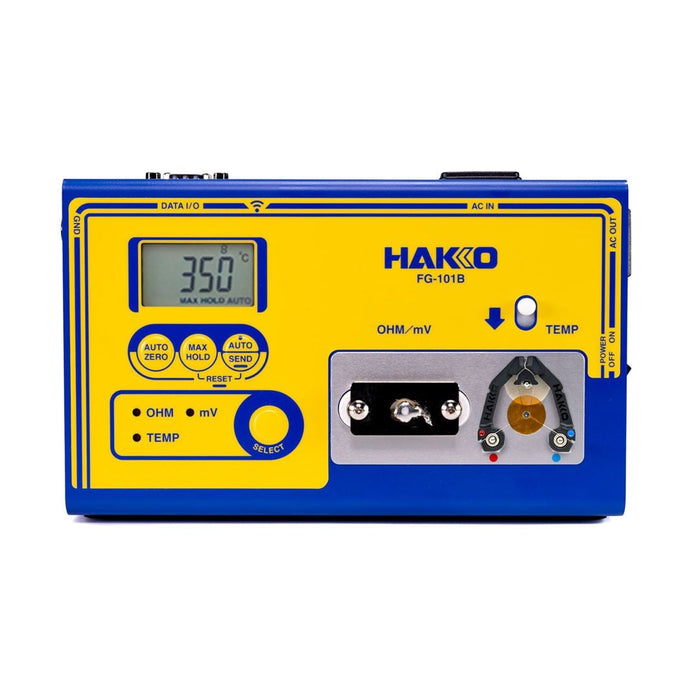

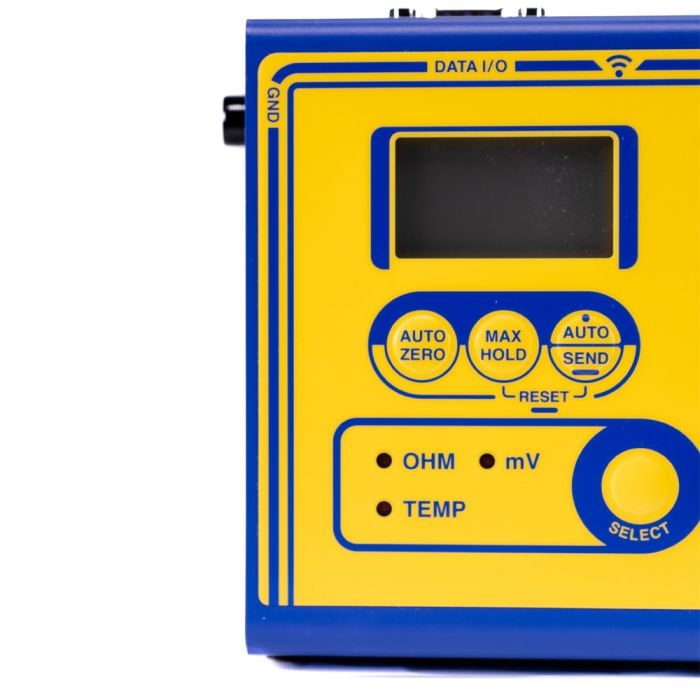

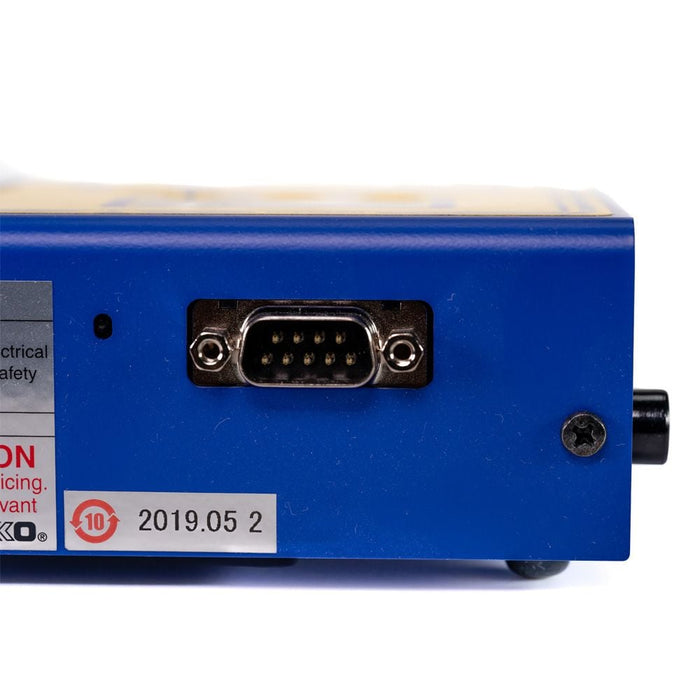

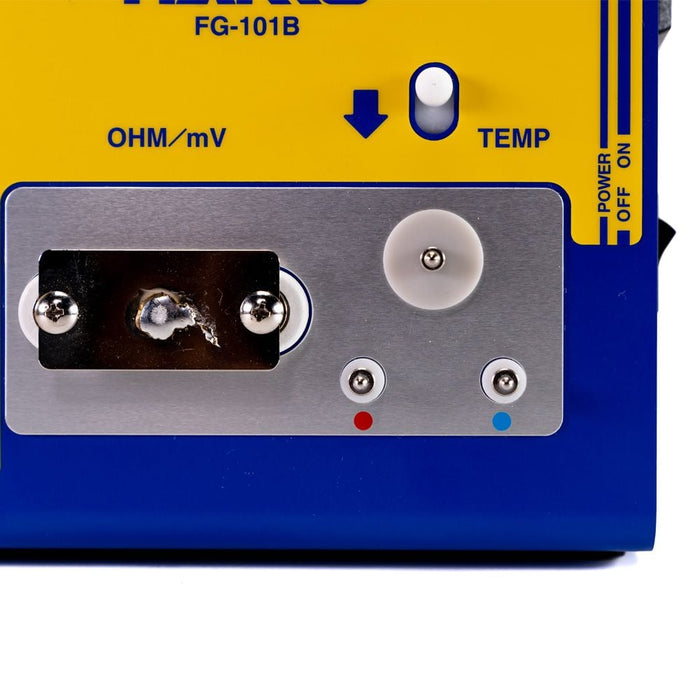

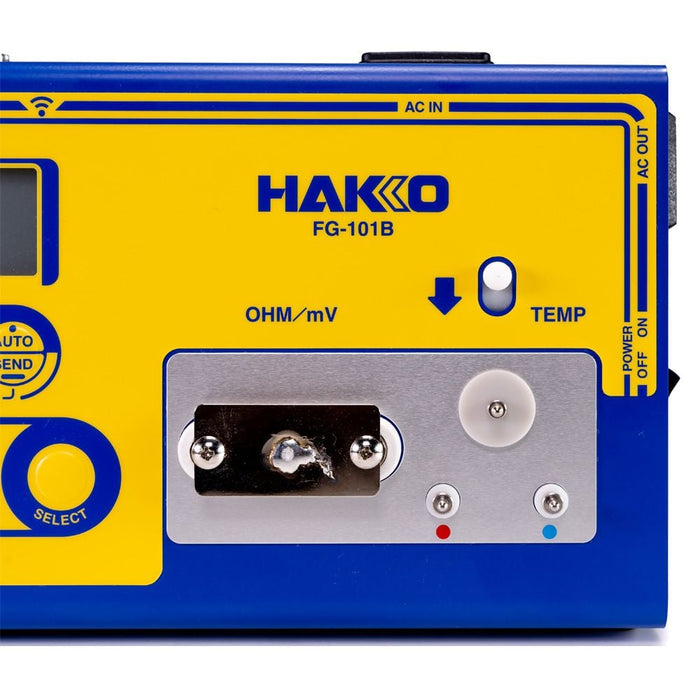

FG-101B Soldering Iron Tester
Text block
SKU FG101B-03
by Hakko
Save $80.15
Original price
$1,282.27
Original price
$1,282.27
-
Original price
$1,282.27
Original price
$1,282.27
Current price
$1,202.12
$1,202.12
-
$1,202.12
Current price
$1,202.12
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

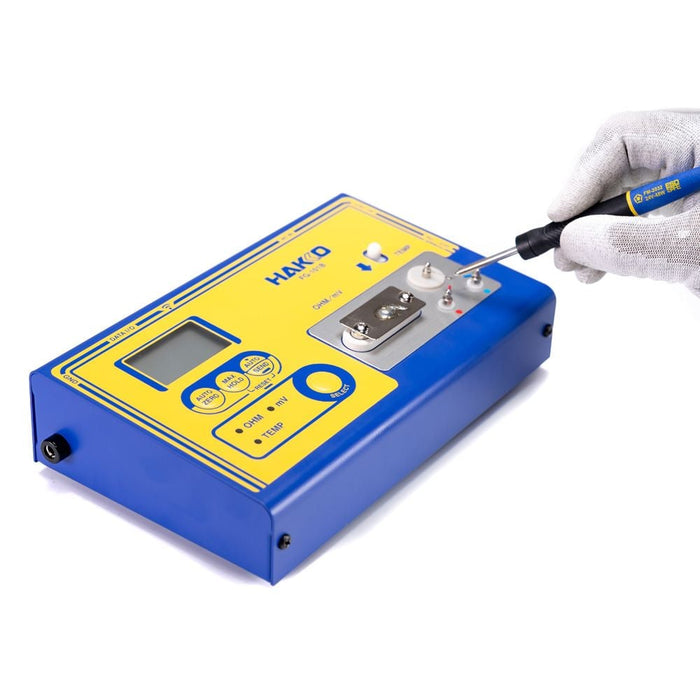

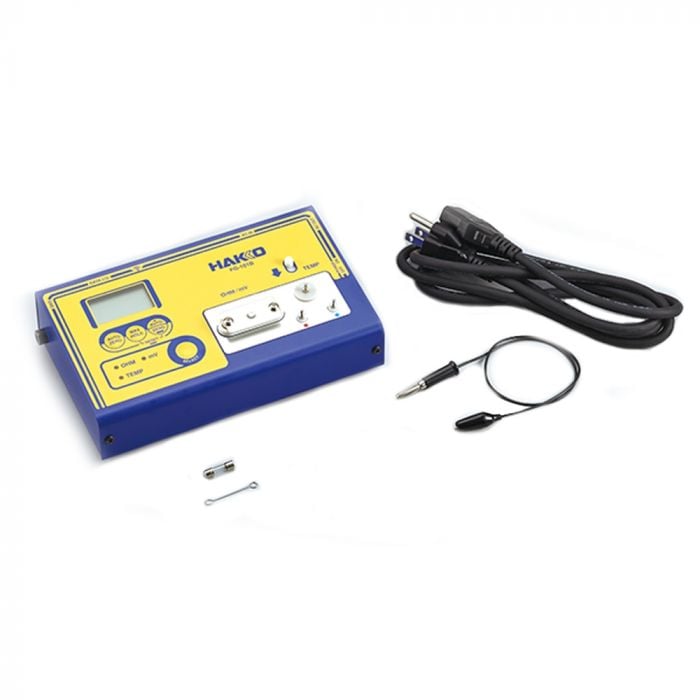

TESTER,w/THERMOMETER,w/CAL CERT,FG-101B The Hakko FG-101B Soldering Tester measures tip temperature, leak voltage, and tip-to-ground resistance. This tester will provide you with quick, accurate soldering measurements. Note: This product comes with a Calibration Certificate.
Specifications
| Part No. | FG101B-03 |
| Resolution | °F |
| Range of Measurement1 | 32 - 1300°F |
| Applied Sensor | K(CA) Type Thermocouple |
| Measurement Tolerance2 | ±6°F(572 - 1112°F) |
| Voltage Resolution | 0.1mV |
| Measurement Range | 0-40mV (AC) |
| Voltage Precision | ± (5% + 1 digit) |
| Resistance Resolution | 0.1 ohms |
| Resistance Measurement range | 0-40 ohms |
| Resistance Precision | ± (5% + 1 digit) |
| LCD Display | 3.5 digit |
| Temperature Measurement Count | 000 to 999 counts |
| Power Consumption | 120V/3.2W |
| Dimensions(excluding protrusions) | 211 x 53 x 126 mm8.31 x 2.09 x 4.96 in. |
| Weight | 0.95kg (2.09 lb.) |
| Operating Environment | 0-40°C (32-104°F)Max 80%RH no condensation |
| Pollution Degree Rating | Pollution Degree 2 |
