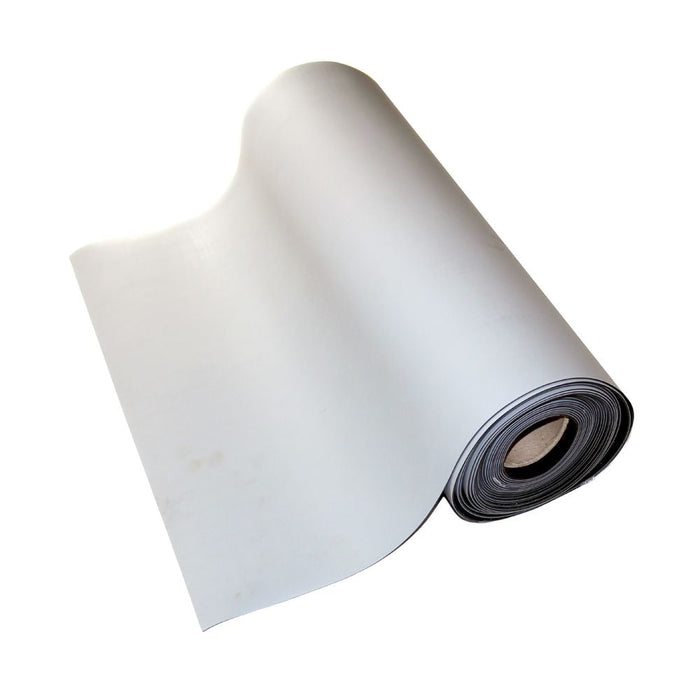

24" x 32 ft. Two Layer Natural Rubber ESD Mat
Text block
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
Made from all natural rubber with a conductive bottom layer and dissipative top layer. Surface is a smooth, matt surface that is easy to clean and reduces glare, and features a non-skid backing. The smooth matt surface also reduces unwanted sliding or other movement of assemblies on the surface which can induce charges. The natural rubber product has a high resistance to heat, burns, and chemicals. Available colors: Blue, Green, Gray *All mat sold in rolls of 32 linear feet, optimized for shipping, handling, and scrap reduction. Note: Color may appear darker or light than shown in picture.
Specifications
| Part No. | SC-1003 |
| Base Material | Natural Rubber |
| Surface Resistance | < 108Ω | 104Ω |
| Thickness | 1.5 mm | 0.5 mm |
| Tensile Strength (min) | 105 Kg/cm2 |
| Elongation (min) | >300% |
| Hardness (Shore A) | 65 ±5 |
| Tear Strength (min) | 30 Kg/cm |
| Resistance-Top to Top | RTT:1 x 107to 9 x 108Ω |
| Resistance-Top to Ground | 1 x 107to 9 x 108~ |
| Charge Decay Time | Less Than 0.1 sec |
| Total Thickness | 0.08" (2 mm) |
| EOS/ESD S4.1 RTG Compliant | Yes |
| ANSI/ESD S541-2003 Compliant | Yes |
| FSTM 101 M4046 Compliant | Yes |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Heat Resistance | 600oF |
| Colors | Blue, Green, Grey |
| Surface Finish | Smooth Matte finish |
