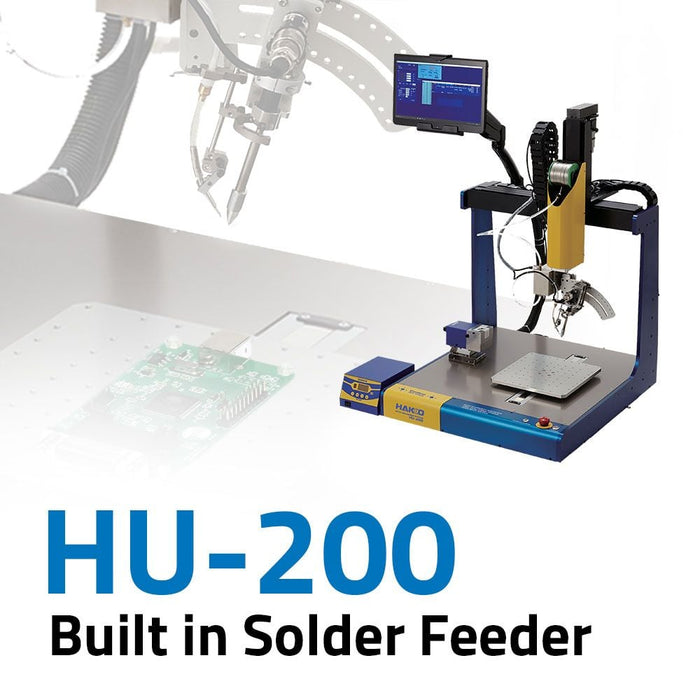

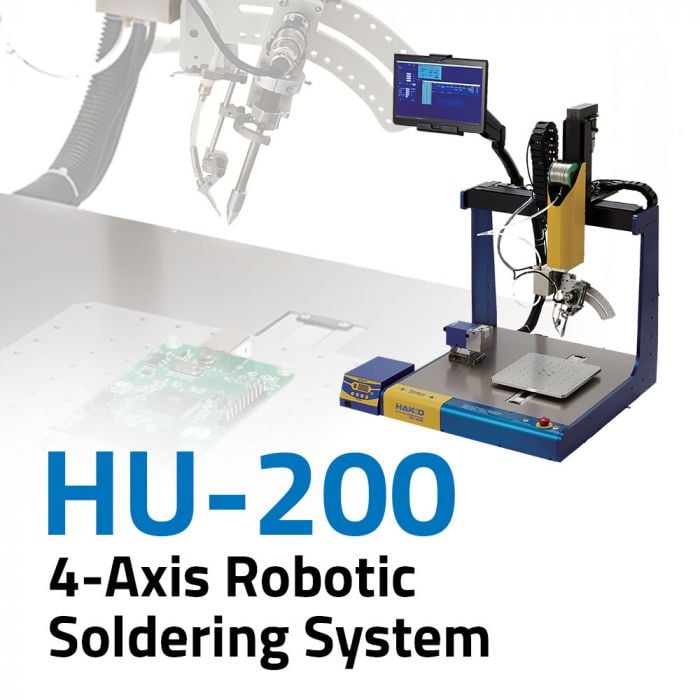

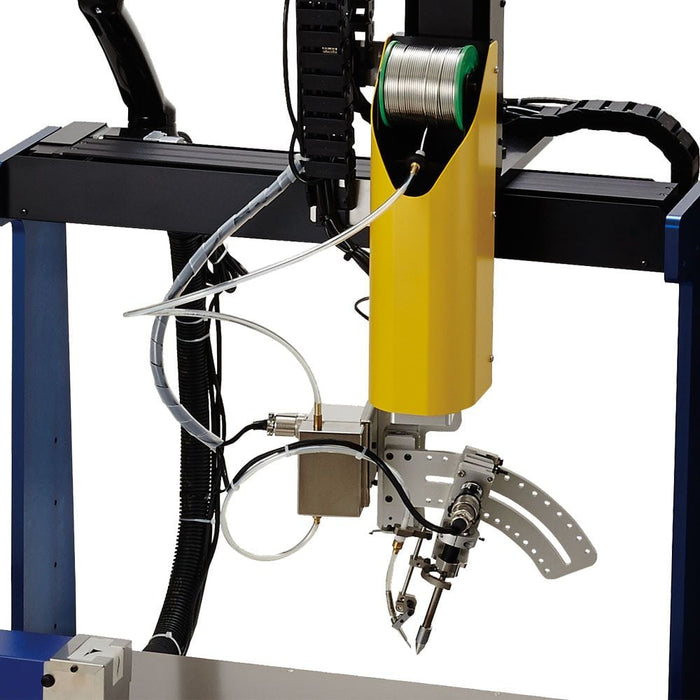

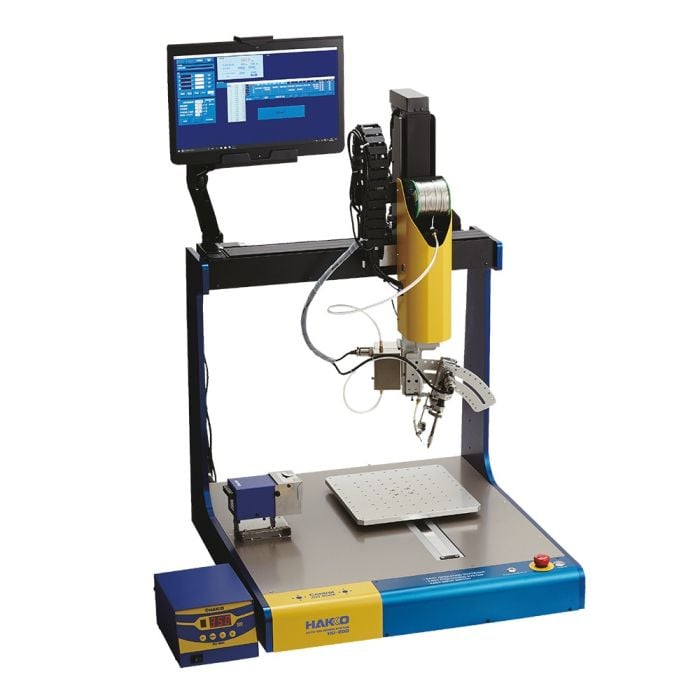

HU-200 Robotic Soldering System
Text block
SKU HU200-03Z
by Hakko
Original price
$30,900.00
-
Original price
$30,900.00
Original price
$30,900.00
$30,900.00
-
$30,900.00
Current price
$30,900.00
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
With the power of the FU-601, the easy robot programming and the reliability of Hakko products, the HU-200 offers a solution to almost any soldering project!!! NOTE: PLEASE CALL for any inquiries FIND OUT HOW WE CAN HELP
Specifications
| Model Name | HU-200 |
| Part No. | HU200-03Z |
| Input Voltage | 100-240 VAC |

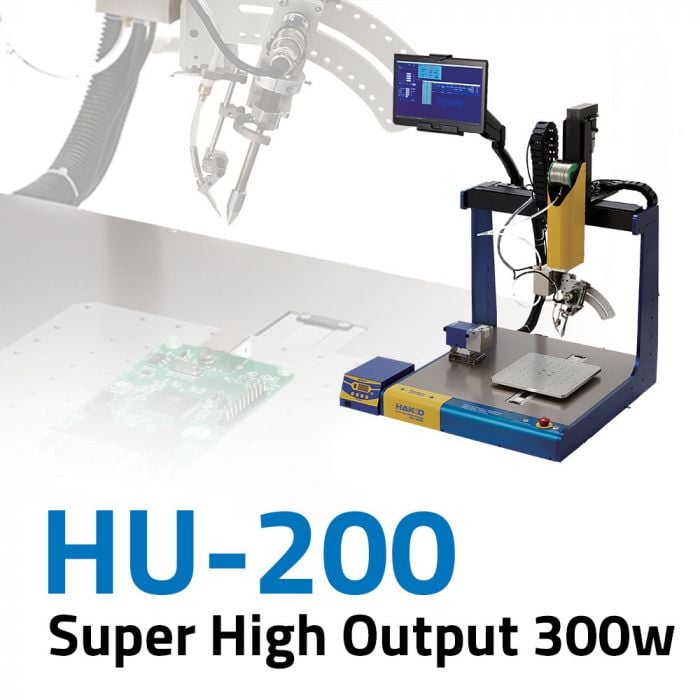

| Power Consumption | 300W |
| Movement | X axis 400mmY axis 300mmZ axis 200mmO axis ±200° |
| Drive System | Servo motor (All axes) |
| Position Detection | Absolute Encoder |
| Maximum Speed | X/Y/Z axis: 800 mm/s, O axis: 800°/s |
| Repeatability | X/Y/Z axis: ±0.01 mm (Only when the unit temperature is constant), O axis: ±0.01° |
| Noise Level | 56dB |
| Ambient Temperature Range | 0-104°F/0-40°C |
| Max Workpiece Payload | 20kg (44.1 lb) |
| External I/O Ports | 20 inputs / 12 Outputs (2 for cleaner) |
| External Interface | 4 USB Ports (1 for PC) |
| Dimensions (WxHxD)mm | 600 x 910 x 650mm(23.6 x 35.8 x 25.6in) |
| Weight | 50 kg (110.23 lb.) |
| ESD Safe | Yes |
