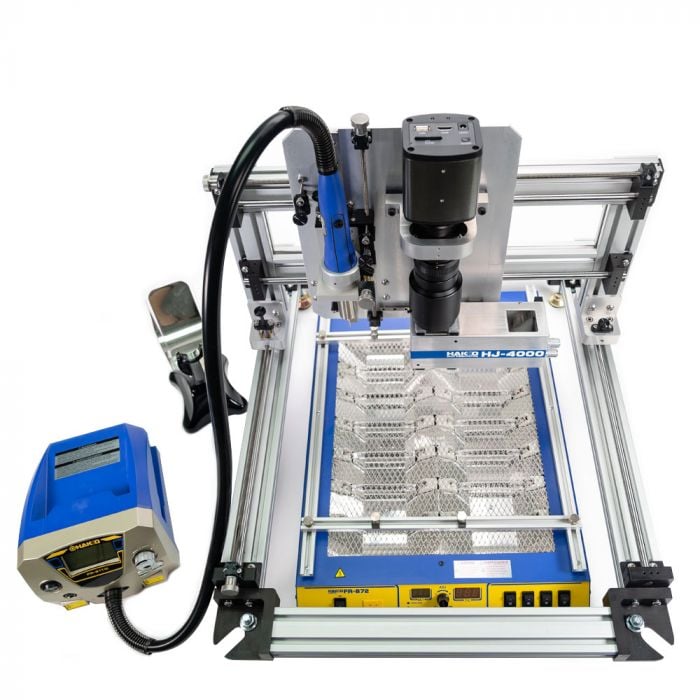

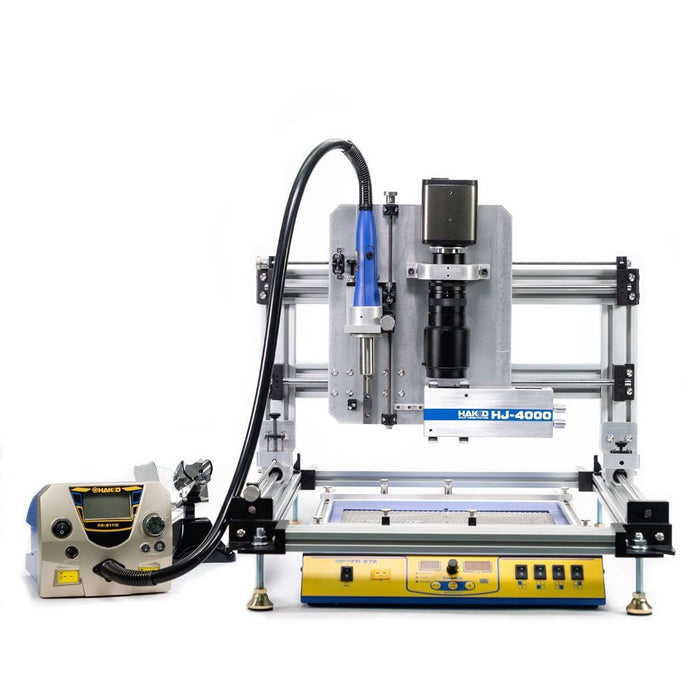

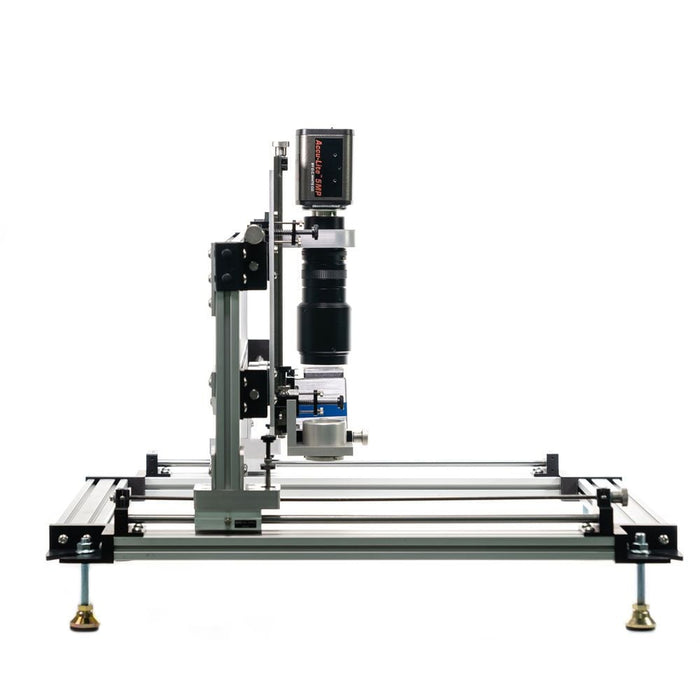

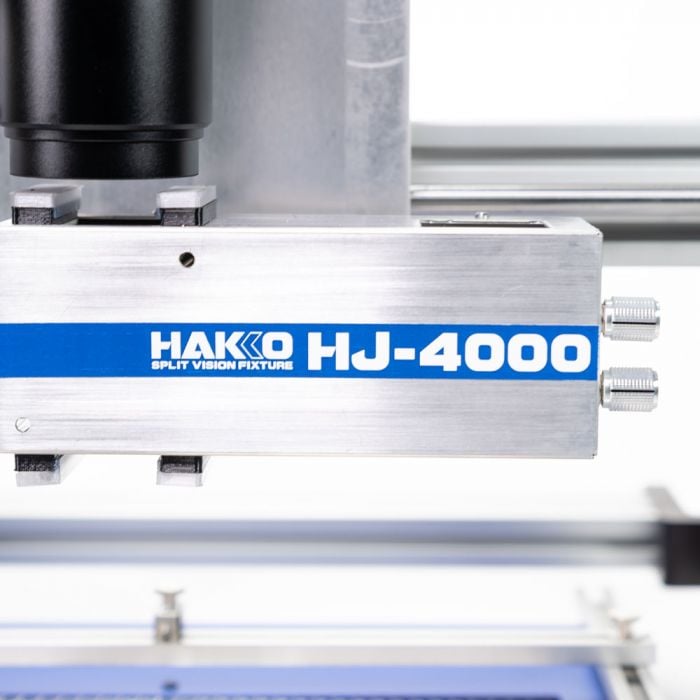

HJ4000-SET SMD Rework Fixture
Text block
SKU HJ4000-SET
by Hakko
Sold out
Original price
$9,888.87
-
Original price
$9,888.87
Original price
$9,888.87
$9,888.87
-
$9,888.87
Current price
$9,888.87
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued by Hakko. No direct replacement has been specified by the manufacturer.

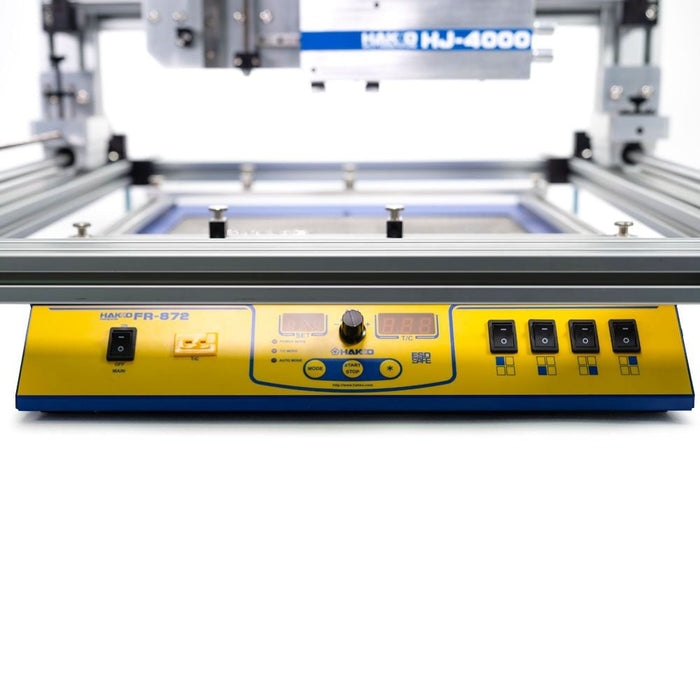

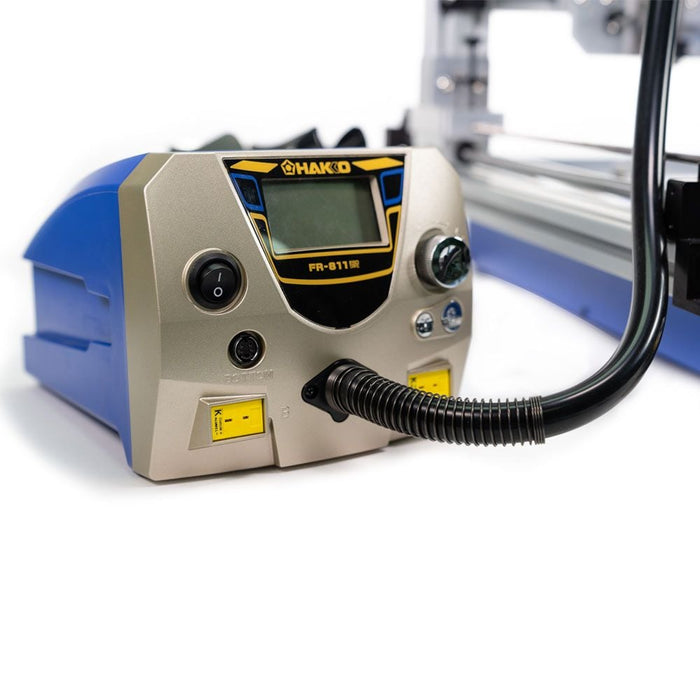

SET, HJ4000 + FR811-04 Hot Air Rework Station + FR872-03 Preheater Please Contact For All Inquiries
Specifications
| Model Name | HJ4000 |
| Part No. | HJ4000 |
| Movement Range | X axis 335mm (13.9 in)Y axis 447mm (17.5 in)Z axis 247mm (9.7 in)Rotation ±30° |
| Camera Type | CMOS 1/2.5" |
| Resolution | 5MP, 2592 x 1932 (Max) |
| Optical Interface | C-Mount |
| Zoom | 6X - Optical, 10X - Digital |
| Camera Output | HDMI |
| Lighting | Independently Dimmable LED White (Top) / Blue (Bottom) |
| Power Supplies | 1 - 120VAC to 12VDC 2A (Camera)1 - 120VAC to 24V 1.67A (Lighting) |
| Dimensions | (L x W x H) 735 x 536 x 504 mm |
| Weight | 14.7 kg (32.4 lb) |
| ESD Safe | Yes |
