Hakko FA-430 with Duct & Round Nozzle (Qty of 6)

MPN: FA430-KIT2

SKU

by Hakko

$4,672.01 - $4,672.01

$4,672.01

$4,672.01 - $4,672.01

$4,672.01

Buy BULK & Save $$

Single Unit $806.91

Quantity

Pay with a Purchase Order

As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

SMOKE ABSORBER,w/C1572,FA-430

The Hakko FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area. Kit includes filter and duct kit with round nozzle.

Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430.

Request a Free Demo

Specifications

Part No.	FA430-16
Power Consumption	110W / 120VAC
Motor Type	Brushless
Max. Airflow (w/ single duct)	4.1 m3/min (145 cfm)
Max. Airflow (w/ two ducts)	4.7 m3/min (167 cfm)
Vacuum Pressure	1500 Pa (0.44 in. Hg)
Filtering Efficiency	>98% 0.3µm (capable of 99.97% @ 0.3µm)
Noise Level	44 - 53 dB @ 1m
Dimensions	330 (W) x 366 (H) x 343 (D) mm (13.0 x 14.4 x 13.5 in.)
Weight	7.5 kgs (16.5 lb.)
ESD Safe	Yes
Country of Origin	JPN
Safety Approval

What's in the box?

Description	Part No.
Fume Extraction Unit	FA430-16
Pre-filter	A1585
Main Filter	A1586
Port Cap	B3619

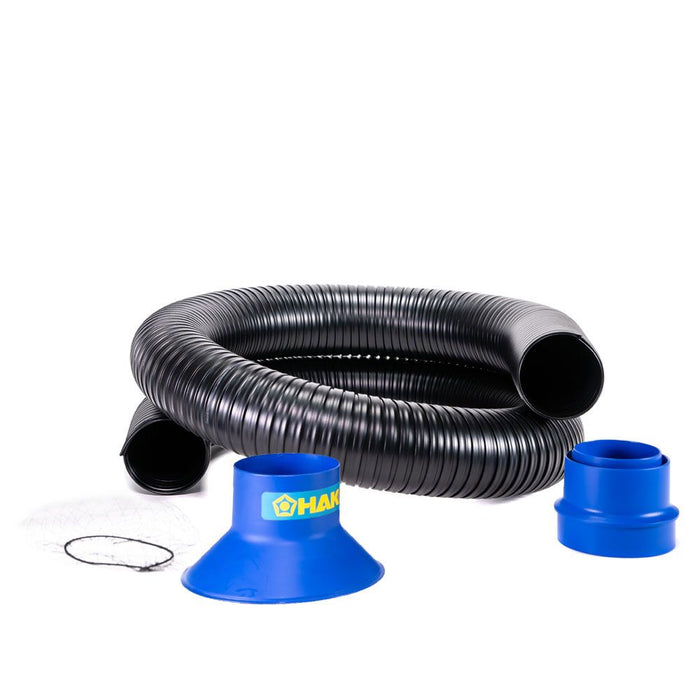

Duct Kit with round nozzle	C1572
Power Cable	B3641
Instruction Manual	--

FUME AND SMOKE EXTRACTION SYSTEM

The Hakko FA-430 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source. (Shown above: Loc-Line duct with rectangular nozzle.)

Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the FA-430 unit by rigid ducts, and a special replacement filter notification function notifies the operator when the filter needs to be replaced.

Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the FA-430 is located.

The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case.

The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.

• Powerful suction

• Quiet operation

• 3-airflow adjustment modes: High, Medium, Low

• Free standing ducts

• To maintain optimum filtering efficiency, special filter replacement indicators on the front panel notify you when it is time to replace the filters.

• Kit includes duct kit with round nozzle

Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430.

Description

SMOKE ABSORBER,w/C1572,FA-430

Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430.

Request a Free Demo

Specifications

Part No.	FA430-16
Power Consumption	110W / 120VAC
Motor Type	Brushless
Max. Airflow (w/ single duct)	4.1 m3/min (145 cfm)
Max. Airflow (w/ two ducts)	4.7 m3/min (167 cfm)
Vacuum Pressure	1500 Pa (0.44 in. Hg)
Filtering Efficiency	>98% 0.3µm (capable of 99.97% @ 0.3µm)
Noise Level	44 - 53 dB @ 1m
Dimensions	330 (W) x 366 (H) x 343 (D) mm (13.0 x 14.4 x 13.5 in.)
Weight	7.5 kgs (16.5 lb.)
ESD Safe	Yes
Country of Origin	JPN
Safety Approval

What's in the box?

Description	Part No.
Fume Extraction Unit	FA430-16
Pre-filter	A1585
Main Filter	A1586
Port Cap	B3619
Duct Kit with round nozzle	C1572
Power Cable	B3641
Instruction Manual	--

FUME AND SMOKE EXTRACTION SYSTEM

The Hakko FA-430 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source. (Shown above: Loc-Line duct with rectangular nozzle.)

Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the FA-430 unit by rigid ducts, and a special replacement filter notification function notifies the operator when the filter needs to be replaced.

Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the FA-430 is located.

The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case.

The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.

• Powerful suction

• Quiet operation

• 3-airflow adjustment modes: High, Medium, Low

• Free standing ducts

• To maintain optimum filtering efficiency, special filter replacement indicators on the front panel notify you when it is time to replace the filters.

• Kit includes duct kit with round nozzle

Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430.

Specifications & Info

<div class="product attribute specifications"> <div class="value" ><div class="row"> <div class="col-md-6 col-xs-12"> <img class="mobile-hidden" alt="" src="https://s3-us-west-2.amazonaws.com/hakko-production-images/staging/full/ProductSpec/specs4.jpg" height="30" width="40" />Specifications <table style="width: 450px; height: 222px; border-color: #000000; border-width: 1px; border-style: solid;" border="1"> <tbody> <tr> <td> Part No.</td> <td> FA430-16</td> </tr> <tr> <td> Power Consumption</td> <td> 110W / 120VAC</td> </tr> <tr> <td> Motor Type</td> <td> Brushless</td> </tr> <tr> <td> Max. Airflow (w/ single duct)</td> <td> 4.1 m3/min (145 cfm)</td> </tr> <tr> <td> Max. Airflow (w/ two ducts)</td> <td> 4.7 m3/min (167 cfm)</td> </tr> <tr> <td> Vacuum Pressure</td> <td> 1500 Pa (0.44 in. Hg)</td> </tr> <tr> <td> Filtering Efficiency</td> <td> >98% 0.3µm (capable of 99.97% @ 0.3µm)</td> </tr> <tr> <td> Noise Level</td> <td> 44 - 53 dB @ 1m</td> </tr> <tr> <td> Dimensions</td> <td> 330 (W) x 366 (H) x 343 (D) mm (13.0 x 14.4 x 13.5 in.)</td> </tr> <tr> <td> Weight</td> <td> 7.5 kgs (16.5 lb.)</td> </tr> <tr> <td> ESD Safe</td> <td> Yes</td> </tr> <tr> <td> Country of Origin</td> <td> JPN</td> </tr> <tr> <td> Safety Approval</td> <td align="center"><img src="https://s3-us-west-2.amazonaws.com/hakko-production-images/staging/full/ProductSpec/MET_cus.gif" alt="" width="51" height="50" /></td> </tr> </tbody> </table> </div> <div class="col-md-6 col-xs-12"> <img class="mobile-hidden" alt="" src="https://s3-us-west-2.amazonaws.com/hakko-production-images/staging/full/ProductSpec/box1.jpg" height="22" width="27" /> What's in the box? <table style="width: 298px; height: 100px; border-color: #000000; border-width: 1px; border-style: solid;" border="1"> <tbody> <tr> <td> Description</td> <td> Part No.</td> </tr> <tr> <td> Fume Extraction Unit</td> <td> FA430-16</td> </tr> <tr> <td> Pre-filter </td> <td> <a href="/a1585-pre-filter.html" target="_self">A1585</a></td> </tr> <tr> <td> Main Filter </td> <td> <a href="/a1586-main-filter.html" target="_self">A1586</a></td> </tr> <tr> <td> Port Cap </td> <td> <a href="/b3619.html" target="_self">B3619</a></td> </tr> <tr> <td> Duct Kit with round nozzle </td> <td> <a href="/c1572-duct-kit-with-round-nozzle-fits-fa-430.html" target="_self">C1572</a></td> </tr> <tr> <td> Power Cable </td> <td> <a href="https://hakkousa.com/b3641.html" target="_self">B3641</a></td> </tr> <td> Instruction Manual</td> <td> --</td> </tr> </tbody> </table> </div> </div> </div> </div>
