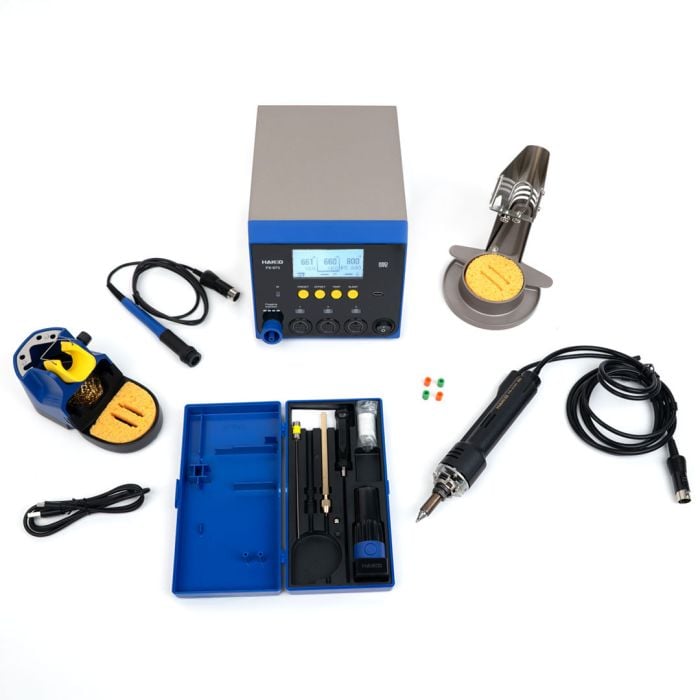

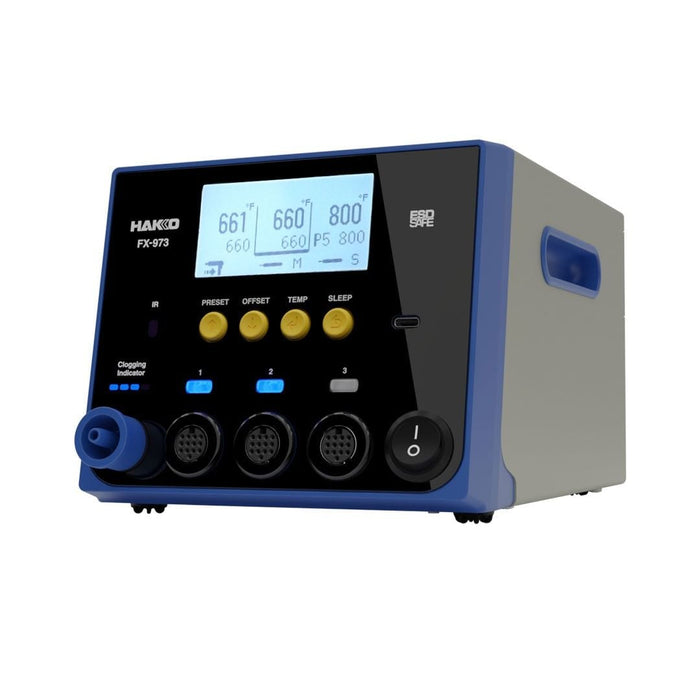

FX-973 3-Port Rework Station w/ Pencil Style Handpiece
Text block
SKU FX973-013
by Hakko
Save $132.05
Original price
$2,111.17
Original price
$2,111.17
-
Original price
$2,111.17
Original price
$2,111.17
Current price
$1,979.12
$1,979.12
-
$1,979.12
Current price
$1,979.12
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

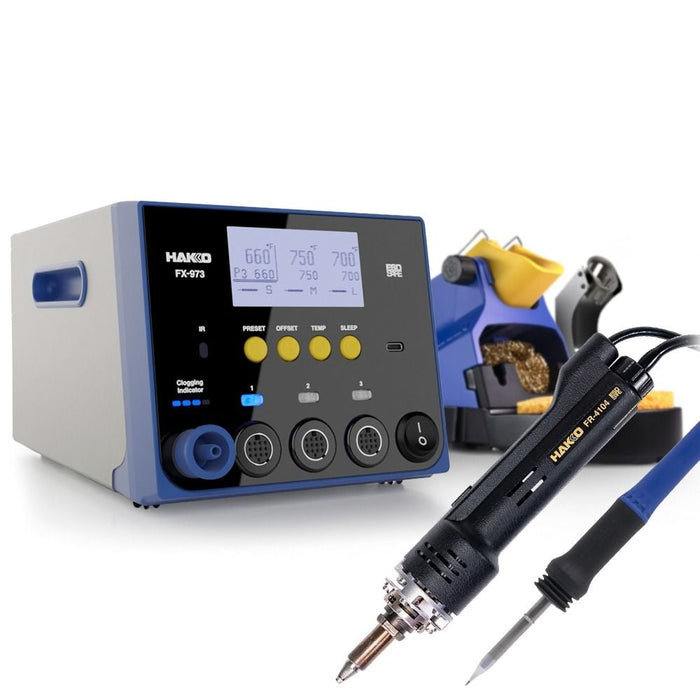

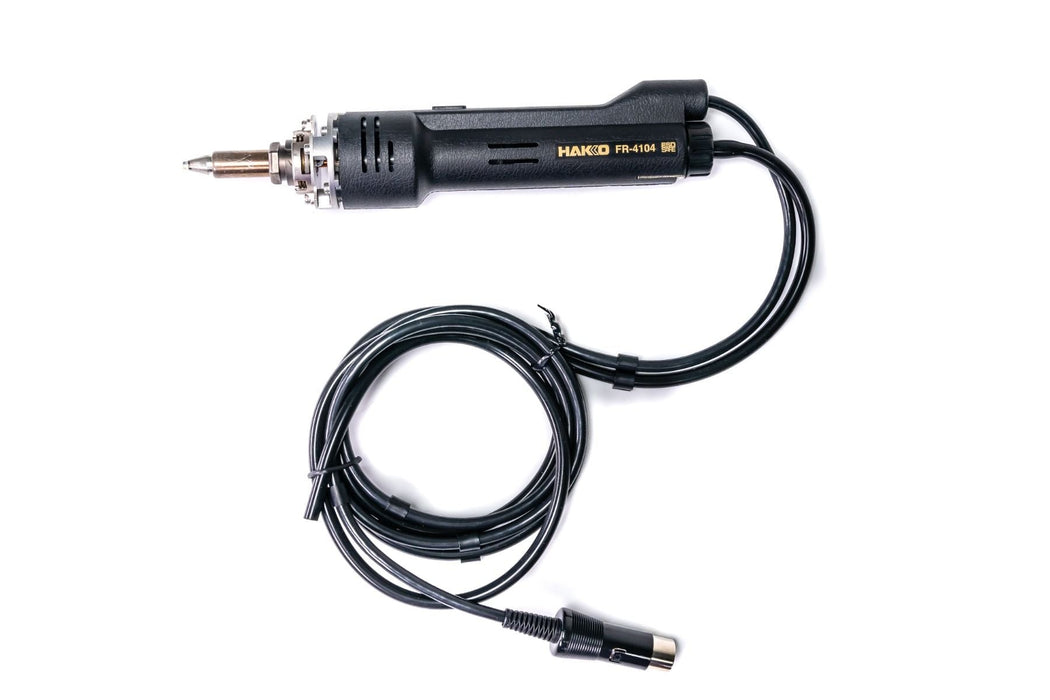

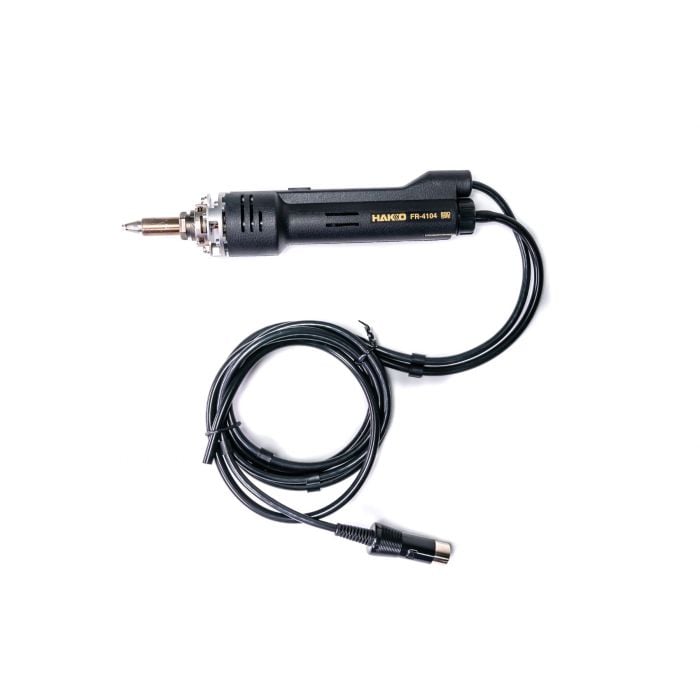

The new HAKKO FX-973 3-Port Rework Station delivers 400W (max) of high-performance for modern electronics rework. Supporting up to 10 handpieces with a wide temperature range, it features an integrated vacuum pump, and is compatible with the FR-4103/4104 desoldering tools. Download Software
Specifications
| Model Name | FX-973 |
| Part No. | FX973-011 |
| Power Consumption | 400W 120V |
| Temperature Range | 50° - 500°C (120° - 940°F)* |
| Temperature Stability | ±3°C (±5°F) |
| Vacuum Generator | Vacuum pump, double cylinder type |
| Vacuum Pressure (Max.) | 80 kPa (600 mmHg) |
| Suction Flow | 15 L/min. |
| Output Voltage | 24V |
| Outer Dimensions | 158(W) x 135(H) x 254(D) mm(6.2 x 5.3 x 10 in.) |
| Weight | 11.7 lb. (5.3 kg.) |
| Country of Origin | MYS |

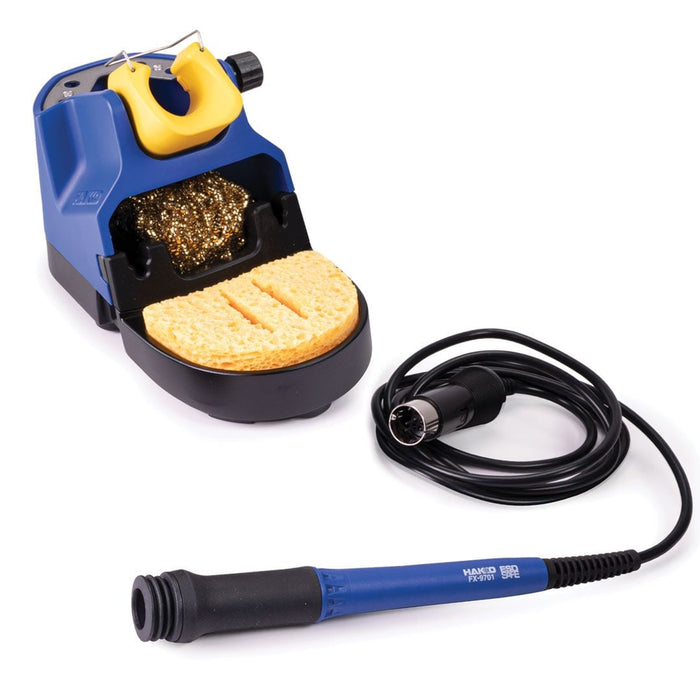

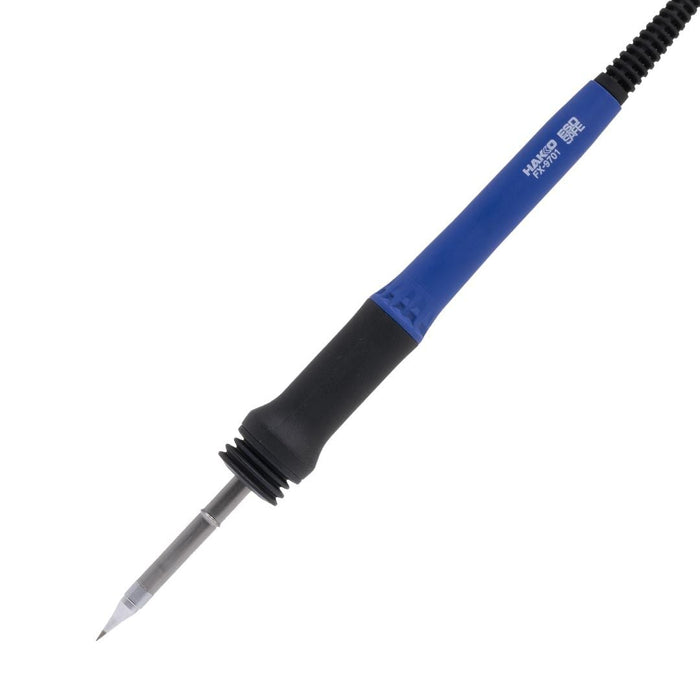

| Model Number | FX-9701 |
| Part Number | FX9701-81 |
| Power Consumption | 95 W / 24 VAC |
| Tip-to-Ground Resistance | < 2 OHMS |
| Tip-to-Ground Potential | < 2mV |
| Length of Cord | 3.9 ft. (1.2 m) |
| Total Length (w/o cord) | 188 mm (7.4 in.) |
| Weight (w/o cord) | 31g (0.067 lb./1.1 oz.) with T39-D24 tip |
