FX-971 Soldering Station
Text block
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

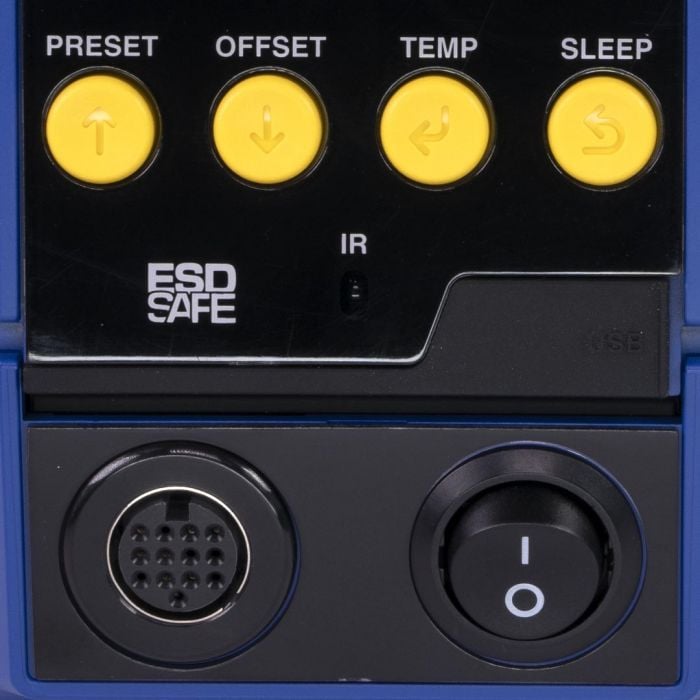

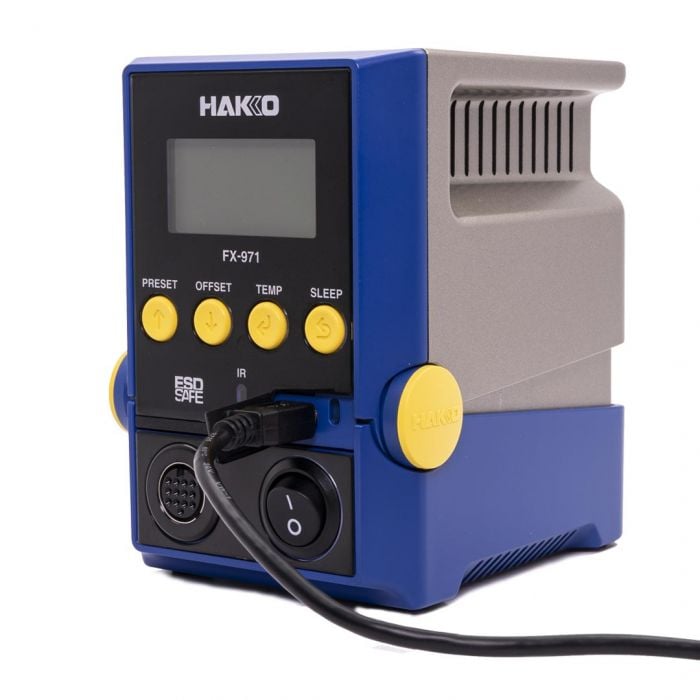

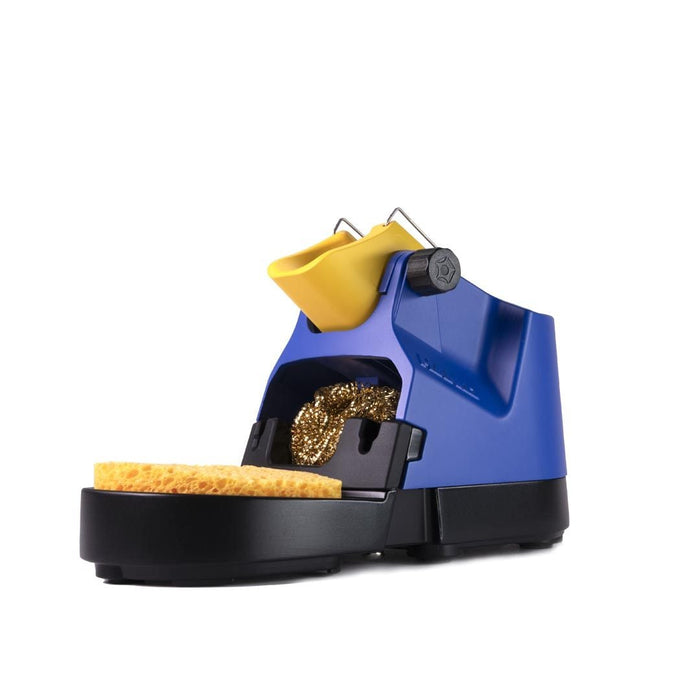

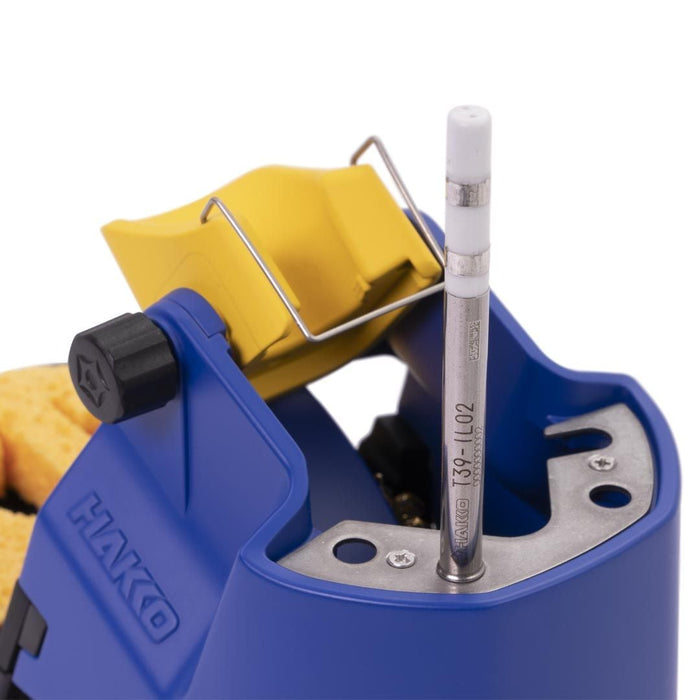

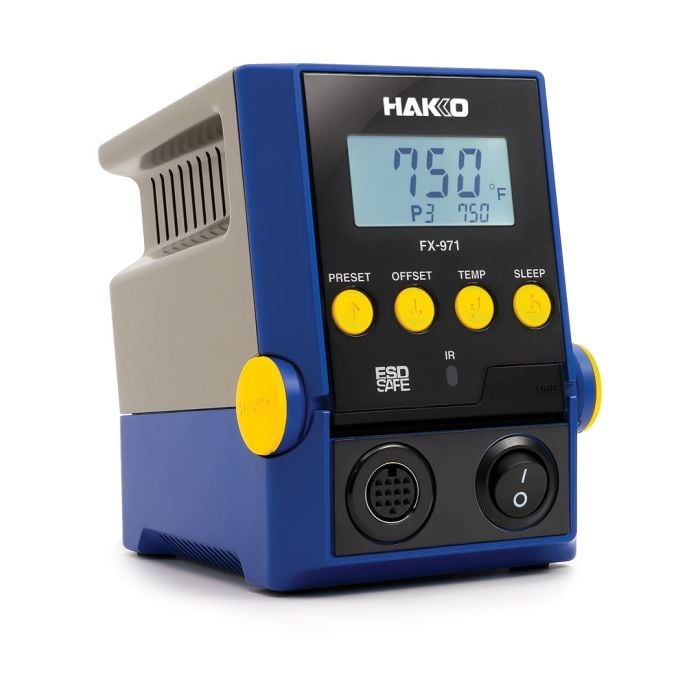

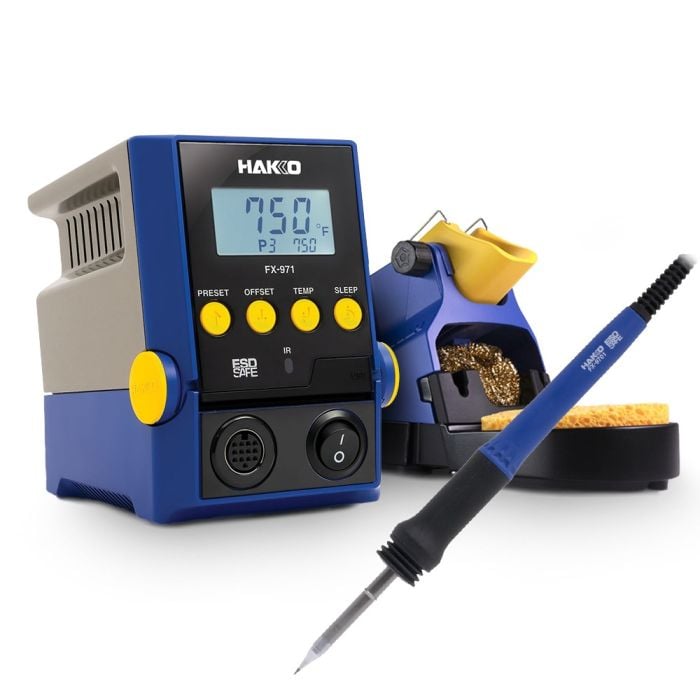

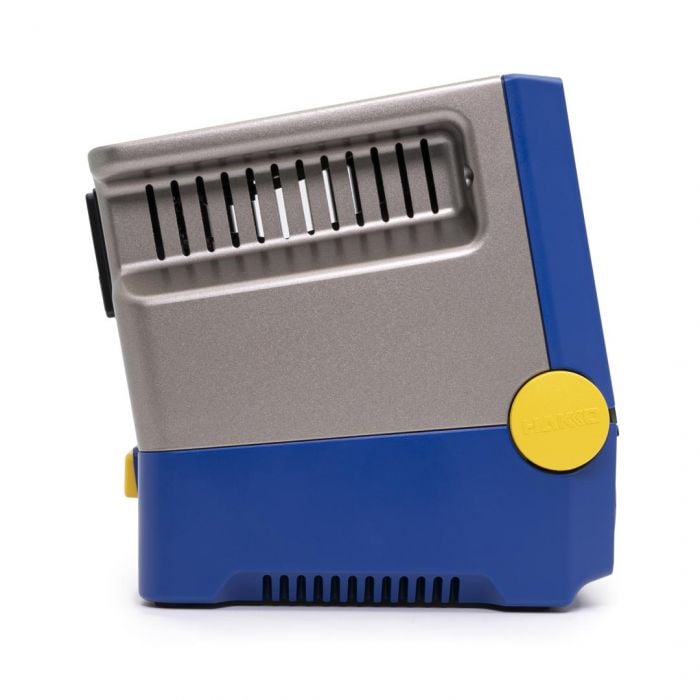

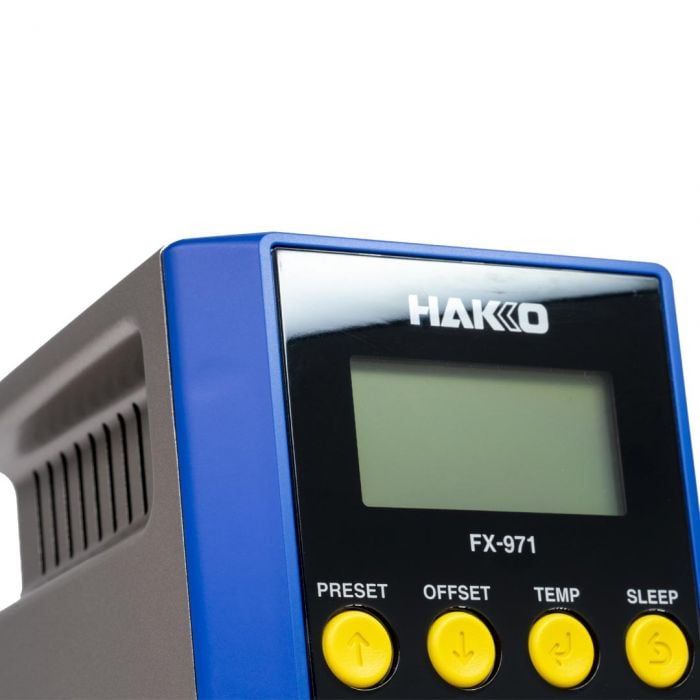

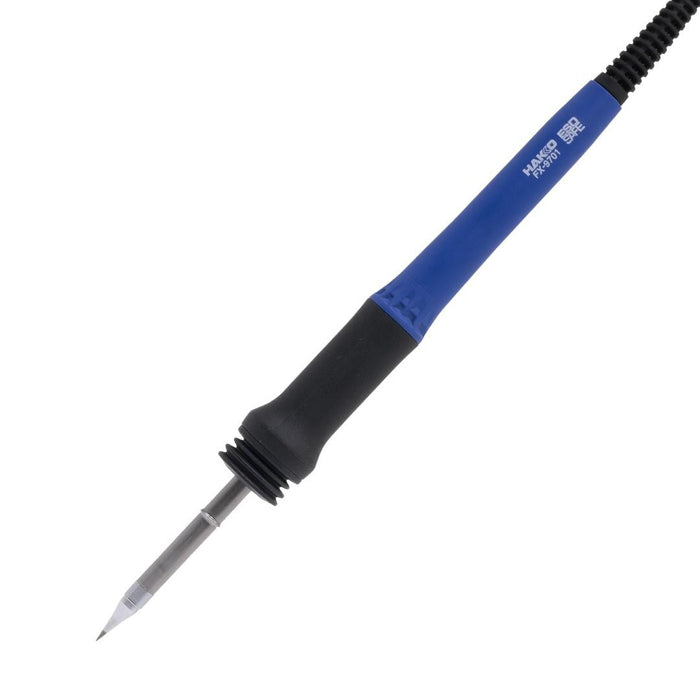

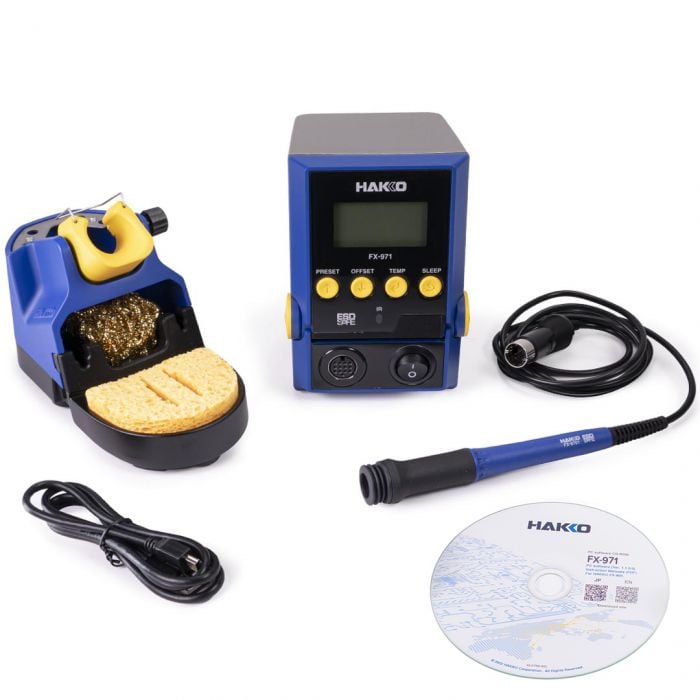

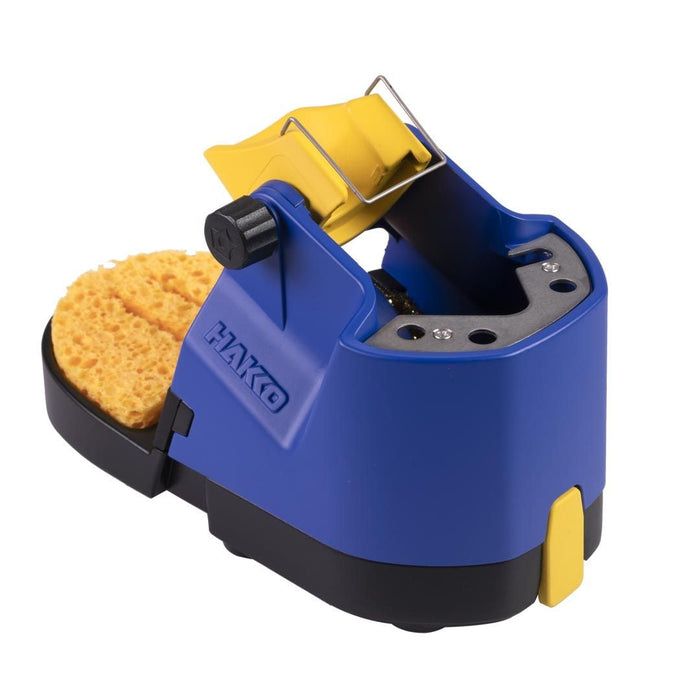

A 100W station with a minimal footprint to maximize your workbench space, both a standard and micro handpiece, and an all-new holder for removing and storing tips. This new designed soldering station provides operators with a 15-degree face tilt, large LCD, multi-button functionality, and connects to the new Hakko Control Software. FX-971 is only compatible with the HAKKO CONTROL SOFTWARE V3 or higher. For a dual-port soldering station please see the new FX-972 Dual-Port Soldering Station. Request a Free DemoDownload Software
Specifications
| Model Name | FX-971 |
| Part No. | FX971-010 |
| Power Consumption | 100W 120V |
| Temperature Range | 50° - 450°C (120° - 850°F) |
| Temperature Stability | ±3°C (±5°F) |
| Output Voltage | 24V |
| Outer Dimensions | 93(W) x 126(H) x 133(D) mm(3.7 x 5 x 4.8 in.) |
| Weight | 2.6 lb. (1.2 kg.) |
| Country of Origin | MYS |
| Model Number | FX-9701 |
| Tip-to-Ground Resistance | < 2 OHMS |
| Tip-to-Ground Potential | < 2mV |
| Length of Cord | 3.9 ft. (1.2 m) |
| Total Length (w/o cord) | 188 mm (7.4 in.) |
| Weight (w/o cord) | 31g (0.067 lb./1.1 oz.) with T39-D24 tip |
