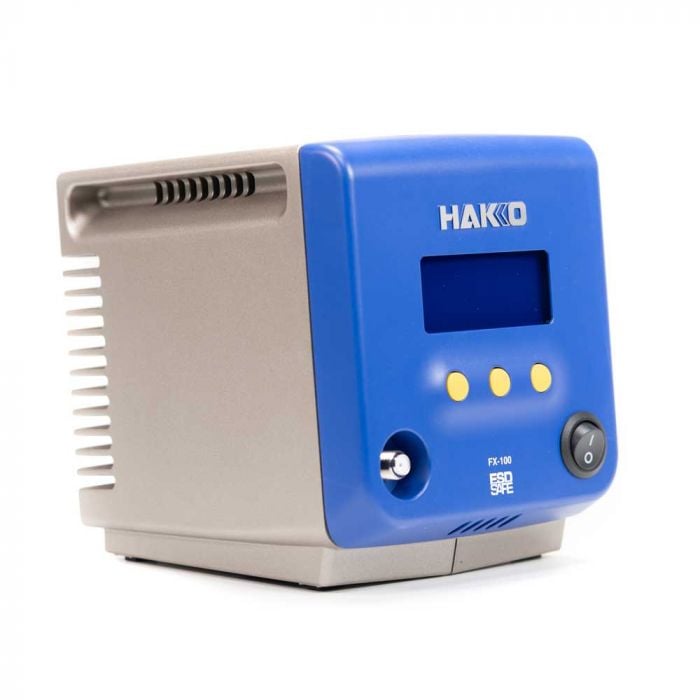

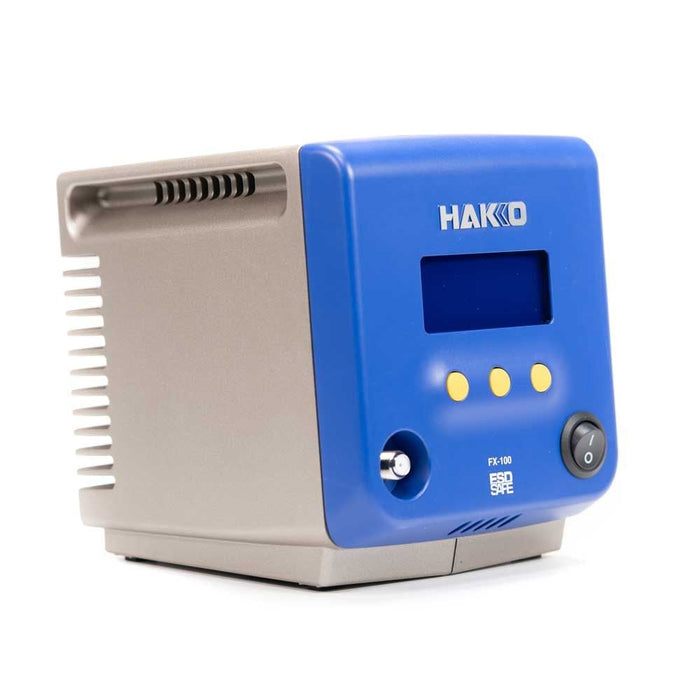

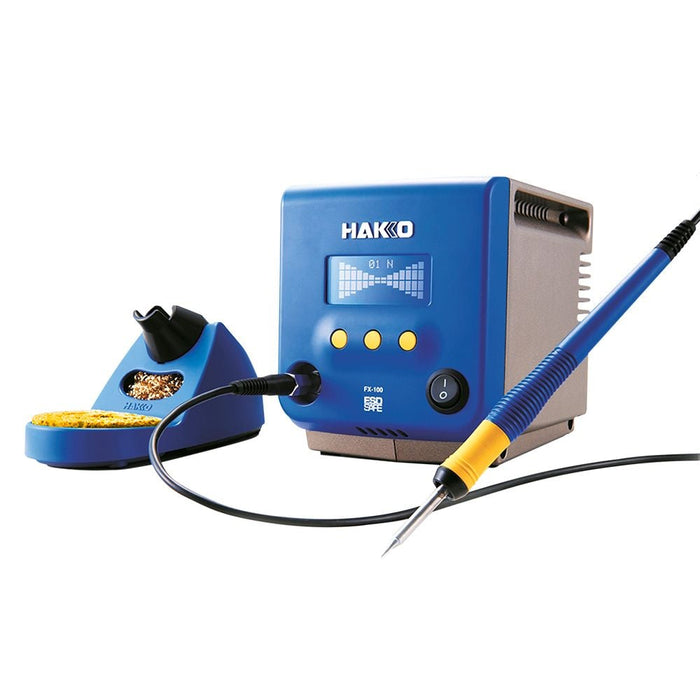

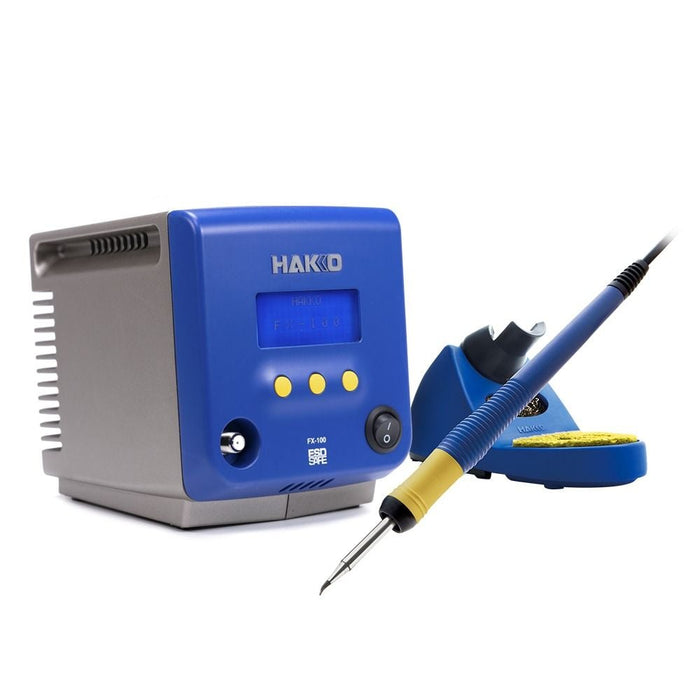

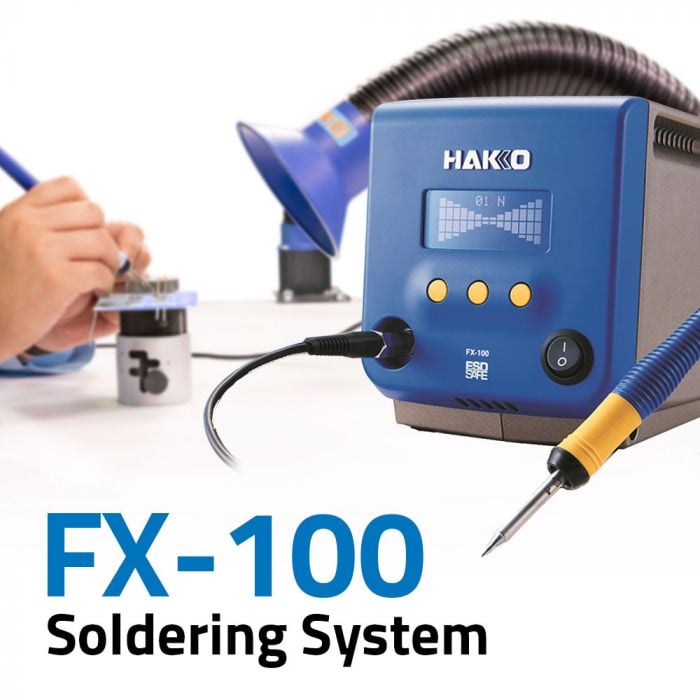

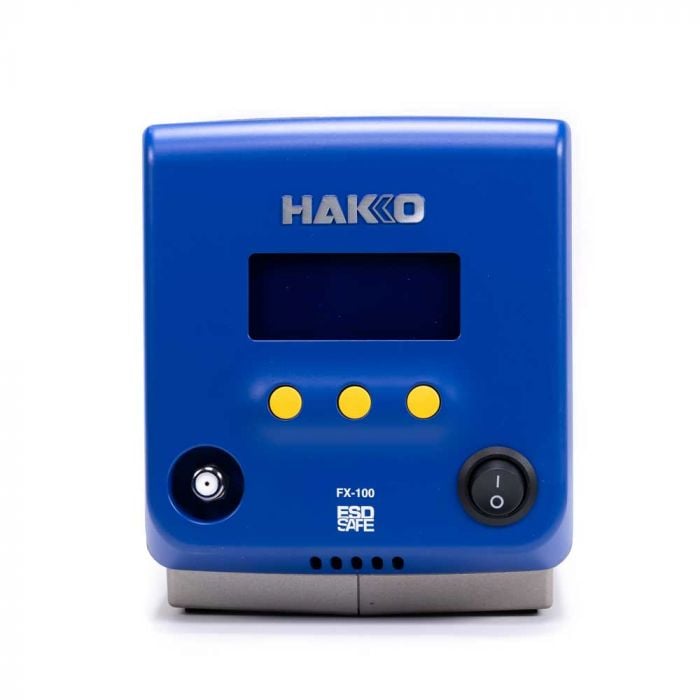

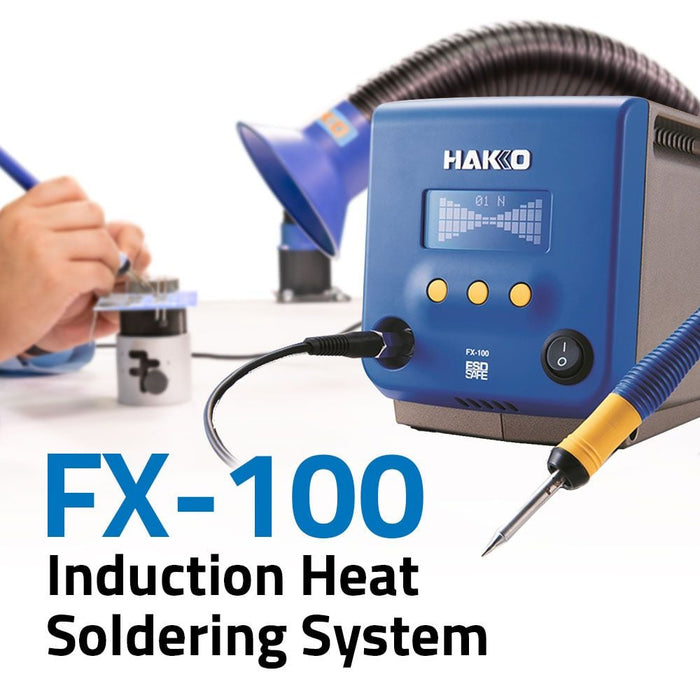

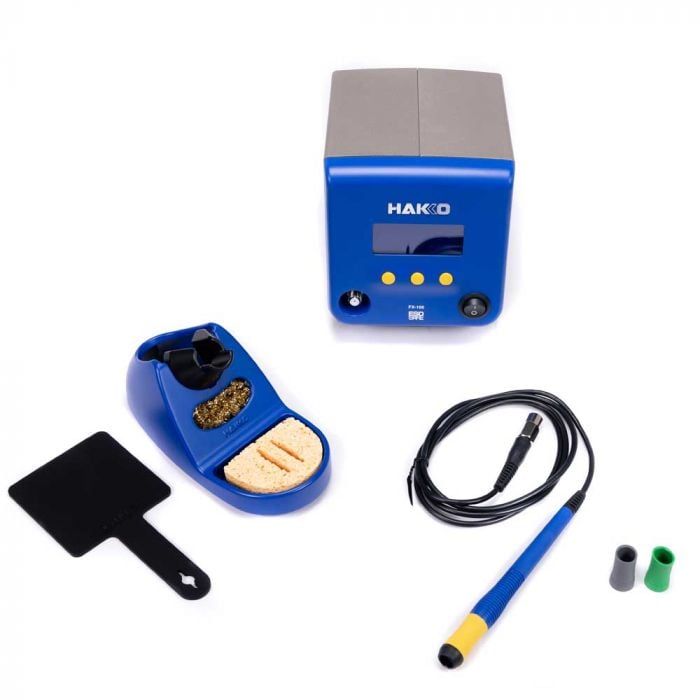

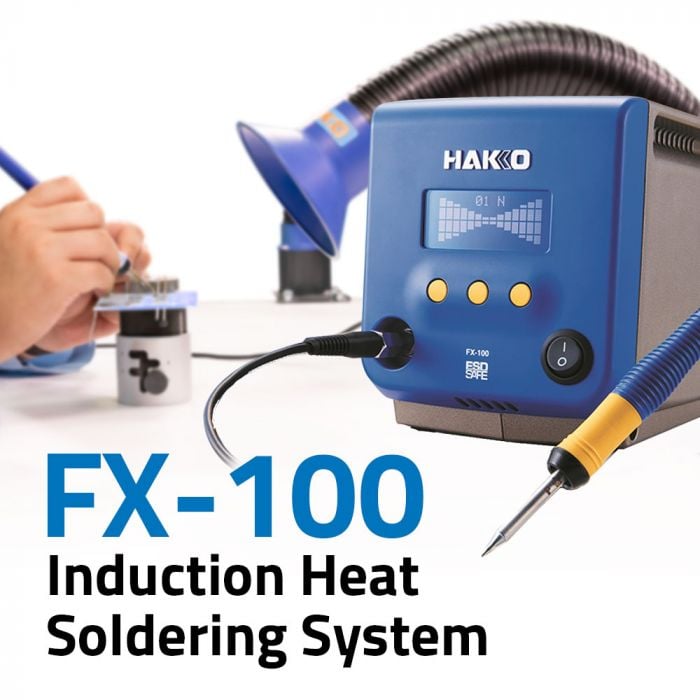

FX-100 RF Induction Heating Soldering System
Text block
SKU FX100-04
by Hakko
Save $39.07
Original price
$625.57
Original price
$625.57
-
Original price
$625.57
Original price
$625.57
Current price
$586.50
$586.50
-
$586.50
Current price
$586.50
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
RF induction heat technology at its best. Designed for fast, reliable, accurate, efficient, and ESD safe soldering. No calibration required, just turn it on and in just seconds you’ll be ready to go. Boost control delivers a boost of extra power when you need it. Its compact design minimizes the workbench footprint. Request a Free Demo
Specifications
| Model Name | FX-100 |
| Part No. | FX100-04 |
| Voltage | 120V |
| Power Consumption | 85W |
| Temperature Stability & Accuracy | Meets or exceeds IPC J-STD-001, ANSDI ESD S20.20 and older MIL-STD's |
| Output Power | 50W |
| Output Frequency | 13.56 MHz |
| Country of Origin | JPN |
| Weight | 6.6 lb. (3 kg.) |
| Dimension (W x H x D) | 5.0 x 5.9 x 6.6 in. (127 x 150 x 167 mm) |

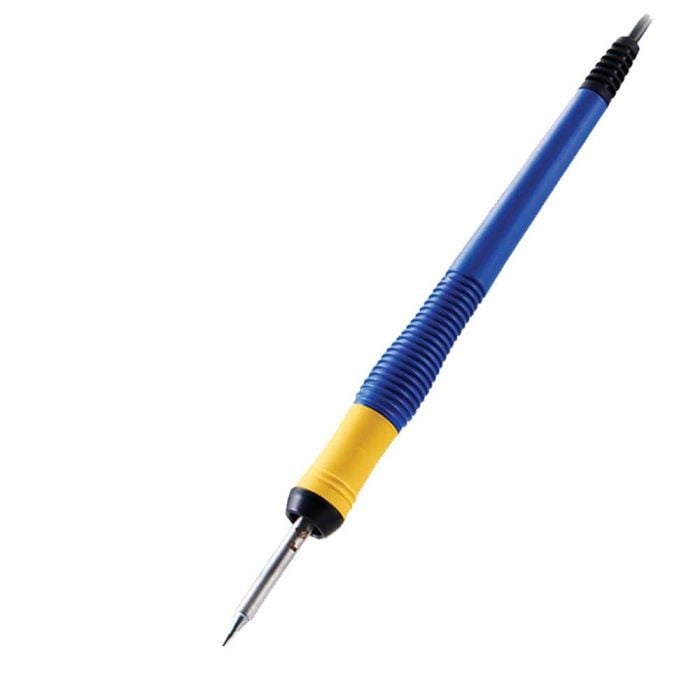

| Model Number | FX-1001 |
| Part Number | FX1001-51 |
| Tip-to-Ground Resistance | < 2 OHMS |
| Tip-to-Ground Potential | < 2mV |
| Length of Cord | 4.3 ft. (1.3 m) |
| Total Length (w/o cord) | 7.5 in. (190 mm) w/T31-02D24 tip |
| Weight (w/o cord) | 0.07 lb. (31g) w/ T31-02D24 tip |
| Tips (not included) | T31-00 Series = 895°F (480°C)T31-01 Series = 840°F (450°C)T31-02 Series = 750°F (400°C)T31-03 Series = 660°F (350°C) |
| Reach | 4.3 ft. (1.3m) |
| Heating Element | High Frequency Induction-Type |
