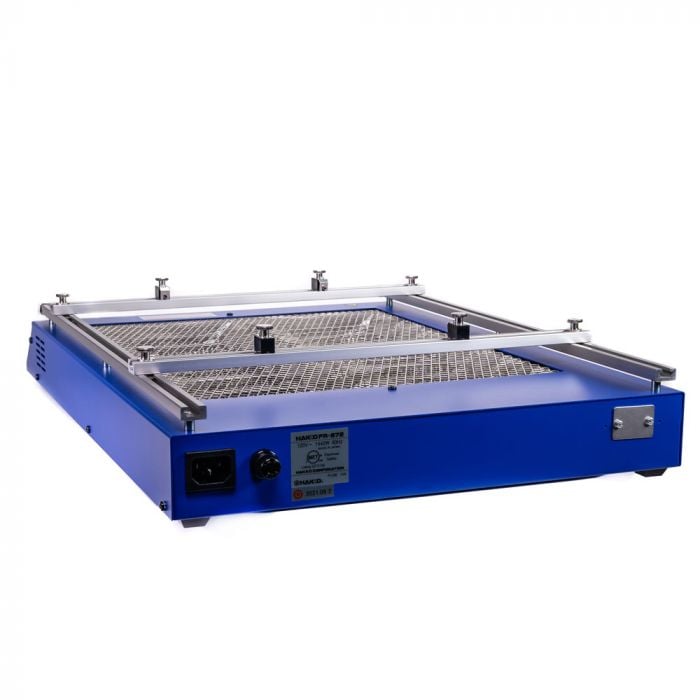

FR-872 IR PCBoard Preheater
Text block
SKU FR872-03
by Hakko
Save $111.19
Original price
$1,779.57
Original price
$1,779.57
-
Original price
$1,779.57
Original price
$1,779.57
Current price
$1,668.38
$1,668.38
-
$1,668.38
Current price
$1,668.38
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

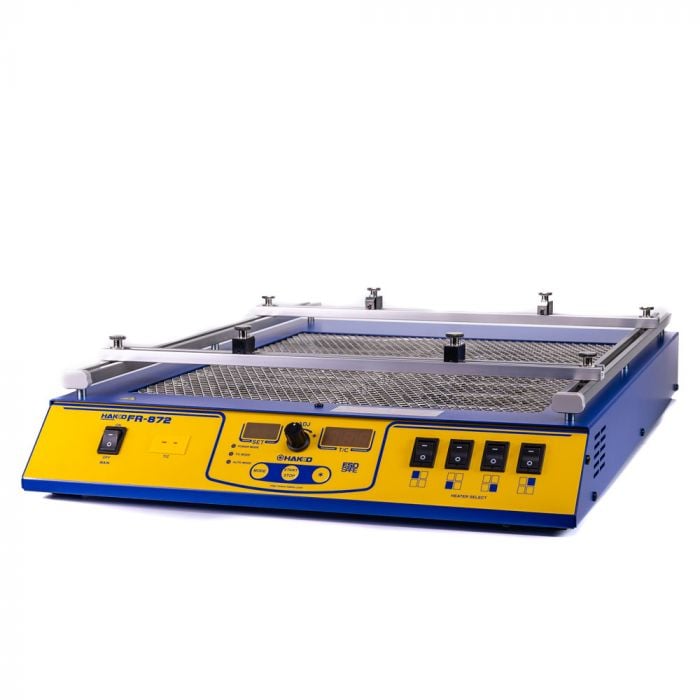

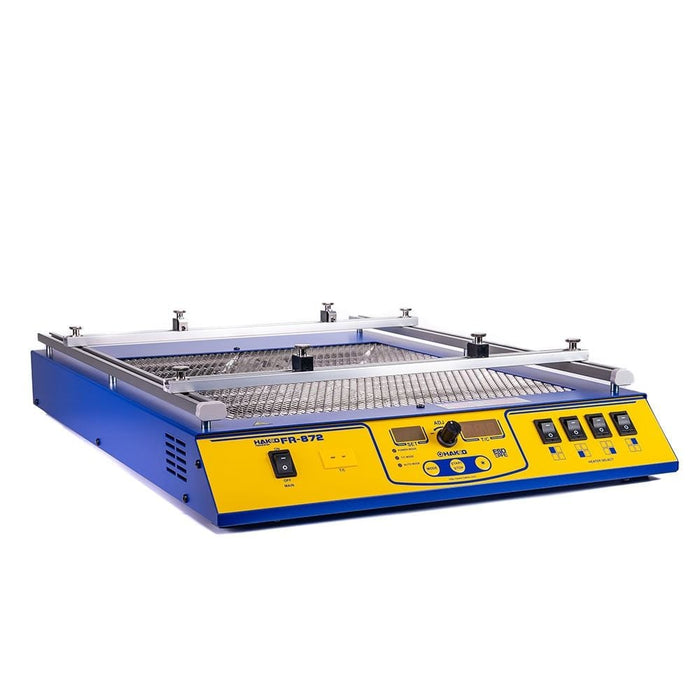

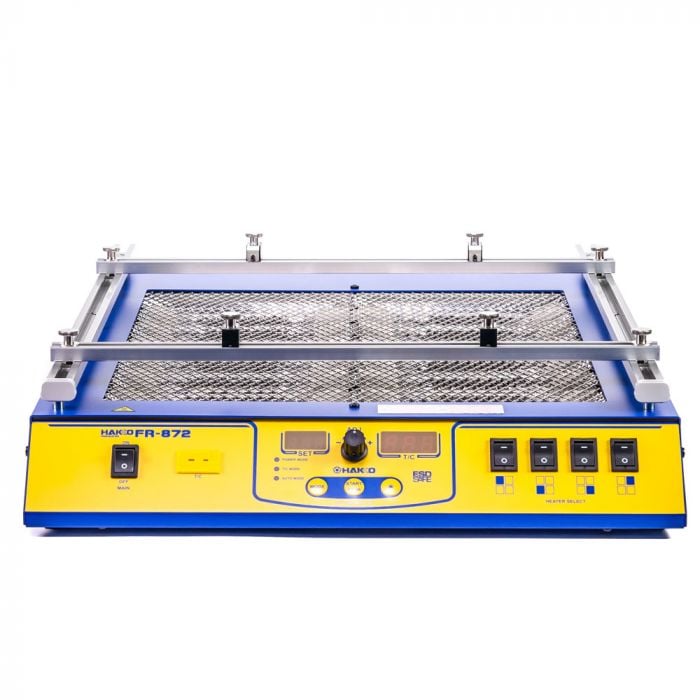

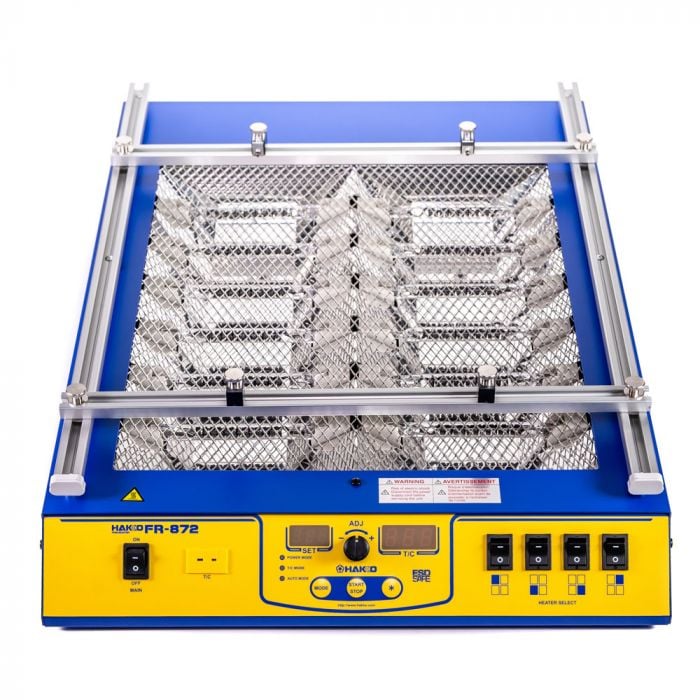

The Hakko FR-872 Infrared 4-Bank sleek low profile, bench top PC Board Preheater is especially useful on medium to high-mass board assemblies. Request a Free Demo
Specifications
| Model Name | FR-872 |
| Part No. | FR872-03 |

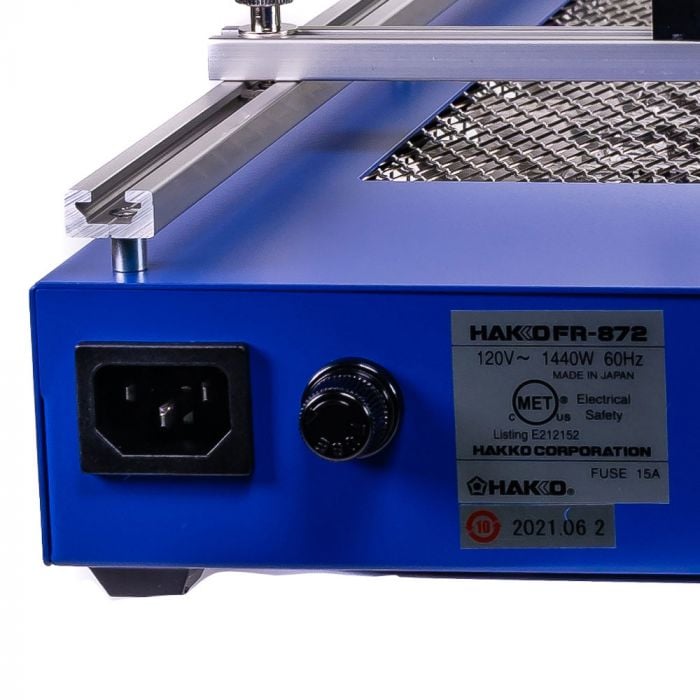

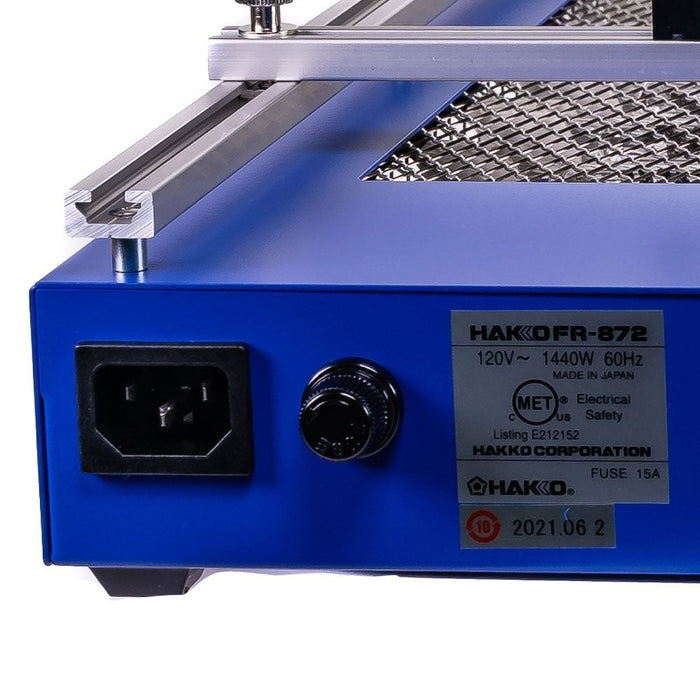

| Input Voltage | 120 VAC / 60 Hz |
| Power Consumption | 1440W |
| Heater Area (W x D) | 11.3 x 13.8 in. (286 x 350 mm) |
| Effective Heating Area (W x D) | 8.8 x 10.5 in. (224 x 266mm) |

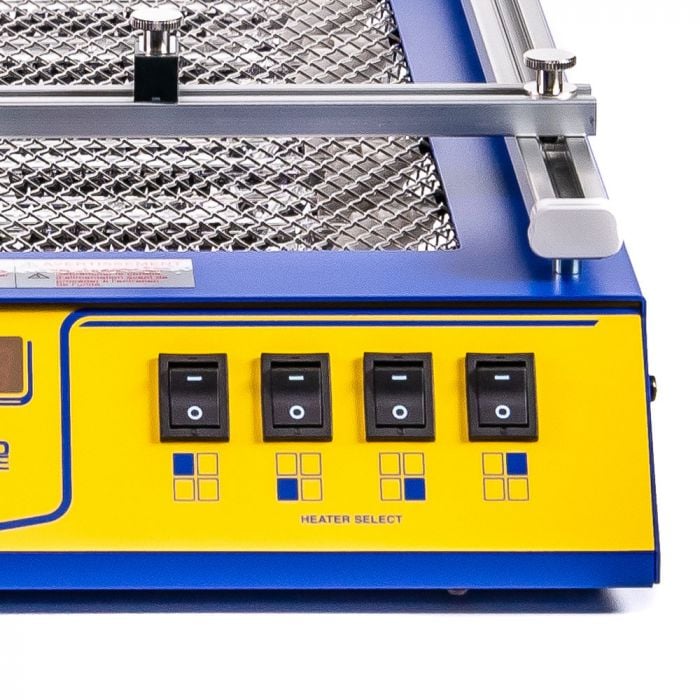

| Heating Zones | 4 |
| Maximum Board Depth | 16.9 in. (430 mm) |

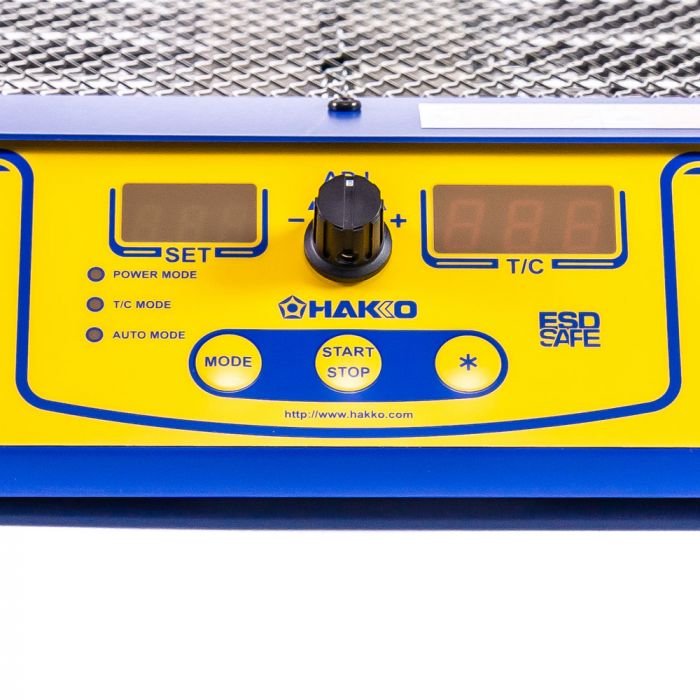

| Operating Modes | External T/C Control - ManualExternal T/C Control - Automatic% of Power - Manual% of Power - Automatic |
| External T/C Range | 122 - 392°F (50 - 200°C) |
| External T/C Accuracy & Stability | ±9°F (±5°C) |
| Power Range | 0 - 100% (Div of 1%) |
| Thermocouple Inputs | (1) Type K |
| Heater Type | High Efficiency Carbon Filament IR |
| Heater Control | Microprocessor / PID |
| Heater Lamp MTBF | 2100 hours |
| External Connections1 | 1 - integrates with FM-206 |
| Weight | 12.4 lb. (5.6 kg) |
| Dimensions (W x H x D) | 14.2 x 3.8 x 21.1 in.360 x 97 x 535 mm |
| ESD Safe | Yes |
