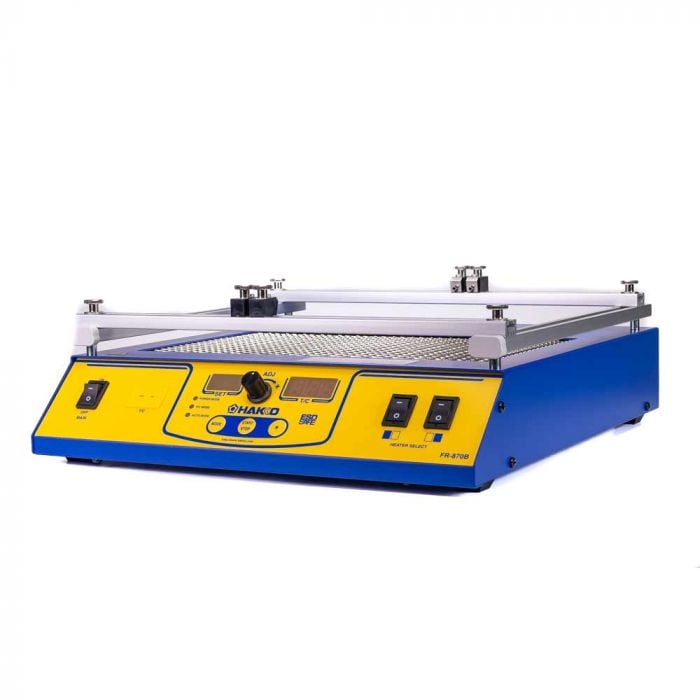

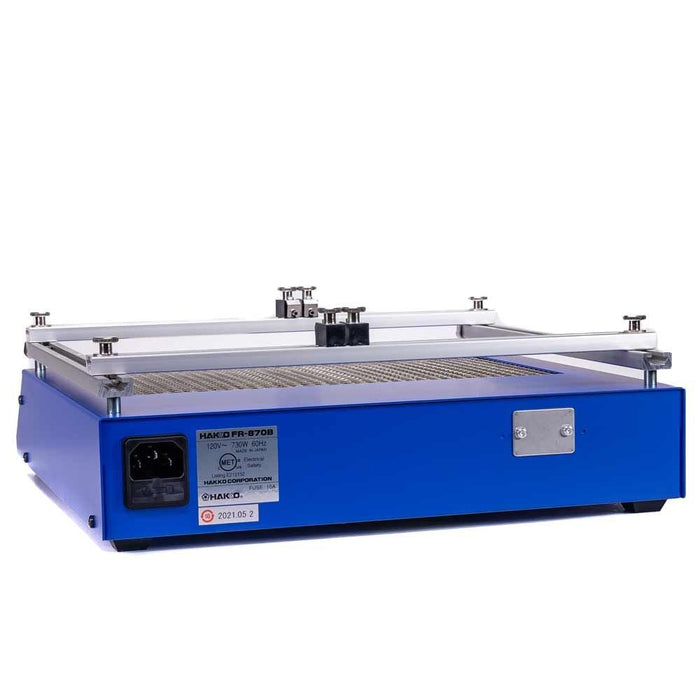

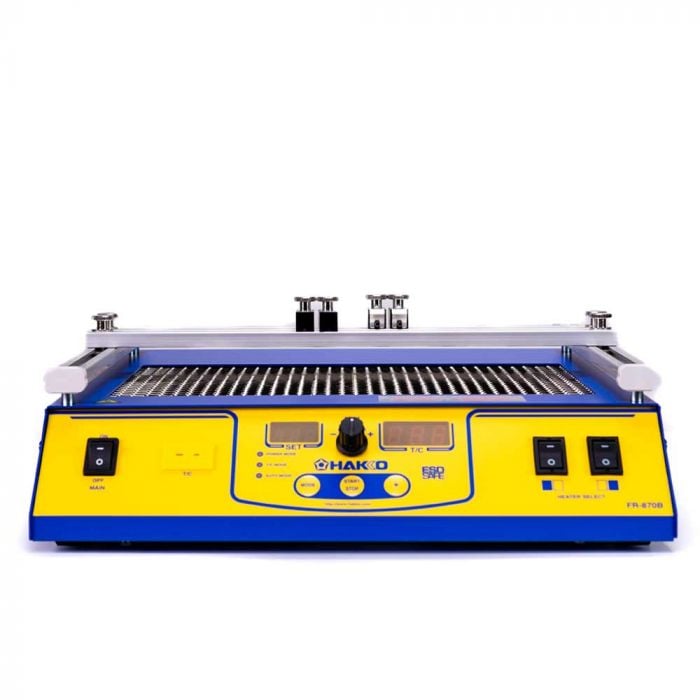

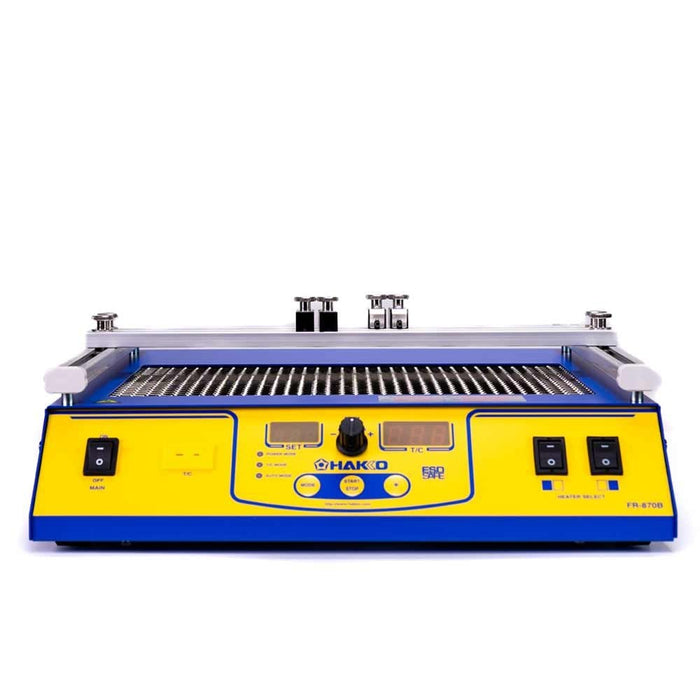

FR-870B IR PCBoard Preheater
Text block
SKU FR870B-04
by Hakko
Save $70.65
Original price
$1,130.27
Original price
$1,130.27
-
Original price
$1,130.27
Original price
$1,130.27
Current price
$1,059.62
$1,059.62
-
$1,059.62
Current price
$1,059.62
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

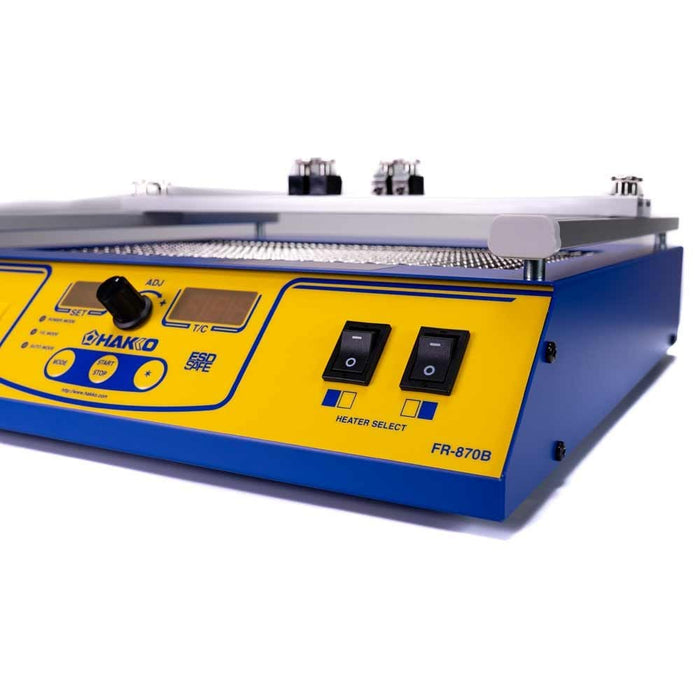

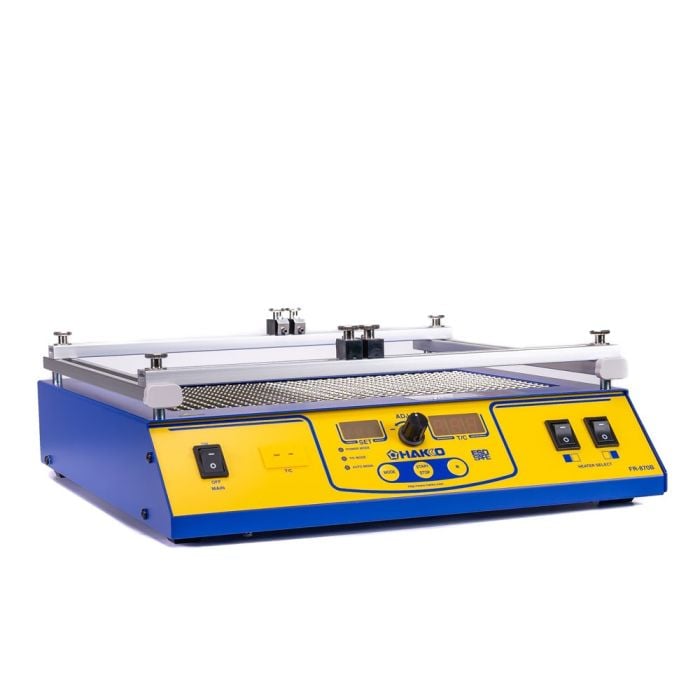

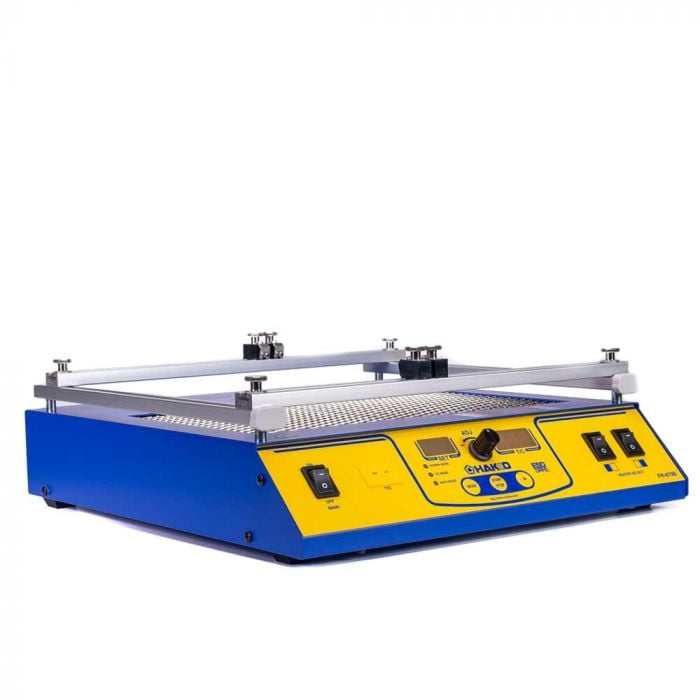

The Hakko FR-870B Infrared 2-Bank bench-top board heater is designed to elevate the temperature of the printed circuit board assemblies so that components on them can be easily soldered and desoldered. This tool is particularly useful when soldering Pb-free assemblies. Request a Free Demo
Specifications
| Model Name | FR-870B |
| Part No. | FR870B-04 |

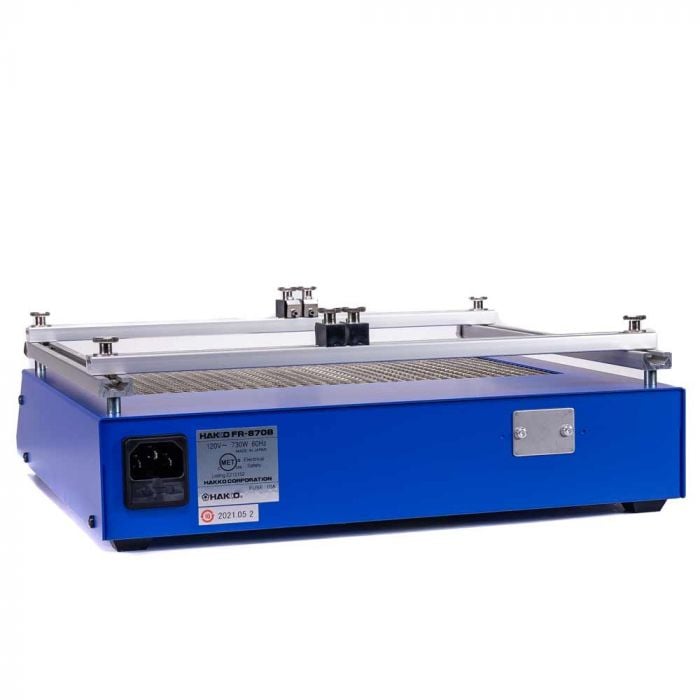

| Input Voltage | 120 VAC 50/60 Hz |
| Power Consumption | 730W |

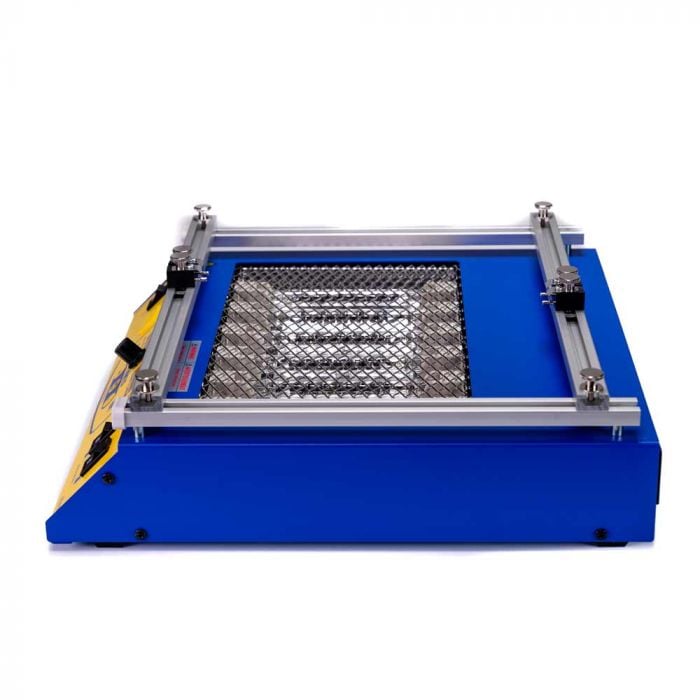

| Board Capacity | 9.8 x 5.5 in. (248 x 140 mm) |
| Effective Heating Area (W x D) | 7.5 x 3.2 in. (190 x 80 mm) |
| Maximum Board Depth | 8.7 in. (220 mm) |

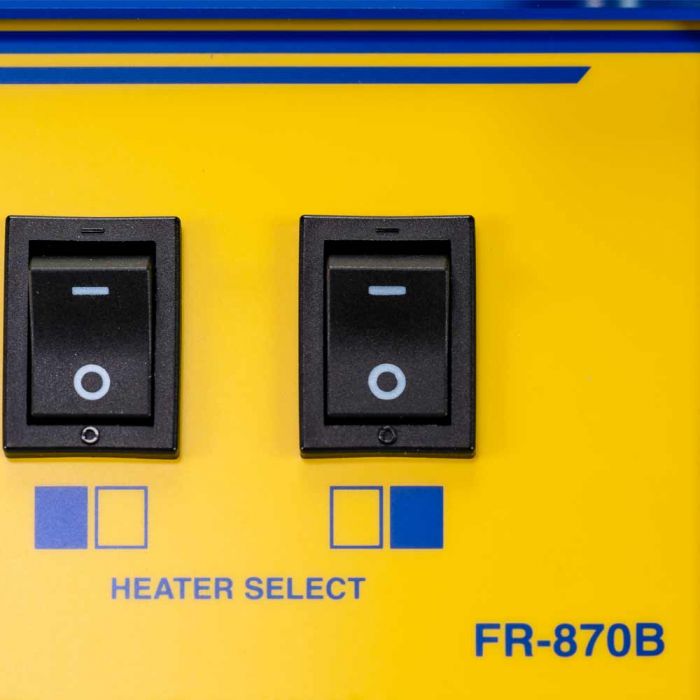

| Heating Zones | 2 |

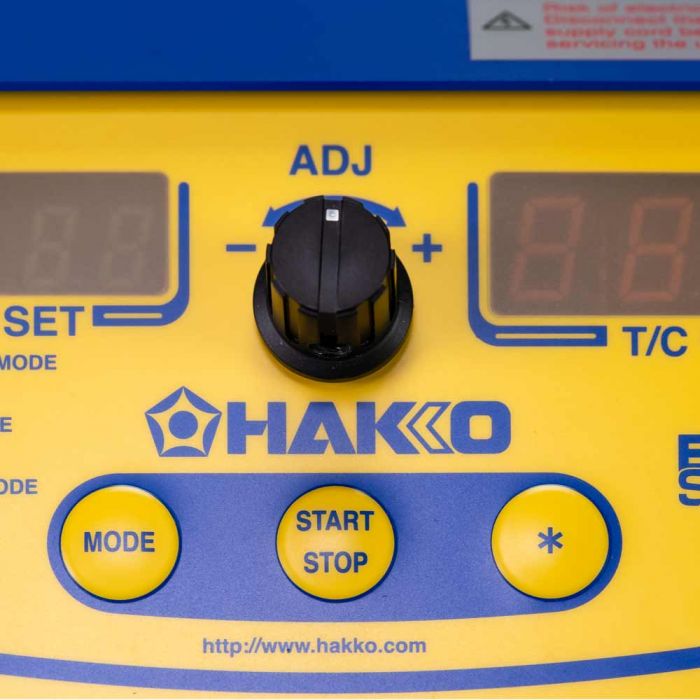

| Operating Modes | Manual - PowerManual - ThermocoupleAutomatic - PowerAutomatic - Thermocouple |
| External T/C Range | 122 - 392°F (50 - 200°C) |
| External T/C Stability | ±9°F (±5°C) |
| Power Range | 0 - 100% (1% increments) |
| T/C Inputs | 1 |

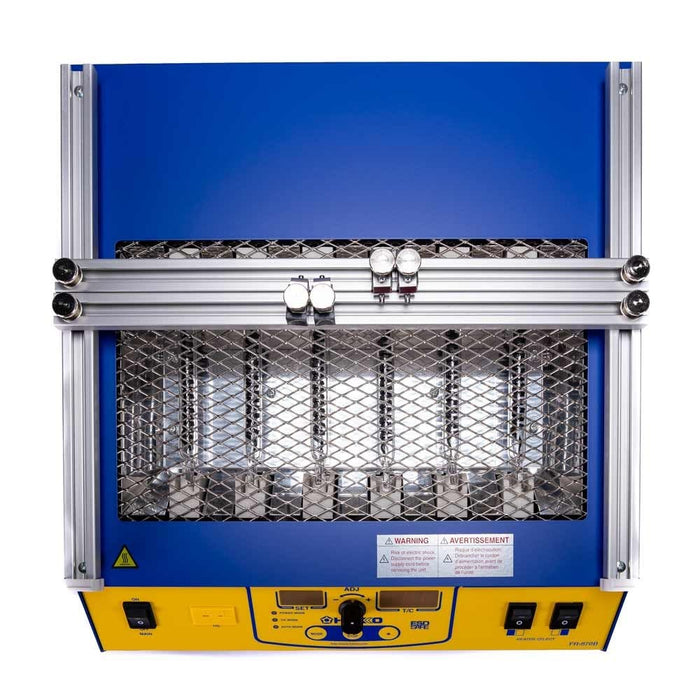

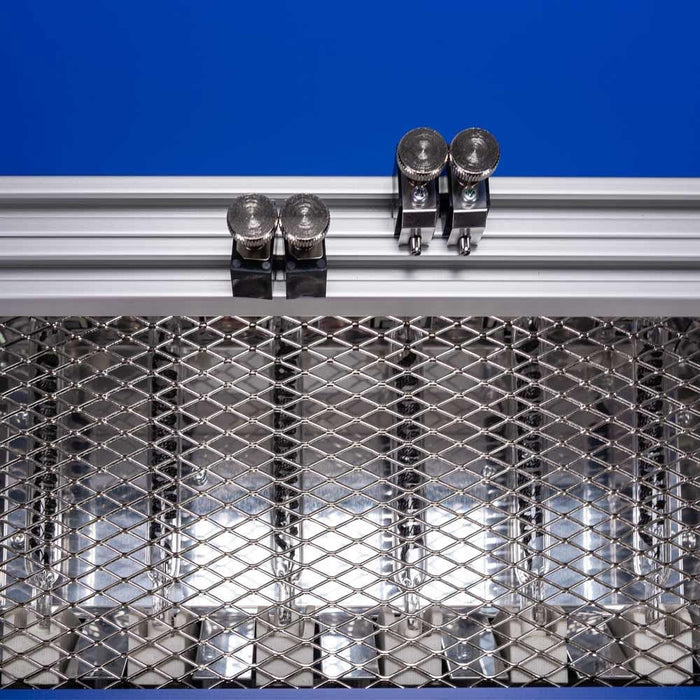

| Heater Type | High Efficiency Carbon Filament |
| Heater Control | Power - percentage-based Thermocouple - PID Control |
| Zones | 2 |
| Heater Lamp MTBF | ~2100 hours |
| External Connections1 | 1 - integrates with FM-206 |
| Weight | 7.1 lb. (3.2 kg) |
| Dimensions (W x H x D) | 11.7 x 3.9 x 12.2 in.296 x 100 x 311 mm |
| Shipping Weight | 10.5 lb. (4.77 kg) |
| Shipping Dimensions (W x H x D) | 16 x 8 x 16.7 in. (407 x 203 x 425 mm) |
| ESD Safe | Yes |
| Country of Origin | JPN |
