FR-870 PCBoard Preheater
Text block
SKU FR870-04
by Hakko
Sold out
Original price
$1,047.97
-
Original price
$1,047.97
Original price
$1,047.97
$1,047.97
-
$1,047.97
Current price
$1,047.97
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued by Hakko. It has been replaced by Hakko part FR-870B, which is not yet listed in our catalog.

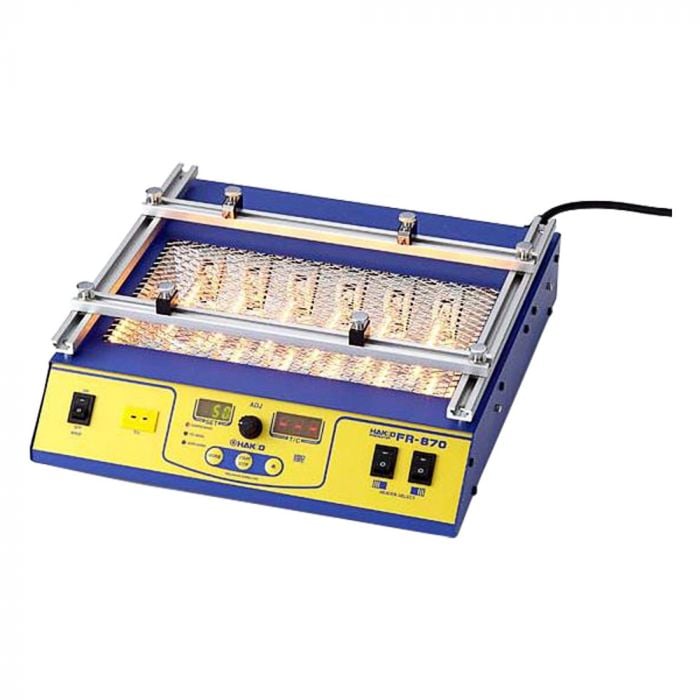

The Hakko FR-870 infrared 2-Bank bench-top board heater is designed to elevate the temperature of the printed circuit board assemblies so that components on them can be easily soldered and desoldered. This tool is particularly useful when soldering Pb-free assemblies. NOTE: The FR-870 has been replaced by the FR-870B Preheater Board.
Specifications
| Part Number | FR870-04 |
| Input Voltage | 120 VAC / 60 Hz |
| Power Consumption | 580W / 120VAC |
| Board Capacity | 248 x 140 mm |
| Heaters | Quartz Low Mass Infrared |
| Heater Control | Micro-processor / PID |
| Zones | 2 |
| Heater Area | 248 x 140 mm(9.7 x 5.5 in.) |
| Thermocouple Input | Type K |
| Operating Modes | External T/C Control - ManualExternal T/C Control - Automatic% of Power - Manual% of Power - Automatic |
| External T/C Range | 50 - 200°C(122 - 392°F) |
| Power Range | 0 - 100% (Div of 1%) |
| Outer Dimensions(W x H x D) | 290 x 100 x 308 mm(11.4 x 3.9 x 12.1 in.) |
| Weight | 3.4 kg (7.5 lb) |
| External Connections | 1 - integration with FR-803B or FM-206 |
