FR-860 Preheat Plate °C
Text block
SKU FR860-02C
by Hakko
Sold out
Original price
$1,322.97
-
Original price
$1,322.97
Original price
$1,322.97
$1,322.97
-
$1,322.97
Current price
$1,322.97
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued by Hakko. No direct replacement has been specified by the manufacturer.

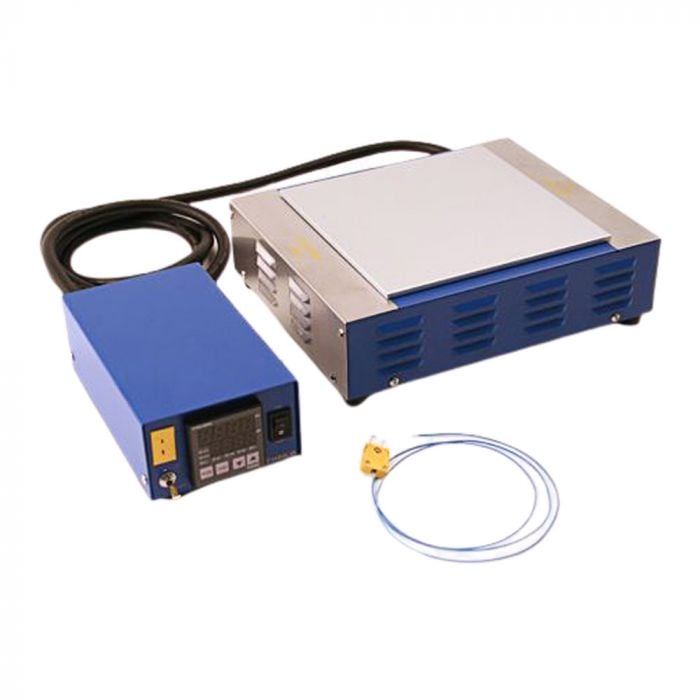

The Hakko FR-860 Preheat Plate is designed specifically for the electronics industry. The low profile and large, even heat surface across the plate provides fast, efficient heat.
Specifications
| Part No. | FR860-02x |
| Power Consumption | 600W / 120VAC 60Hz |
| Temperature Range | Room Temp - 260°C(Room Temp - 500°F) |
| Temperature Stability | ±5°C/±9°F |
| Temperature Control | Industrial Microprocessor |
| Temp. Control Modes | Plate or External Thermocouple |
| Thermocouple Inputs | 1 - Type K |
| Heating Surface Dimensions | 178 x 178 mm(7.0 x 7.0 in.) |
| Overall Dimensions(Plate - W x H x D) | 250 x 79 x 204 mm(9.8 x 3.1 x 8.0 in.) |
| Overall Dimensions(Controller - W x H x D) | 100 x 66 x 169 mm(3.9 x 2.6 x 6.7 in.) |
| Weight (w/o Cord) | 3.5 kg (7.9 lbs.) |
