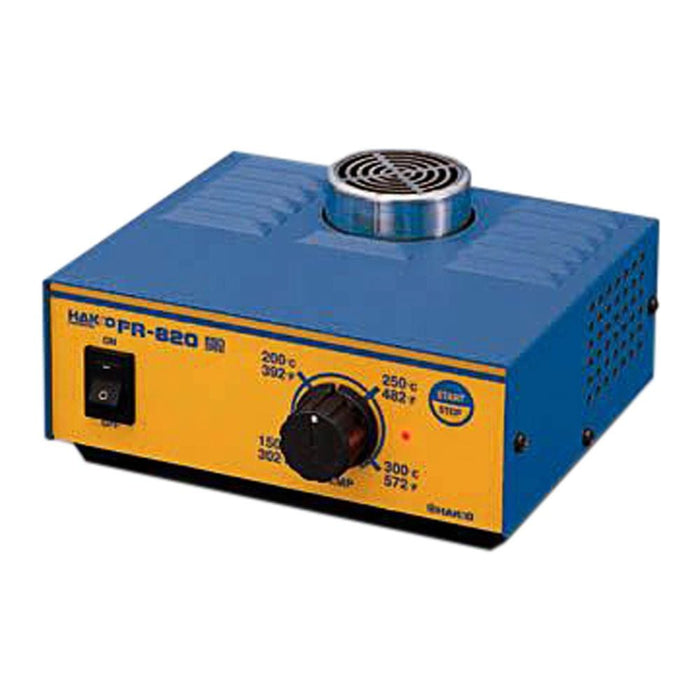

FR-820 Preheater
Text block
SKU FR820-02
by Hakko
Sold out
Original price
$329.57
-
Original price
$329.57
Original price
$329.57
$329.57
-
$329.57
Current price
$329.57
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued by Hakko. No direct replacement has been specified by the manufacturer.
Hakko’s FR-820 is the compact, low cost solution to preheated printed circuit boards. The design features of the FR-820 deliver consistent heat to the bottom of the printed circuit board and is particularly beneficial when soldering lead-free assemblies.
Specifications
| Model Name | FR-820 |
| Power Consumption | 470W / 120VAC |
| Hot Air Temperature | 150°C - 300°C (302°F - 572°F) |
| Air Flow | 0.18 cu.m/min (6.35 cu.ft/min) |
| Outer Dimensions | 140(w) x 70(h) x 170(d) mm5.5(w) x 2.7(h) x 6.7(d) in. |
| Weight(w/o cord) | 600g (1.3 lbs) |
