FR811-SET Complete SMD Hot Air Rework System
Text block
SKU FR811-SET
by Hakko
Save $360.49
Original price
$5,767.37
Original price
$5,767.37
-
Original price
$5,767.37
Original price
$5,767.37
Current price
$5,406.88
$5,406.88
-
$5,406.88
Current price
$5,406.88
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

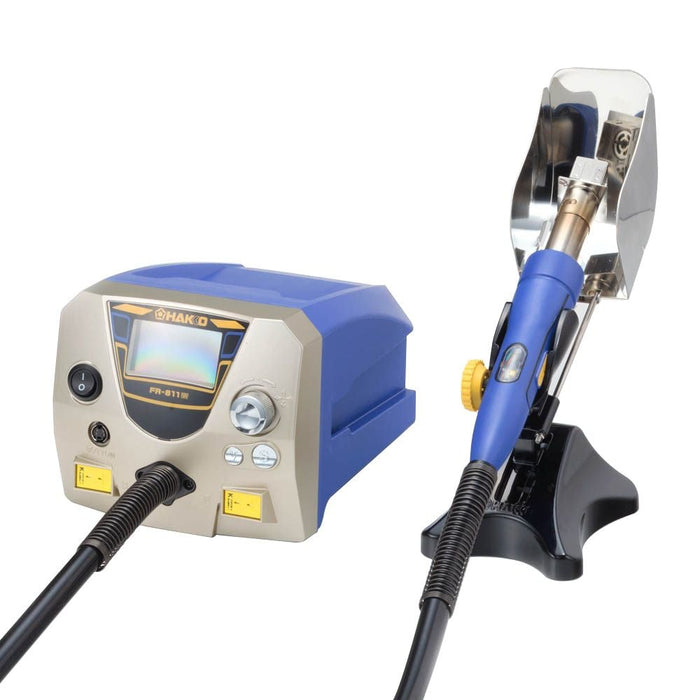

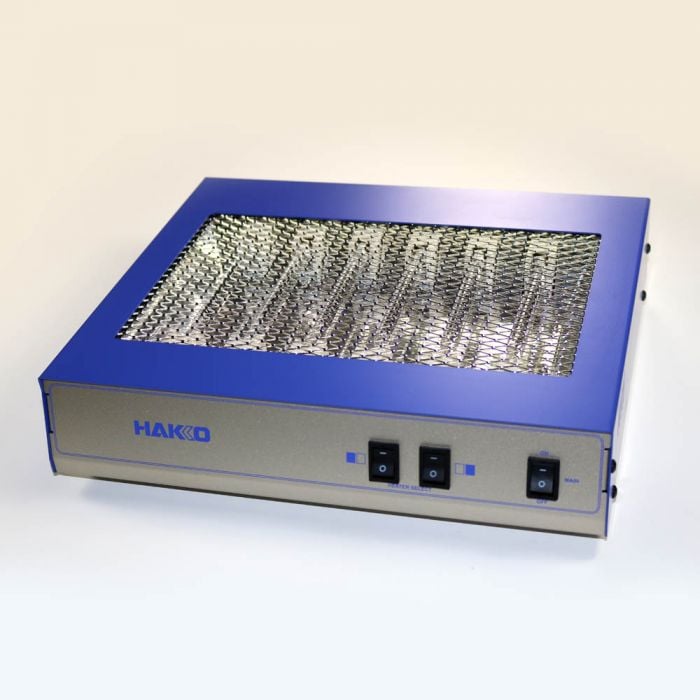

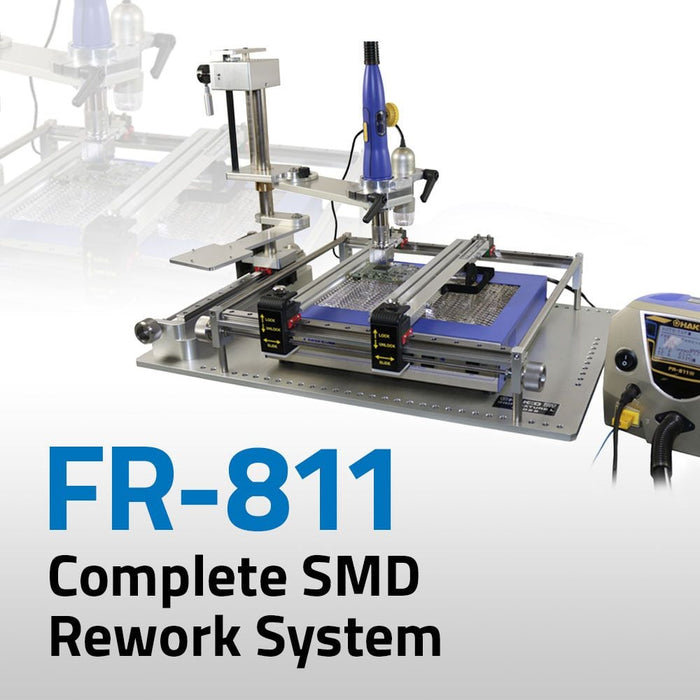

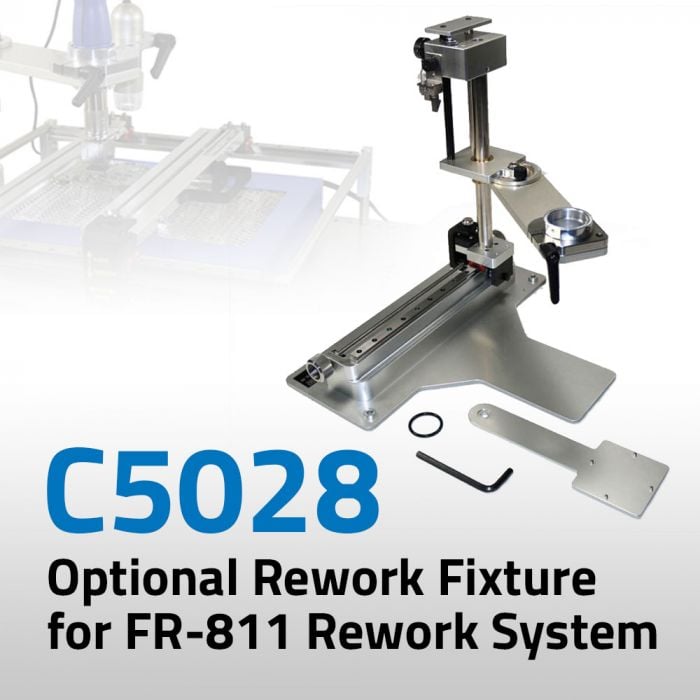

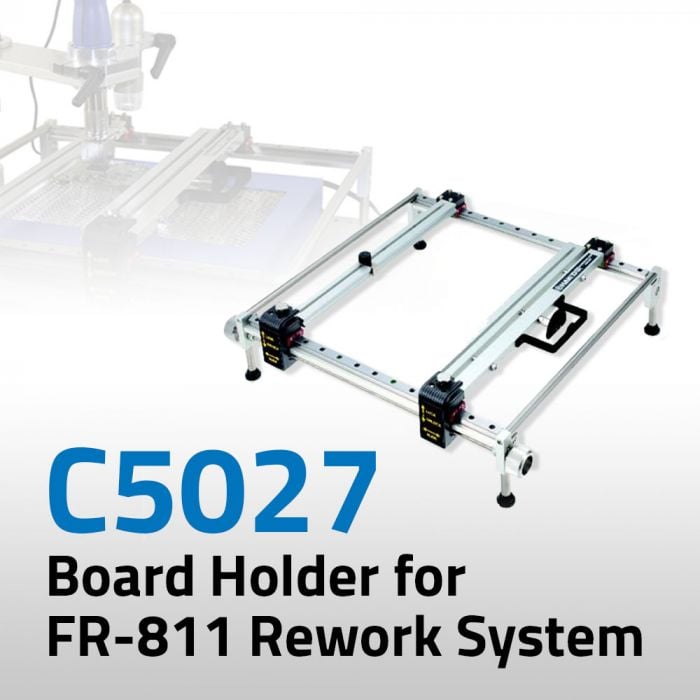

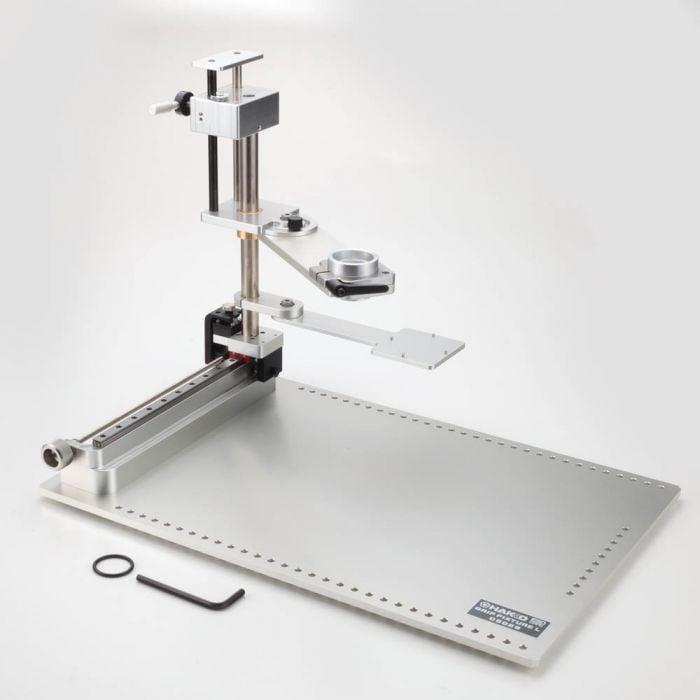

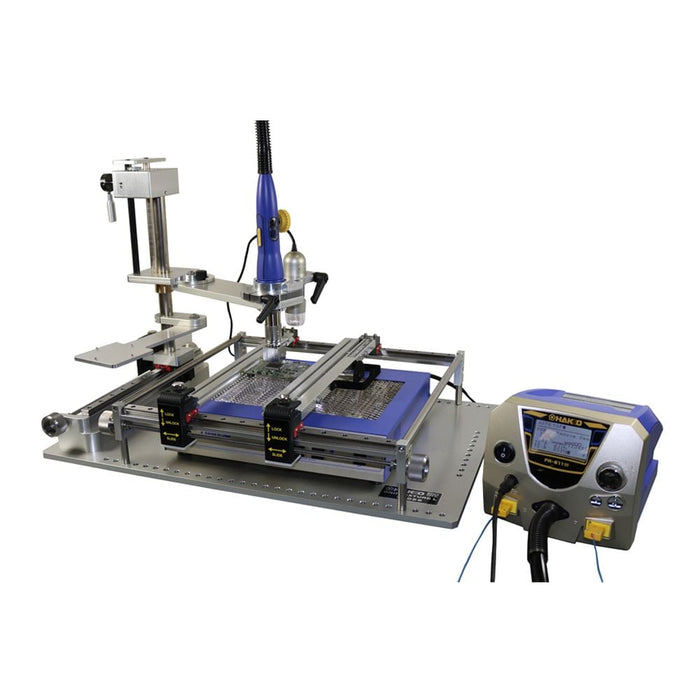

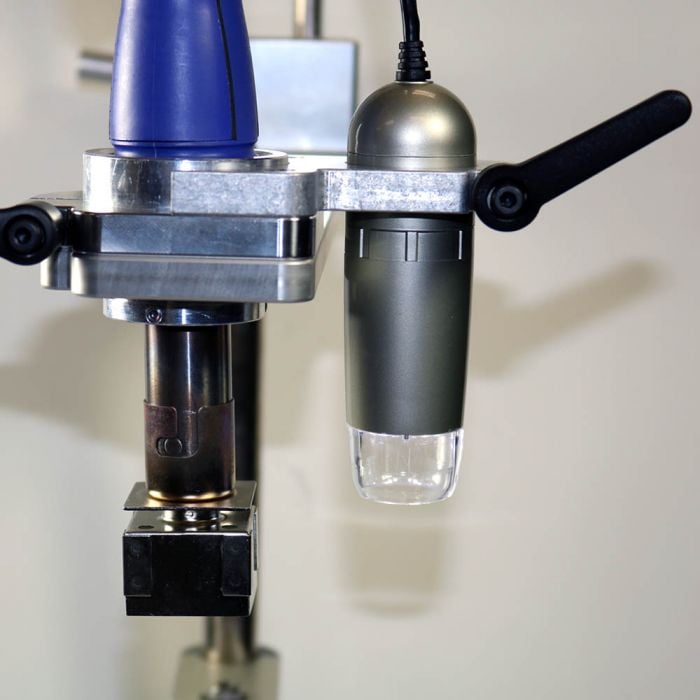

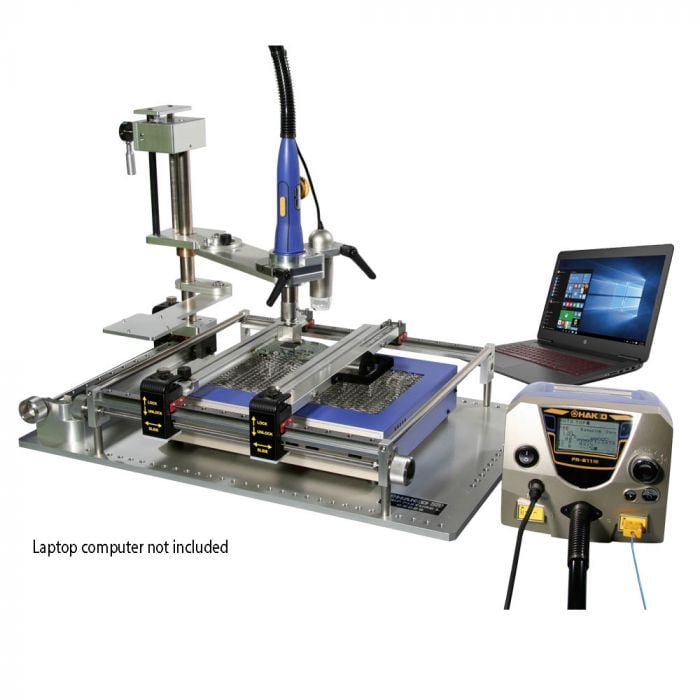

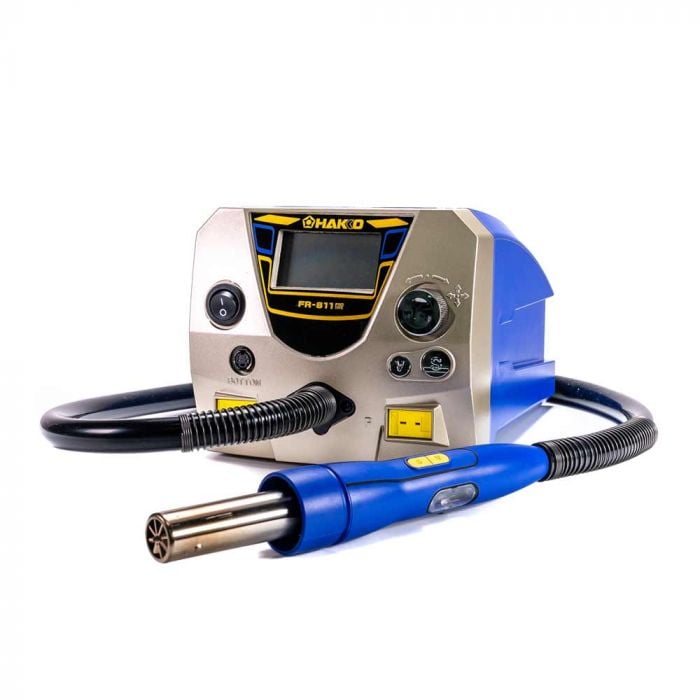

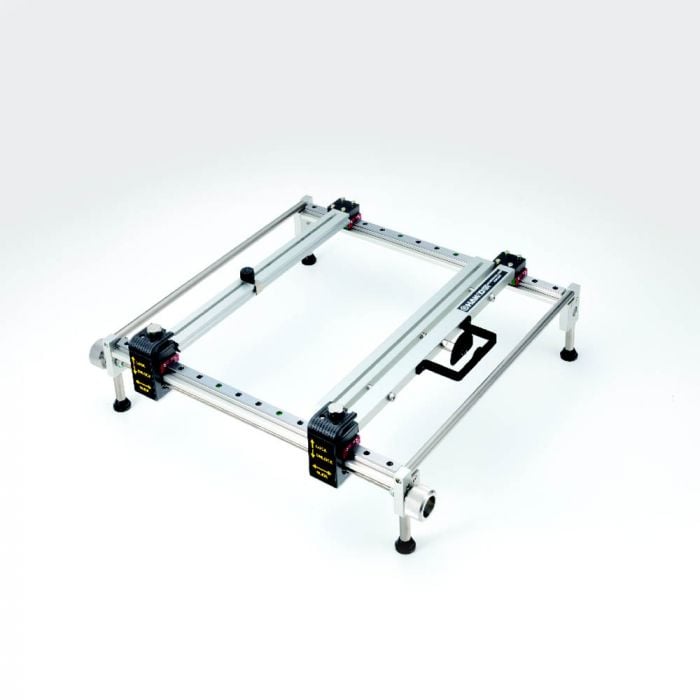

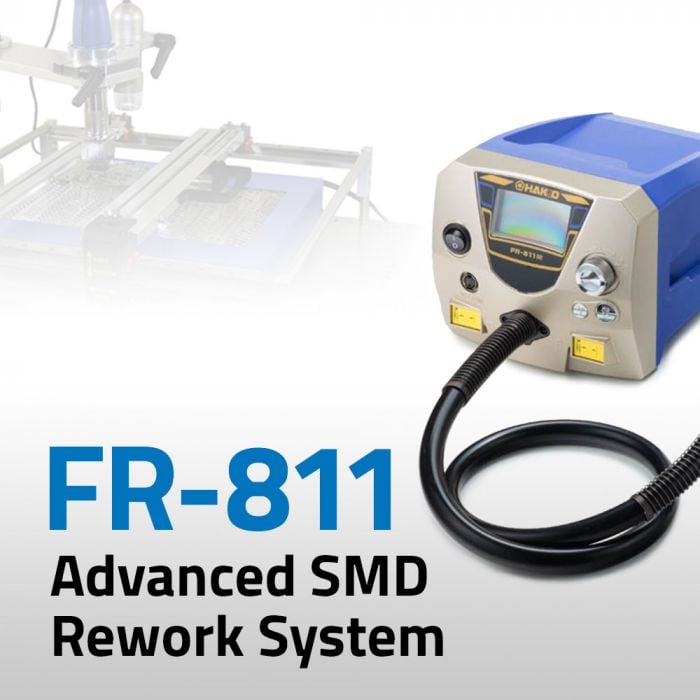

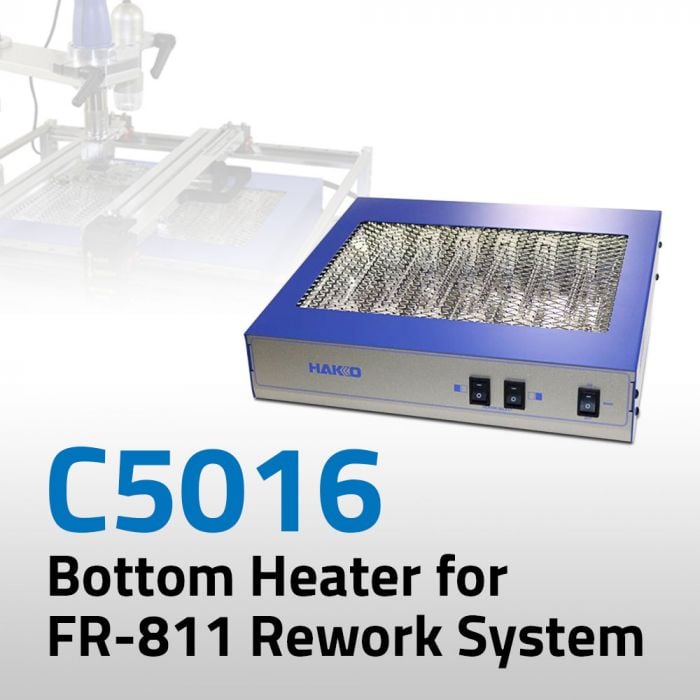

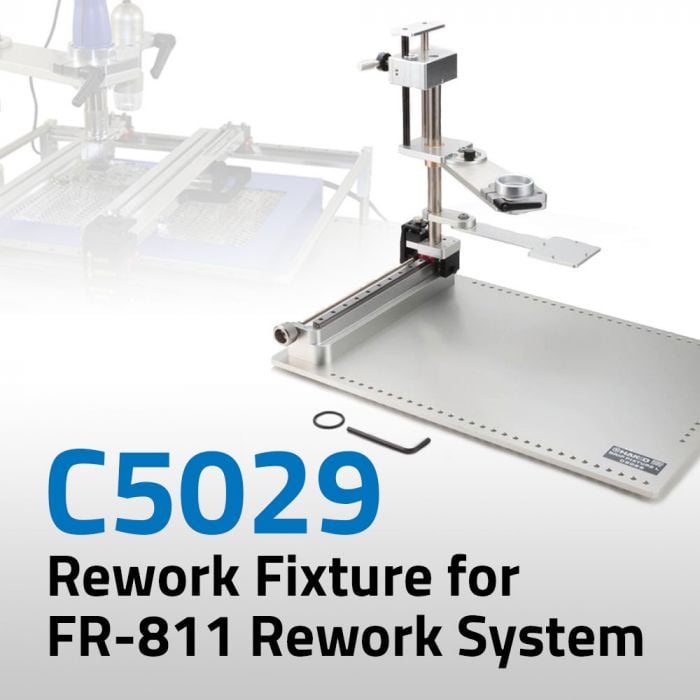

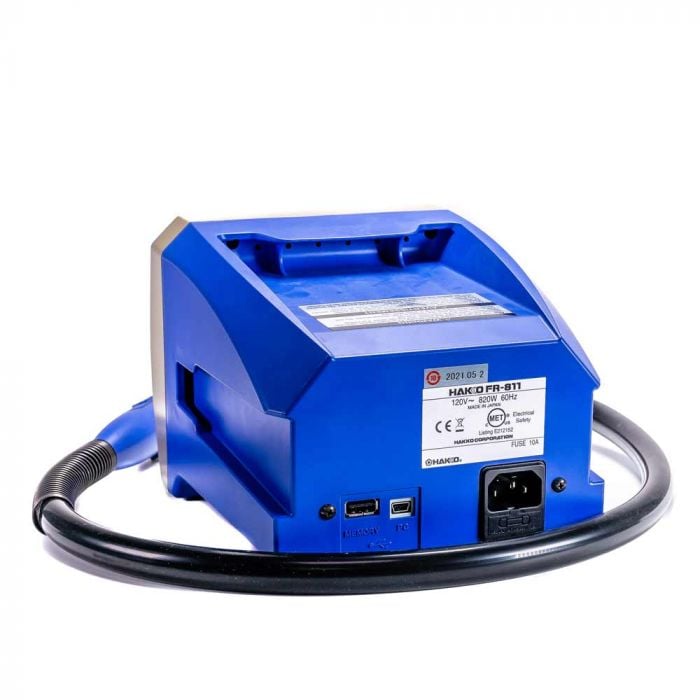

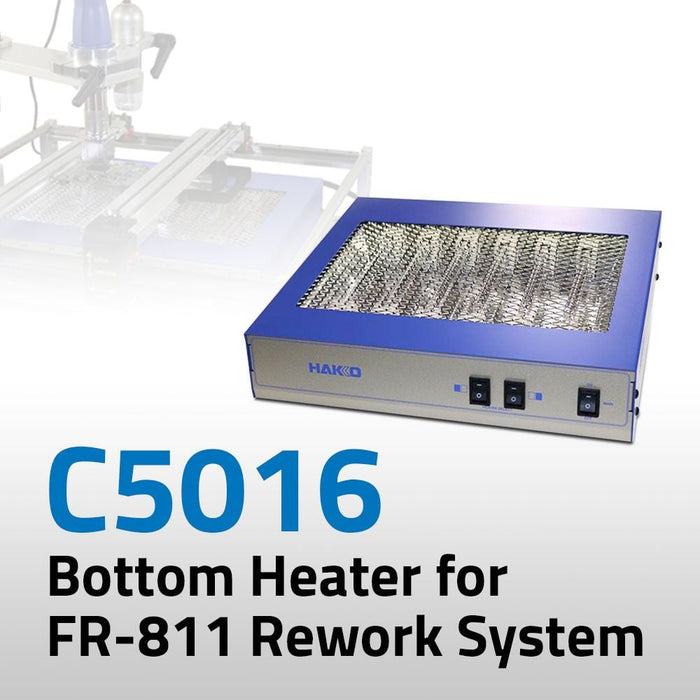

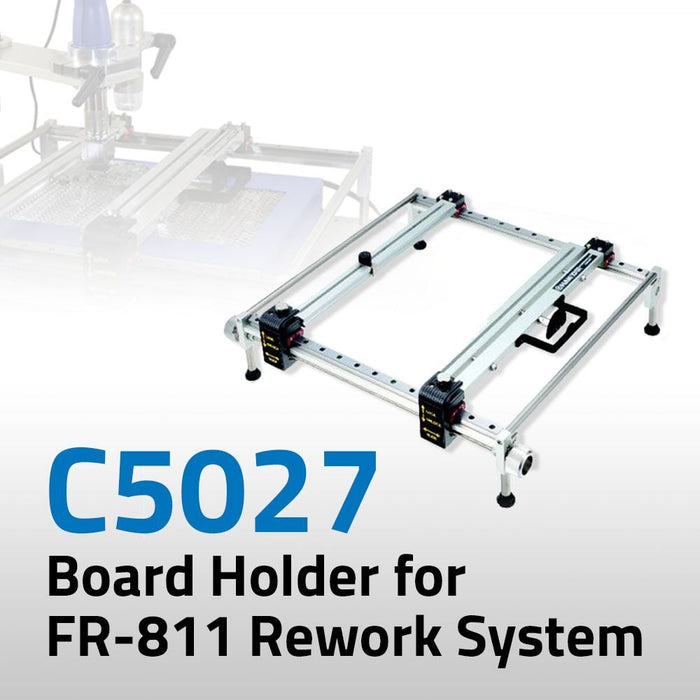

A complete, economical SMD hot air rework system, including the HAKKO FR-811 hot air station, bottom heater, handpiece rework fixture, board holder and vision system. Request a Free Demo Download Software
Specifications
| Model Name | FR-811 |
| Part No. | FR811-04 |
| Input Voltage | 120 VAC 50/60 Hz |
| Power Consumption | 820W |
| Heater Power Consumption | 790W |
| Airflow Source | Turbine |
| Airflow Capacity1 | Setting 1-100% (115 L/min. Max) |
| Vacuum Function | Yes |
| Temperature Range2 | 120° - 1120°F (50° - 600°C) |

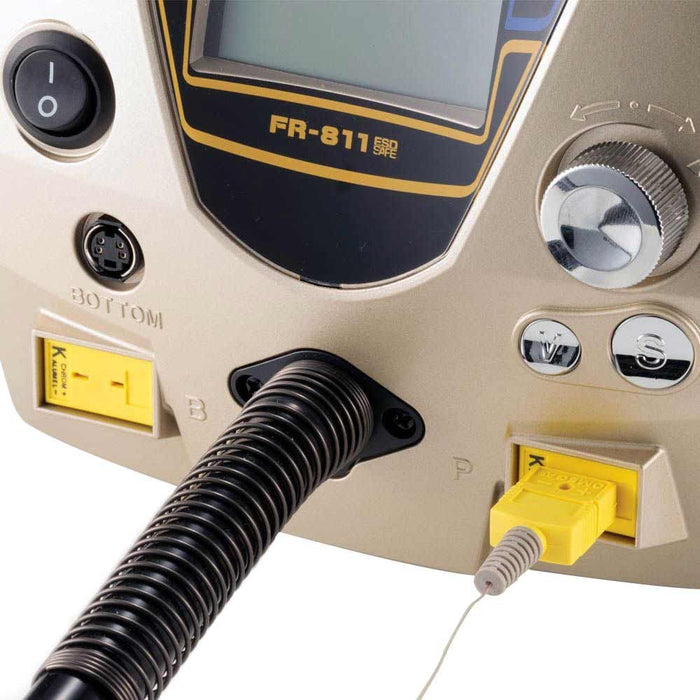

| Thermocouple Inputs | 2 - Type K |

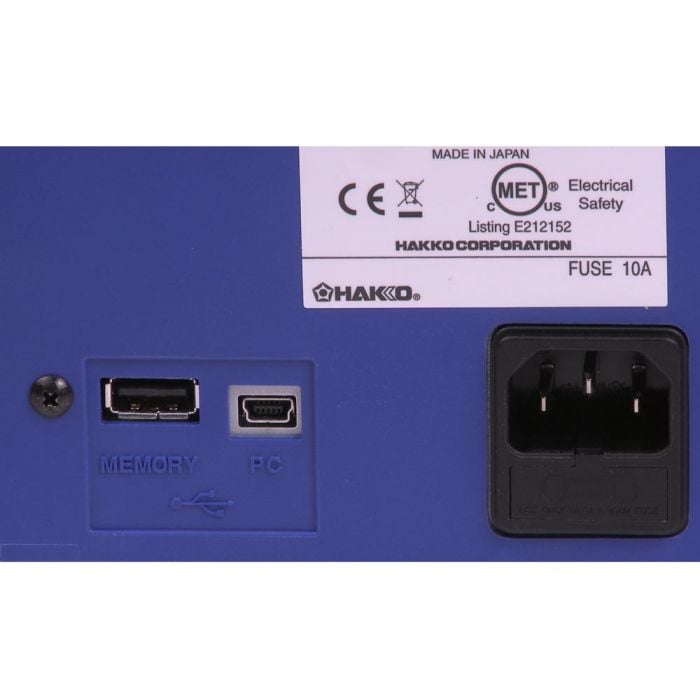

| External Connections | 1 - USB - A1 - USB Mini B |
| Operating Modes | Manual or Automatic |
| Memory | 50 x 6 Stage + Preheat |
| Process Control | Password Lockout |
| Auto Power Off Safety | Yes |
| Auto Cooling Safety | Yes |
| Presets | 6-User Programmable |
| Handpiece Length (w/o Cord) | 9.8 in (250 mm) |
| Handpiece Weight (w/o Cord) | 0.40 lb. (180 g) |
| Nozzles (not included) | N51 Series |
| Standard Dimensions(W x H X D) | 6.3 x 5.7 x 8.7 in.160 x 145 x 220 mm |
| Station Weight | 3.3 lb. (1.5 kg) |
| ESD Safe | Yes |
