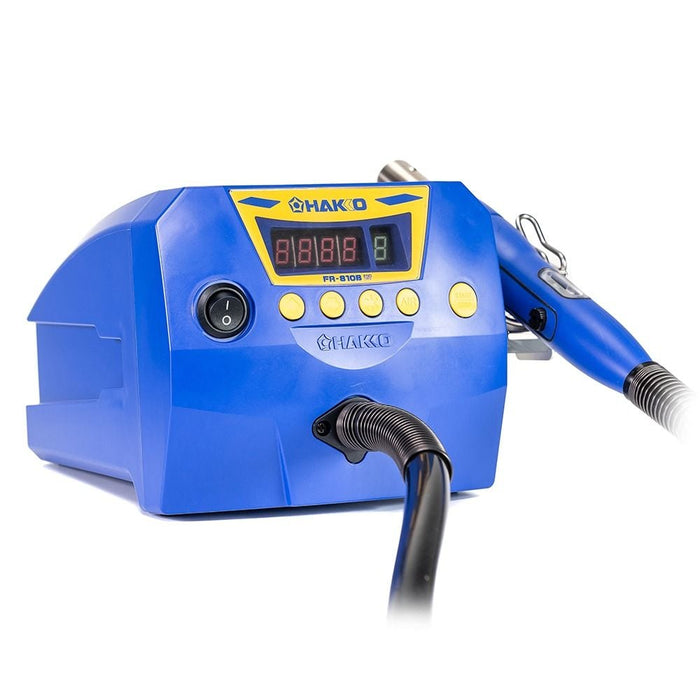

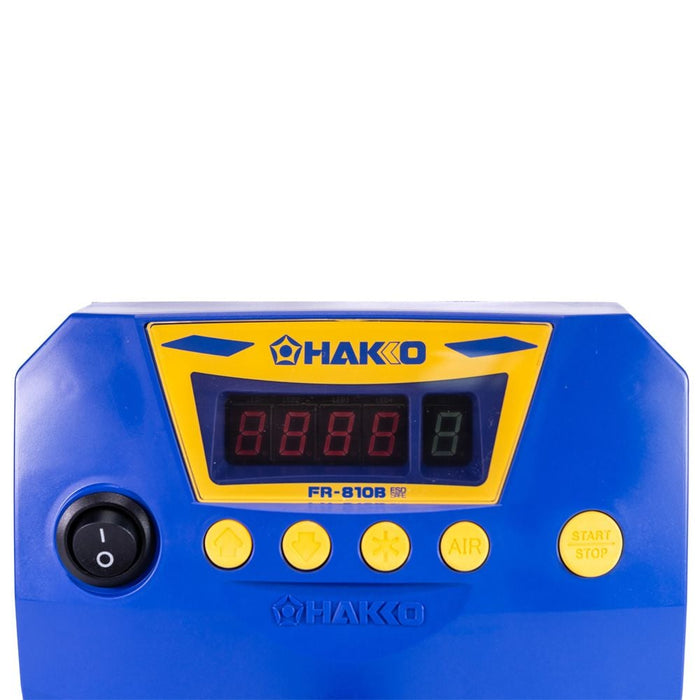

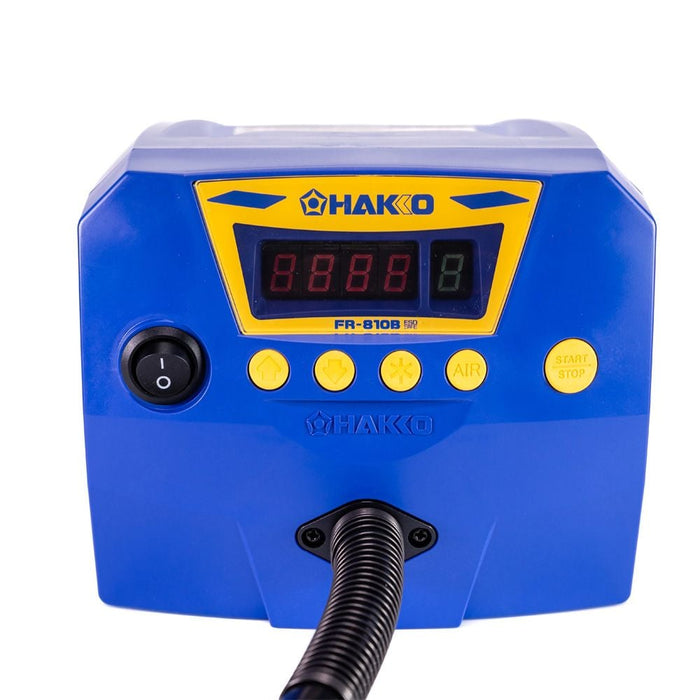

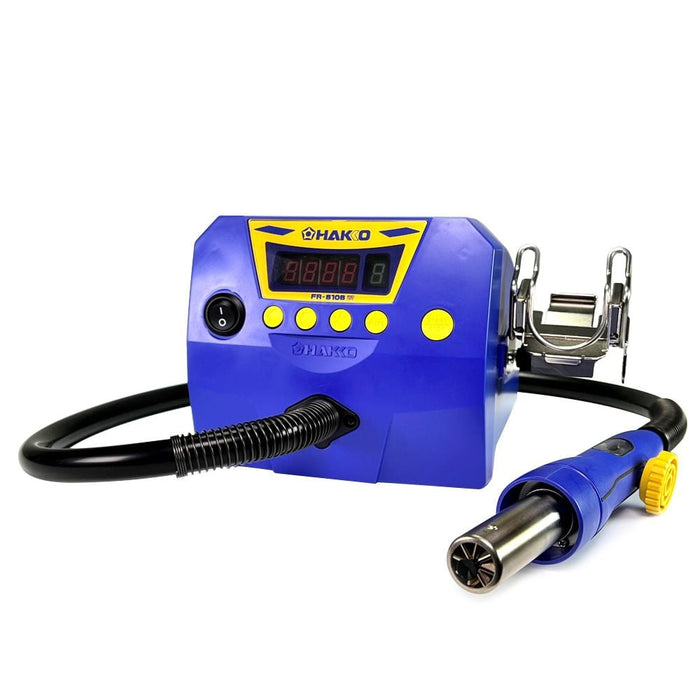

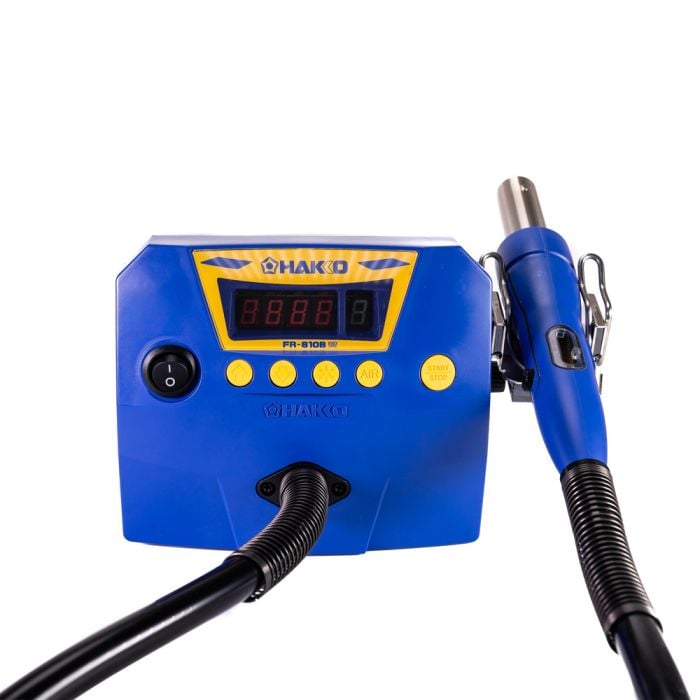

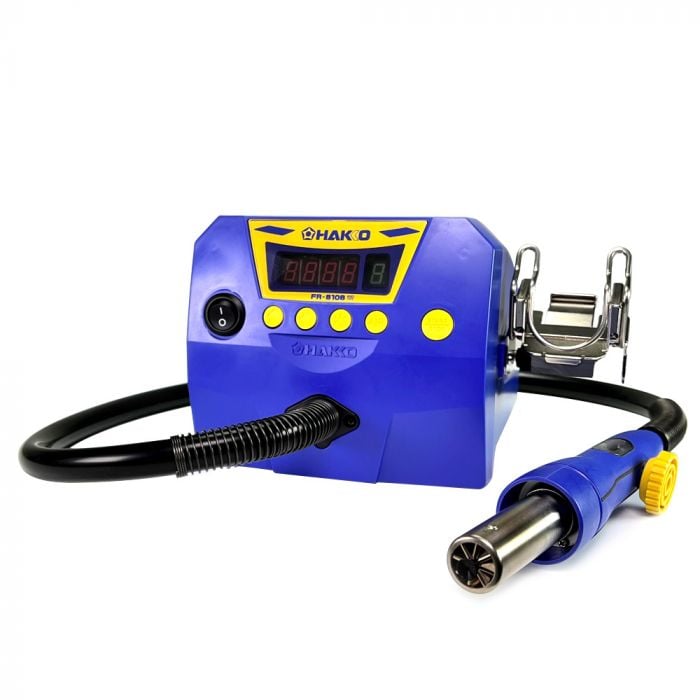

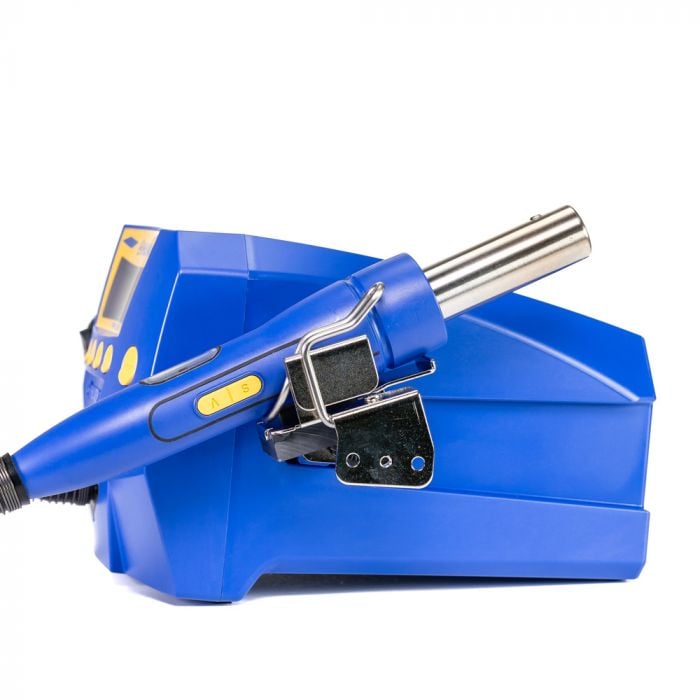

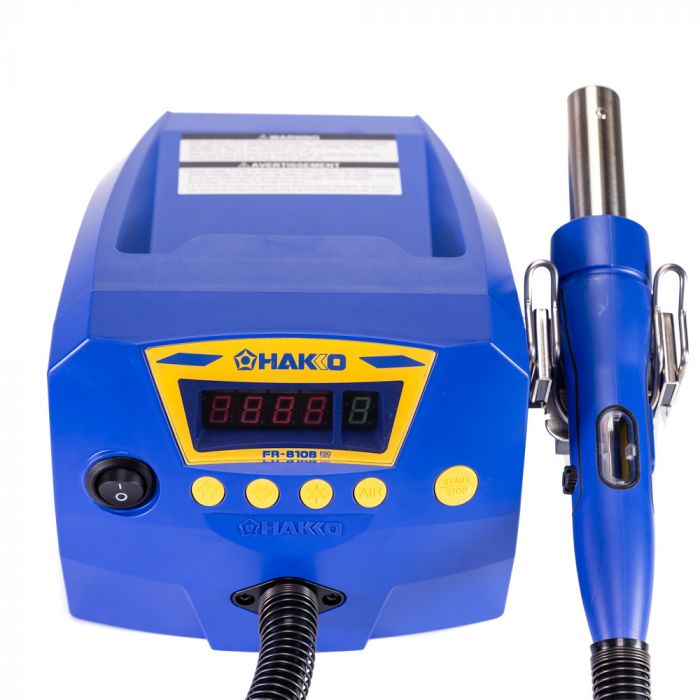

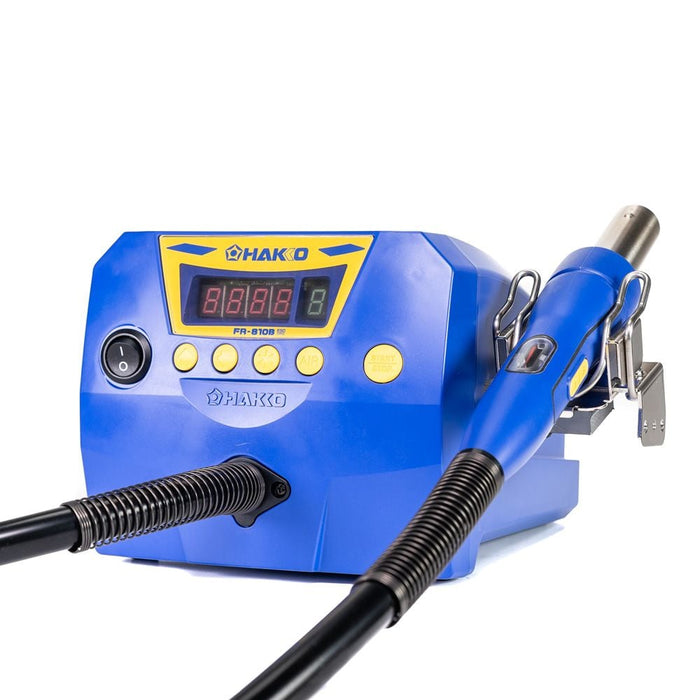

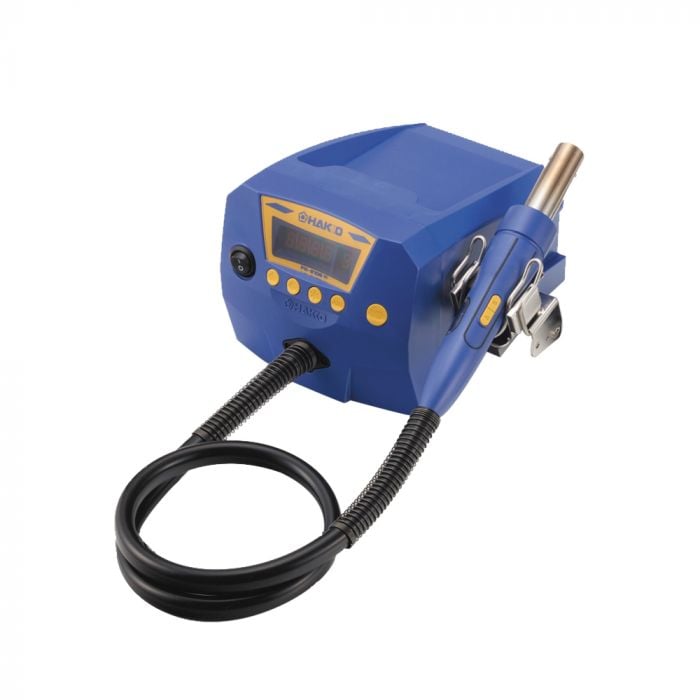

FR-810B SMD Hot Air Rework Station
Text block
SKU FR810B-05
by Hakko
Save $57.27
Original price
$916.77
Original price
$916.77
-
Original price
$916.77
Original price
$916.77
Current price
$859.50
$859.50
-
$859.50
Current price
$859.50
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

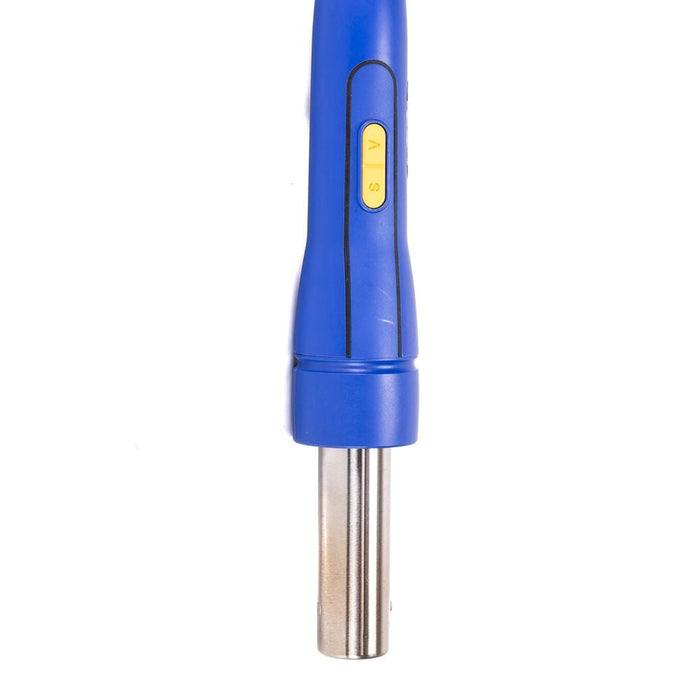

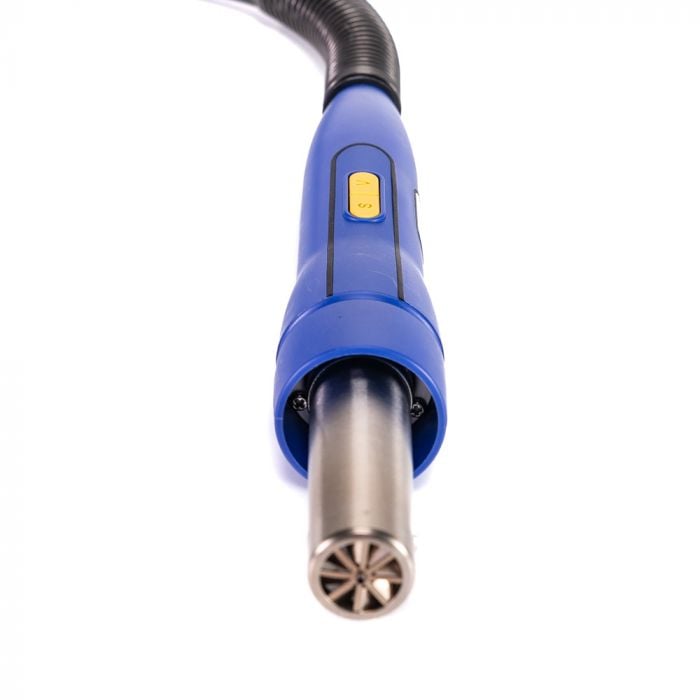

The HAKKO FR-810B is ideal for removing SMDs and includes an integrated vacuum pickup system with a special visual indicator in the handpiece that allows the operator to visually see when the component has completely reflowed and is safely lifted from the pad. Request a Free Demo
Specifications
| Model Name | FR-810B |
| Part No. | FR810B-05 |
| Input Voltage | 120VAC 60Hz |
| Power Consumption | 820W |
| Heater Power Consumption | 790W |
| Airflow Source | Turbine |
| Airflow Capacity1 | 5-115 L/min |
| Temperature Range2 | 120 - 1120°F (50 - 600°C) |
| Handpiece Length3(w/o cord) | 9.8 in. (250mm) |
| Handpiece Weight3(w/o cord) | 0.40 lb. (180g) |
| Nozzles (not included) | N51 Series |
| Station Dimensions4(W x H x D) | 6.3 x 5.7 x 8.7 in.(160 x 145 x 220 mm) |
| Station Weight | 3.3 lb. (1.5 kg) |
| ESD Safe | Yes |
| Country of Origin | JPN |
