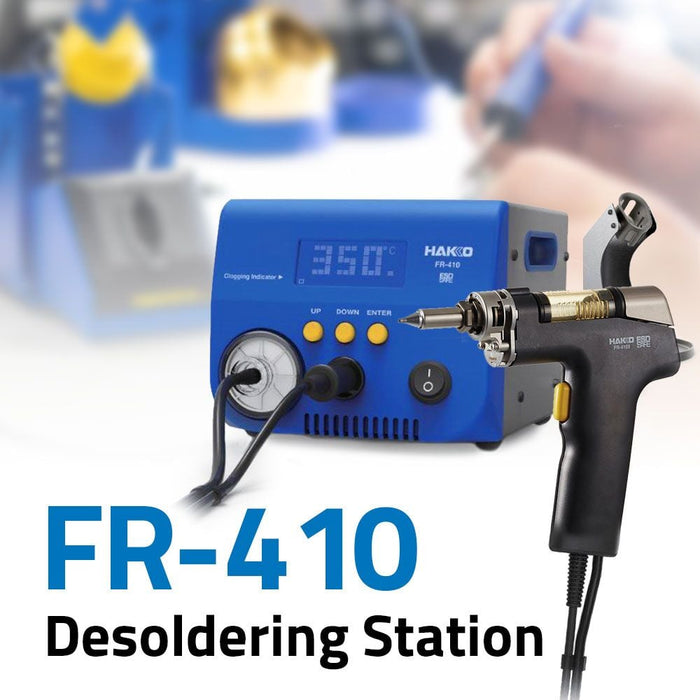

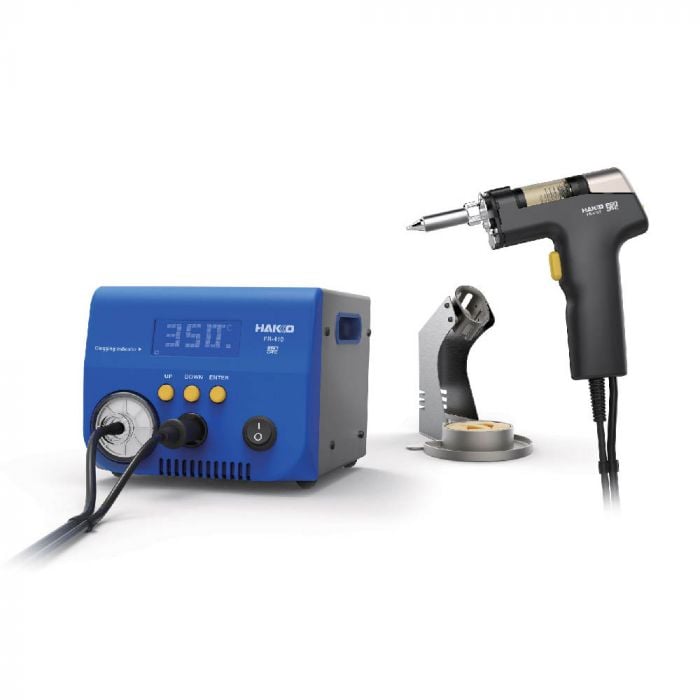

Discontinued FR-410 with Gun-Style Desoldering Tool
Text block
SKU FR410-02
by Hakko
Sold out
Original price
$975.27
-
Original price
$975.27
Original price
$975.27
$975.27
-
$975.27
Current price
$975.27
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued. It has been replaced by FR410-52.

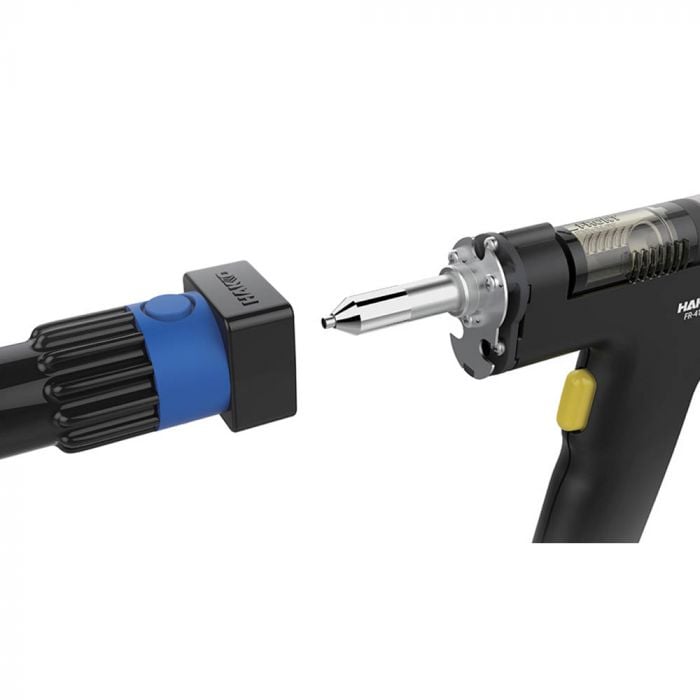

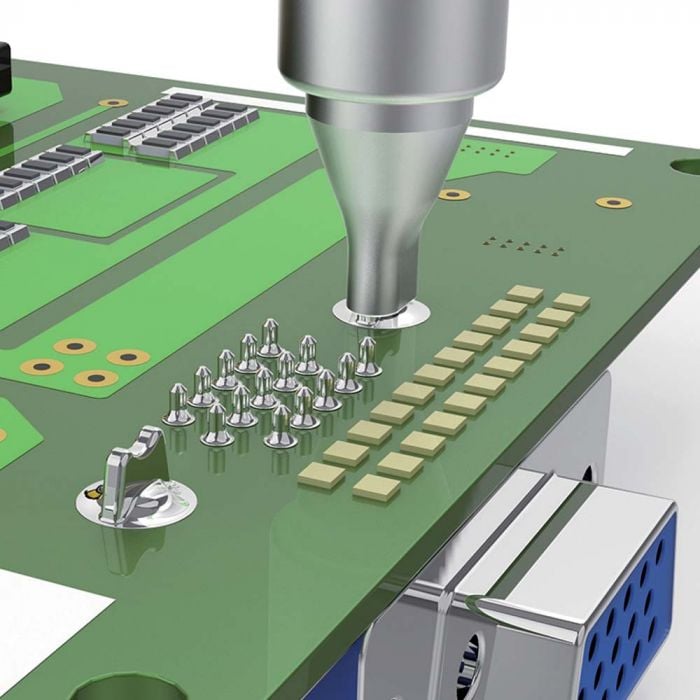

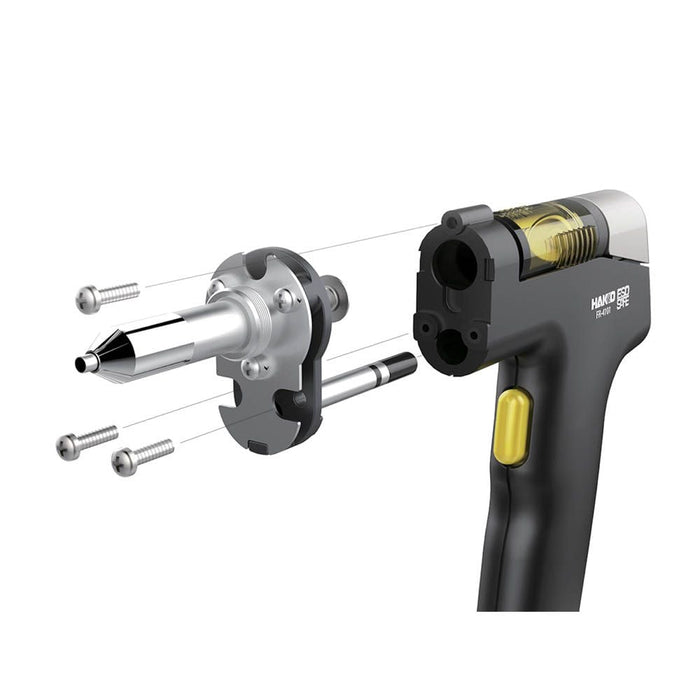

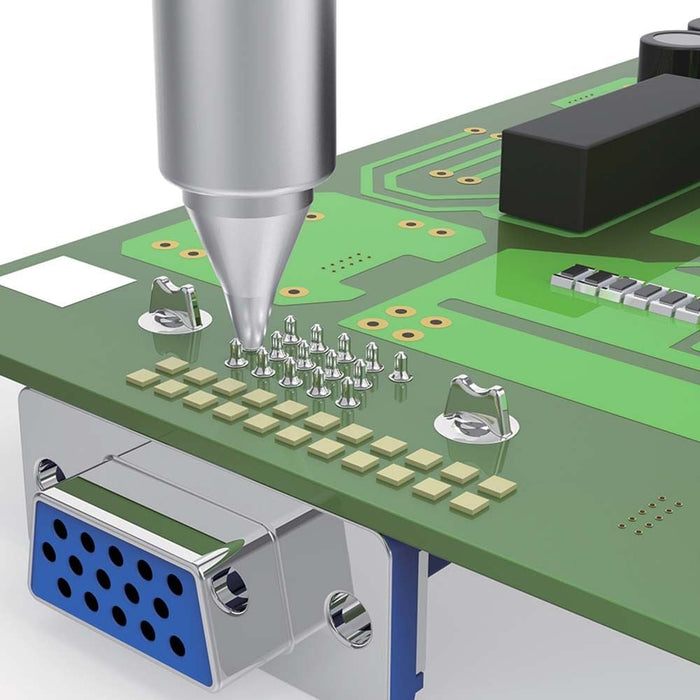

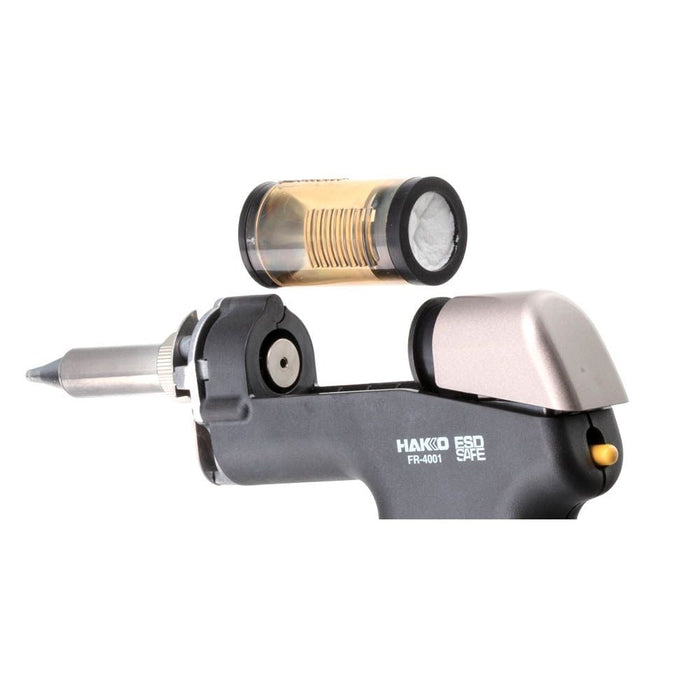

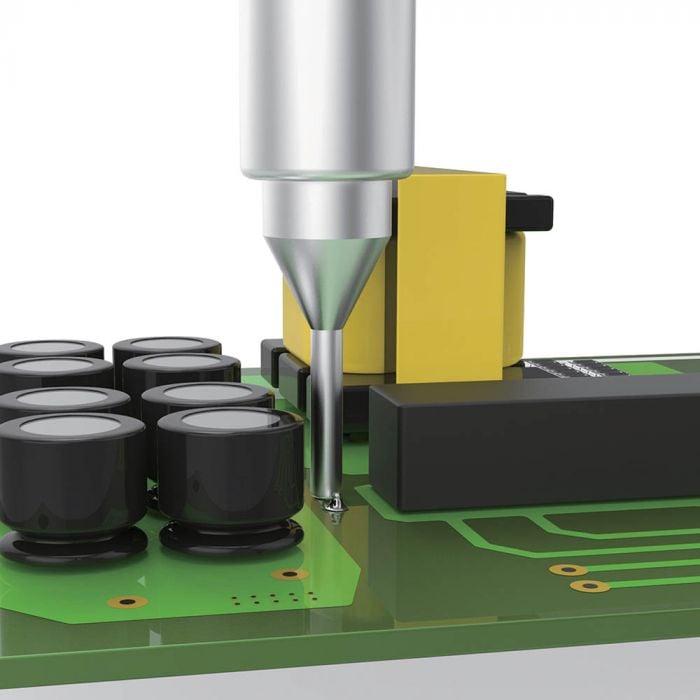

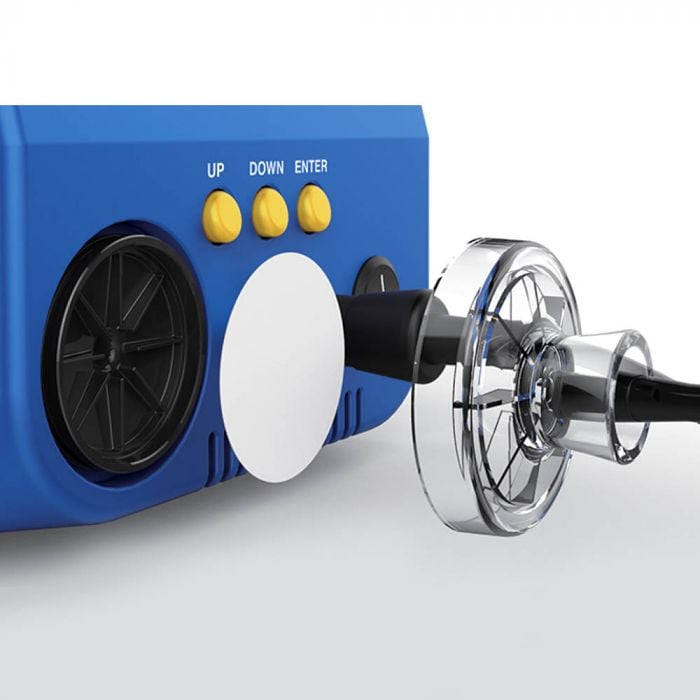

Using just 140 watts of power, this station is excellent for desoldering components on multi-layer circuit boards, including those with difficult to reach areas and narrow spaces. This station has improved features to make it easier to use and increase efficiency, including an Anti-Clog Function (ACF) and display, larger and easier-to-change filter, and easier, safer nozzle replacement. This part number has been replaced by FR410-52.
Specifications
| Model Name | FR-410 |
| Part No. | FR410-02 |
| Input Voltage | 120 VAC 50/60 Hz |
| Power Consumption | 190W |
| Temperature Range | 330° - 450°C (620° - 850°F) |
| Temperature Stability | ±9°F (±5°C) at idle |
| ESD Safe | Yes |
| Output Voltage | 24V |
| Vacuum Generator | Pump - Double Cylinder |
| Vacuum Pressure (max) | 80 kPa / 600 mm HG (24 in. Hg) |
| Suction Flow | 15 L/min. |
| Temperature Control | Microprocessor control using closed-loop sensor |
| Temperature Presets | 3-user Programmable |
| Sleep Enabled | Yes |
| Auto Power Off Safety | Yes |
| Low Temp Alarm | Yes |
| Process Control Lockout | Yes-Password |
| Dimensions (W x H x D) | 6.5 x 5.4 x 9.6 in. (165 x 137 x 244 mm) |
| Weight (w/o cord) | 10.6 lbs. (4.8 kg) |

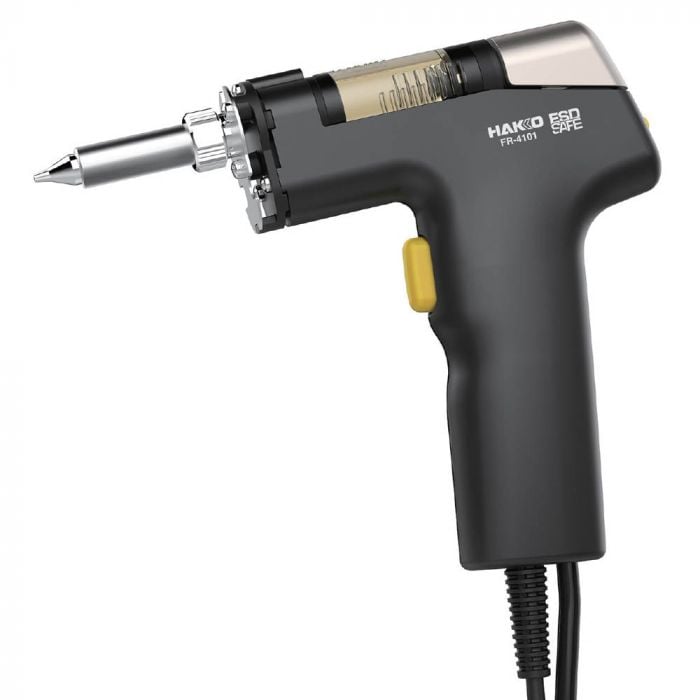

| Model No. | FR-4101 (Gun) |
| Part No. | FR4101-81 |
| Power Consumption | 140 W |
| Nozzle to Ground Resistance | < 2 Ohms |
| Nozzle to Ground Potential | < 2 mV |
| Heater | HAKKO Composite Ceramic™ |
| Nozzles | N61Series |
| Standard Nozzle (included) | N61-05(1.0 mm / 0.04 in.) |
| Cord Length | 4 ft. (1.2 m) |
| Total Length (w/o cord)† | 6.6 in. (168 mm) |
| Weight (w/o cord) | 0.38 lbs. (170 g) |
