FR-300 Desoldering Tool
Text block
SKU FR300-05/P
by Hakko
Sold out
Original price
$309.97
-
Original price
$309.97
Original price
$309.97
$309.97
-
$309.97
Current price
$309.97
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued. It has been replaced by FR301-03/P.

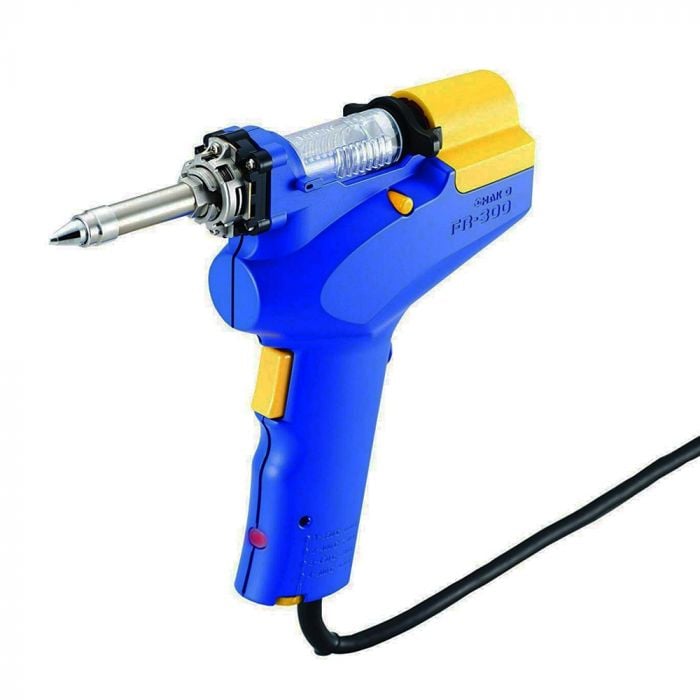

The Hakko FR-300 desoldering tool puts the performance of an industrial desoldering station into a compact, lightweight hand tool that can be used on the workbench or in the field. This versatile tool has a longer than normal cord to provide extra reach, integrated power switch to turn the tool off when not in use, and a quick-change nozzle system. This part number has been replaced with FR301-03/P.
Specifications
| Model Number | FR-300 |
| Part Number | FR300-05/P |
| Power Consumption | 140W / 120V |
| Heating Element | Ceramic |
| Motor Output | 14W |
| Temperature | 660° - 930°F (350° - 500°C) |
| Temperature Stability& Accuracy | Meets or ExceedsIPC J-STD-001 |
| Tip-to-Ground Resistance | < 2 ohms |
| Tip-to-Ground Potential | < 2mV |
| Vacuum Source | Single-cylinder Diaphragm Pump |
| Vacuum Pressure | 81 kPa (610 mm Hg / 24 in. Hg) |
| Suction Flow | 11 L/min. |
| Dimensions(w/o Case) | 170(H) x 235(W) mm(6.7(H) x 9.3(W) in.) |
| Weight(w/o cord & case) | 1.1 lb. (0.52 kg) |
| Reach | 5.9 ft. (1.8m) |
| Nozzles | N50 Series |
| Standard Nozzle | N50-04 (ø1.0mm) |
| Dimensions (w/o case)(L x W x H) | 8.3 x 1.9 x 8.9 in.(210 x 49 x 226 mm) |
