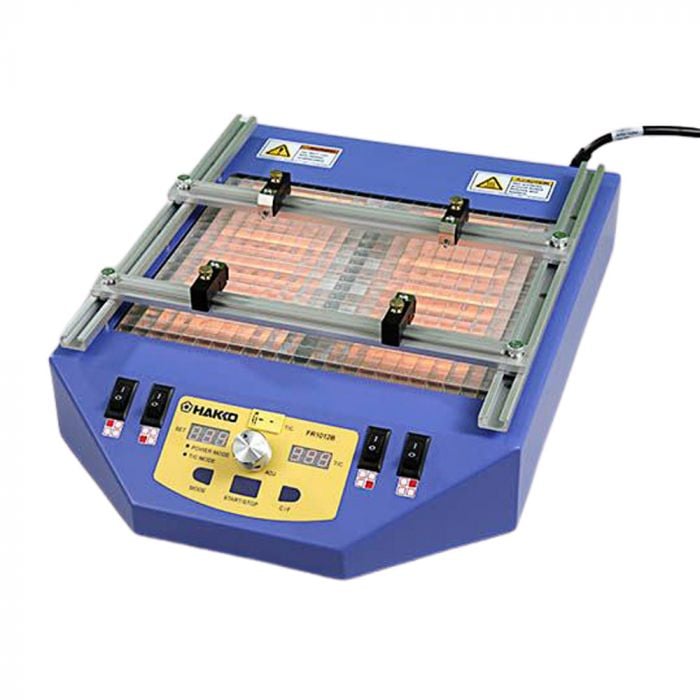

FR-1012B IR Preheater
Text block
SKU FR1012B-01
by Hakko
Sold out
Original price
$1,649.97
-
Original price
$1,649.97
Original price
$1,649.97
$1,649.97
-
$1,649.97
Current price
$1,649.97
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued by Hakko. It has been replaced by Hakko part FR872, which is not yet listed in our catalog.
The Hakko FR-1012 is a bench-top board preheater designed to raise the temperature of printed circuit board assemblies. This preheater is particularly useful for medium to high-mass board assemblies. NOTE: The FR-1012B has been replaced by the FR-872.
Specifications
| Part No. | FR1012B-01 |
| Board Capacity | 12 x 15 inches |
| Heated Area | 10 x 12 inches |
| Heater Watts | 1200 W |
| Heater Type | Low Mass Quartz I/R |
| Thermocouple Inputs | (1) Type K |
| Temperature Accuracy | ±5°C/±9°F |
| Controller | Industrial Microprocessor |
| Operating Modes | Power Mode - or - T/C Mode |
| Power Requirements | 100 - 120V / 10A Standard200 - 240V / 6A Optional |
| Size | 14"W x 18"D x 5"H |
| Weight | 16 lbs |
