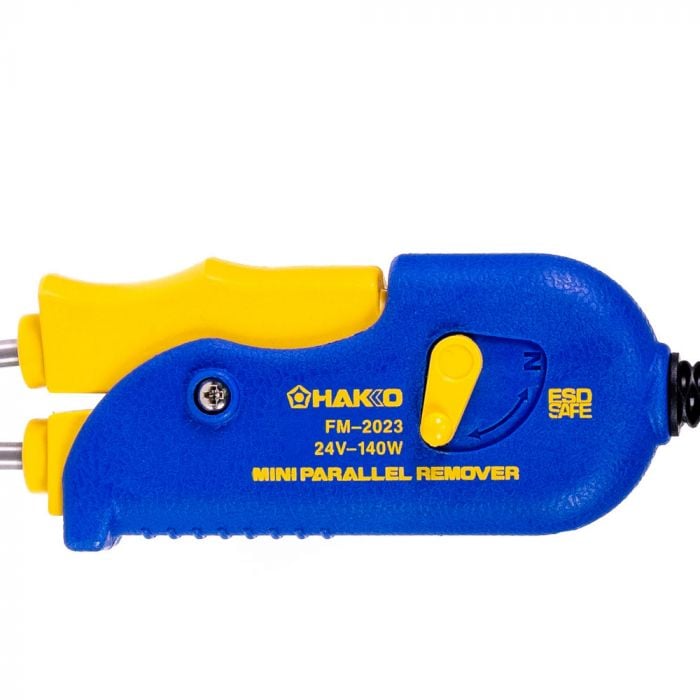

FM2023-02 Mini Hot Tweezers — Handpiece Only
Text block
SKU FM2023-02
by Hakko
Original price
$207.07
-
Original price
$207.07
Original price
$207.07
$207.07
$207.07
-
$207.07
Current price
$207.07
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

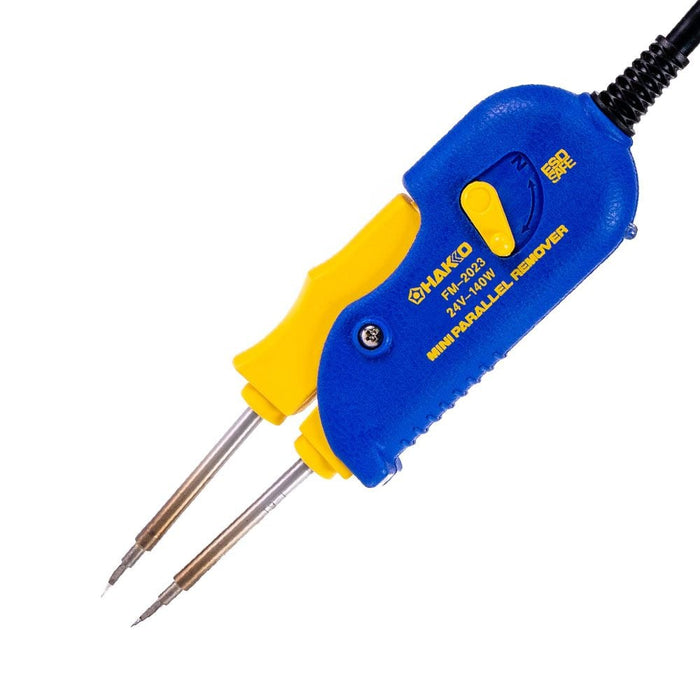

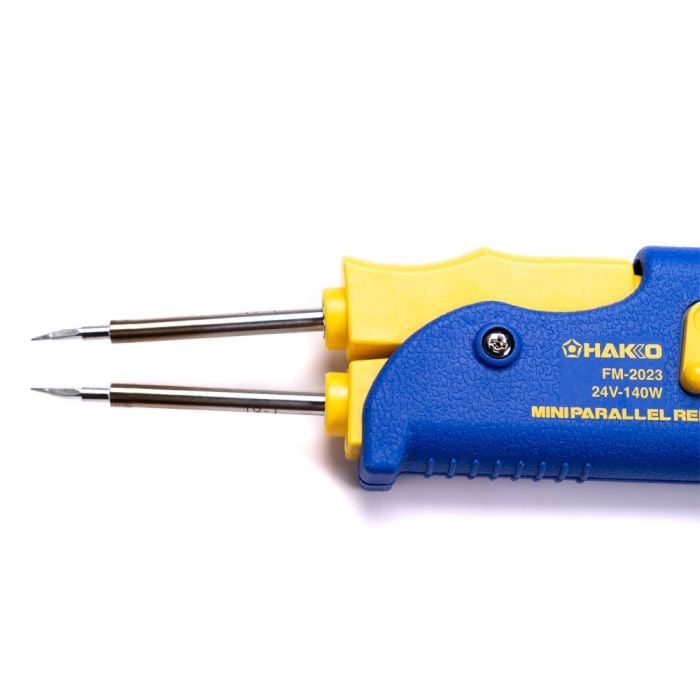

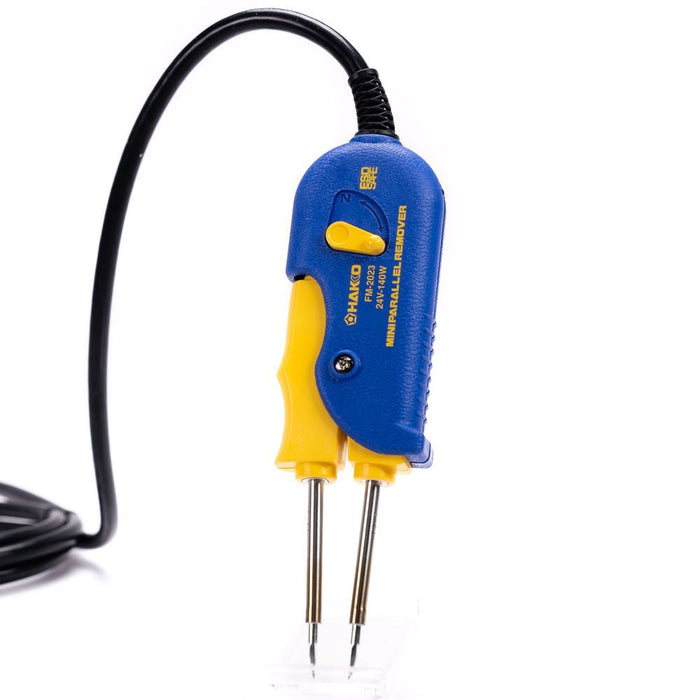

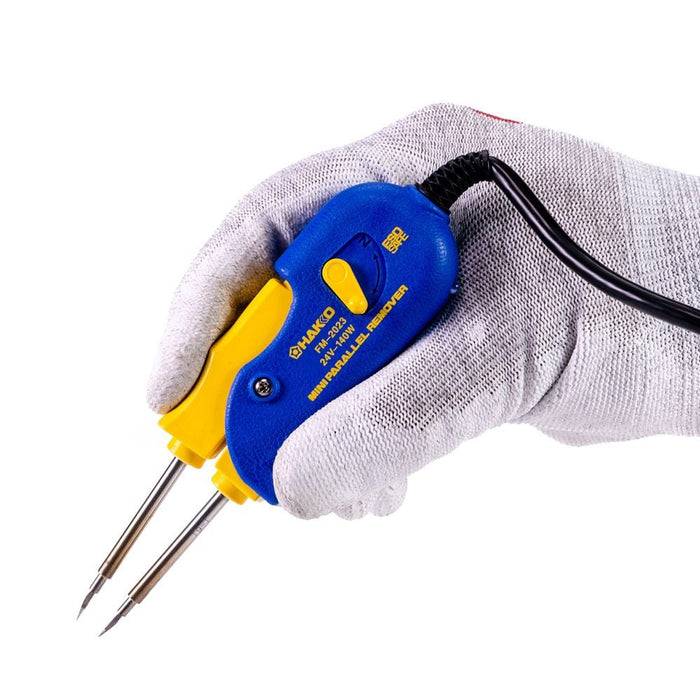

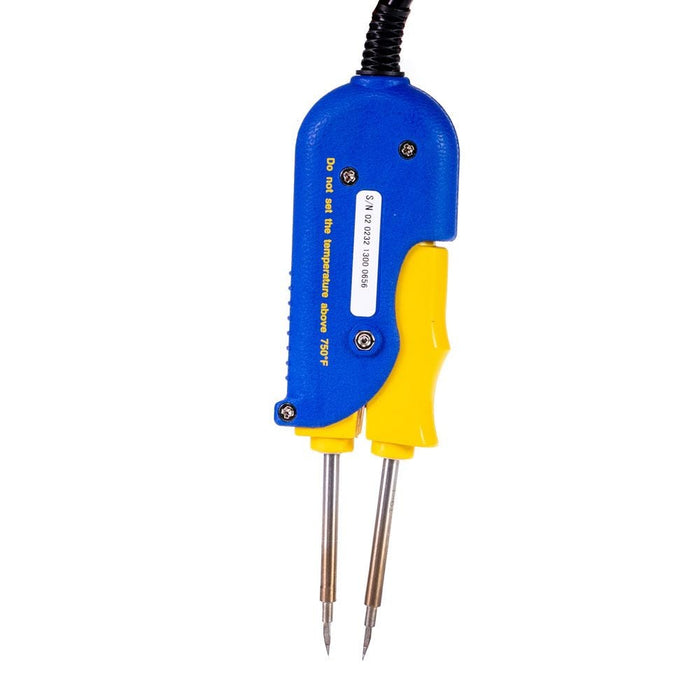

Hakko’s FM-2023 Mini Hot Tweezer tool is designed for use with small chip components, as small as 0201. This Tweezer tool has a unique feature allowing it to work in standard or reverse action mode. NOTE: Tips not included
Specifications
| Model Name | FM-2023 |
| Part Number | FM2023-02 |
| Power Consumption | 140W (24V) |
| Temperature Range | 200°C - 400°C (400°F - 750°F) |
| Temperature Accuracy | ±10°C (±28°F) of set temperature |
| Temperature Stability | ±5°C (±9°F) at idle temperature |
| Tip to Ground Resistance | < 2 ohms |
| Tip to Ground Potential | < 2mV (Typical 0.6mV) |
| Cord Assembly | 1.2m (4 ft.) |
| Total Length (w/o Cord and Tip) | 75mm (3.0 in.) |
| Weight, Handpiece only (w/o cord) | 32g (1.1 oz.) |
| Weight, T9-I tip | 5g (0.18 oz.) |
| Standard tip | T9-I |
