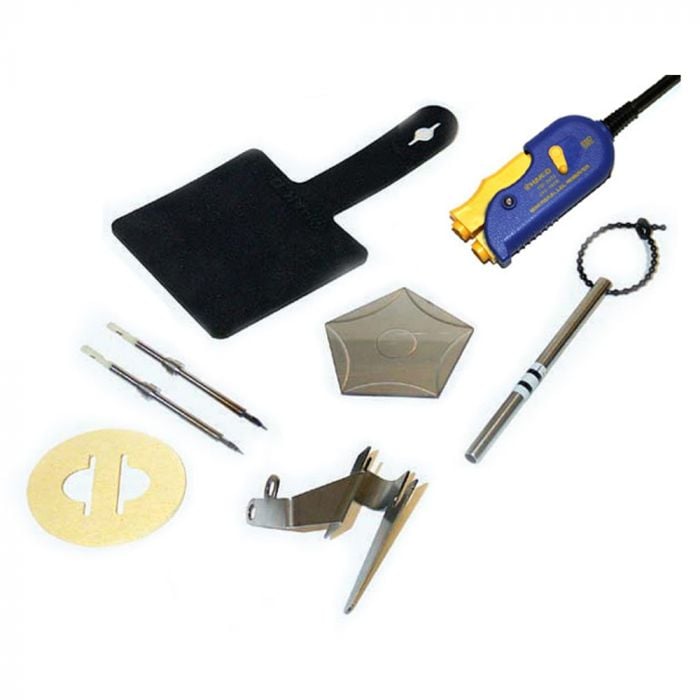

FM2023-01 Mini Hot Tweezers Kit
Text block
SKU FM2023-01
by Hakko
Sold out
Original price
$274.97
-
Original price
$274.97
Original price
$274.97
$274.97
-
$274.97
Current price
$274.97
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued by Hakko. No direct replacement has been specified by the manufacturer.
Hakko’s FM-2023 Mini Hot Tweezers are designed for use with small chip components, as small as 0201. These Tweezers have a unique feature that allows for them to work in standard or reverse action mode.
Specifications
| Model Name | FM-2023 |
| Power Consumption | 140W (24V) |
| Temperature Range | 200°C - 400°C (400°F - 750°F) |
| Temperature Accuracy | ±10°C (±18°F) of set temperature |
| Temperature Stability | ±5°C (±9°F) at idle temperature |
| Tip to Ground Resistance | Under 2 ohms |
| Tip to Ground Potential | Under 2mV (Typical 0.6mV) |
| Cord Assembly | 1.2m (4 ft.) |
| Total Length(w/o Cord and Tip) | 75mm (3.0 in.) |
| Weight, Handpiece only (w/o cord) | 32g (1.1 oz.) |
| Weight, T9-I tip | 5g (0.18 oz.) |
| Standard tip | T9-I |
