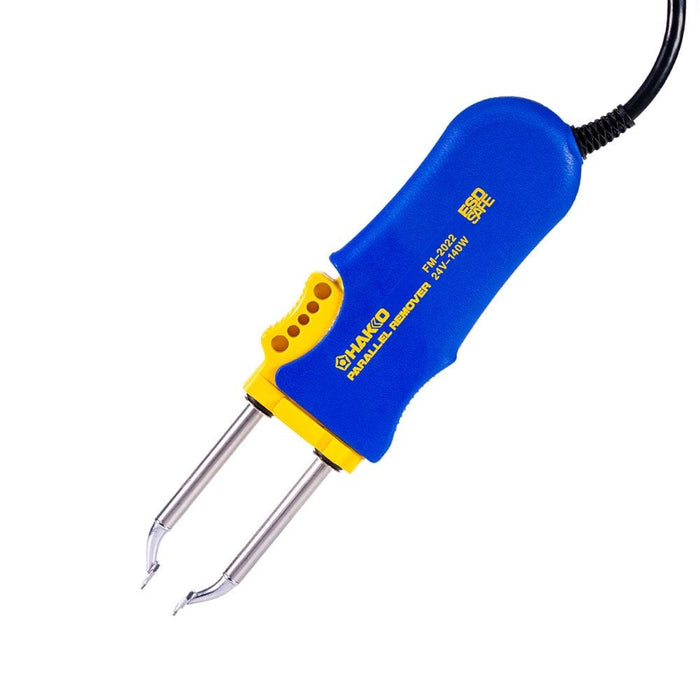

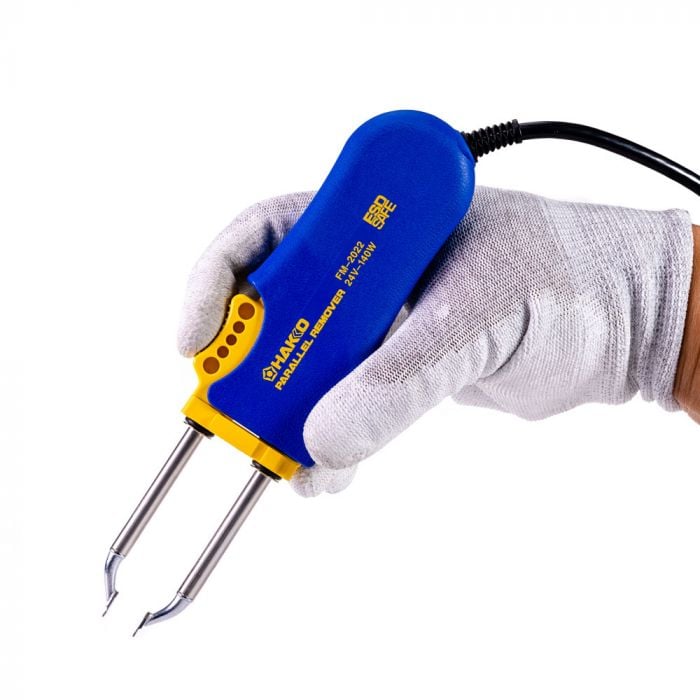

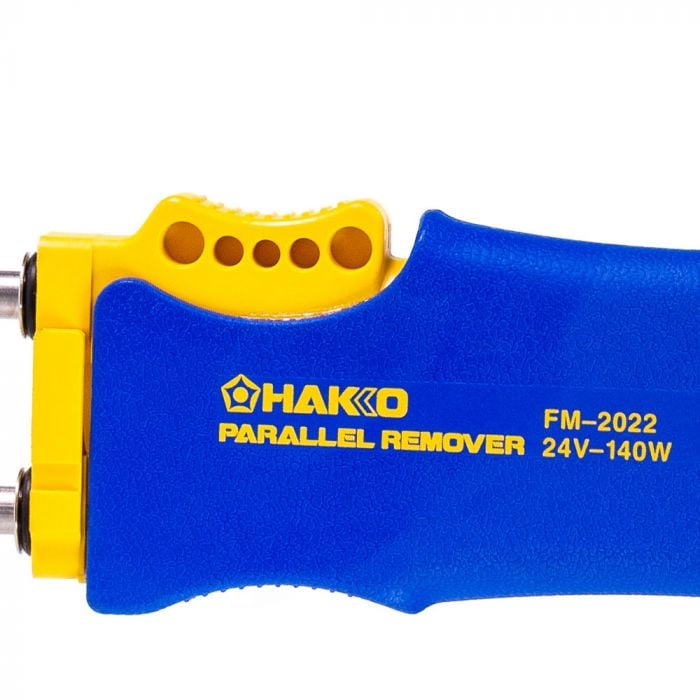

FM-2022 SMD Parallel Remover Handpiece Only
Text block
SKU FM2022-02
by Hakko
Original price
$221.47
-
Original price
$221.47
Original price
$221.47
$221.47
$221.47
-
$221.47
Current price
$221.47
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
The Hakko FM-2022 SMD Parallel Remover uses revolutionary parallel action between the tip ends-one tip remains stationary allowing greater surface contact between the tip and the component and providing more efficient and even heat transfer.
Specifications
| Model Name | FM-2022 |
| Part Number | FM2022-02 |
| Power Consumption | 140W (24V) |
| Temperature Range | 200°C - 400°C (400°F - 750°F) |
| Temperature Accuracy | ±15°C (±27°F) of set temperature |
| Temperature Stability | ±5°C (±9°F) at idle temperature |
| Tip to Ground Resistance | < 2 ohms |
| Tip to Ground Potential | < 2mV (Typical 0.6mV) |
| Cord Assembly | 1.2m (4 ft.) |
| Total Length (w/o Cord and Tip) | 110mm (4.3 in.) |
| Total Weight (w/o Cord) | 53g (Handpiece) |
