FG-470 System Tester
Text block
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

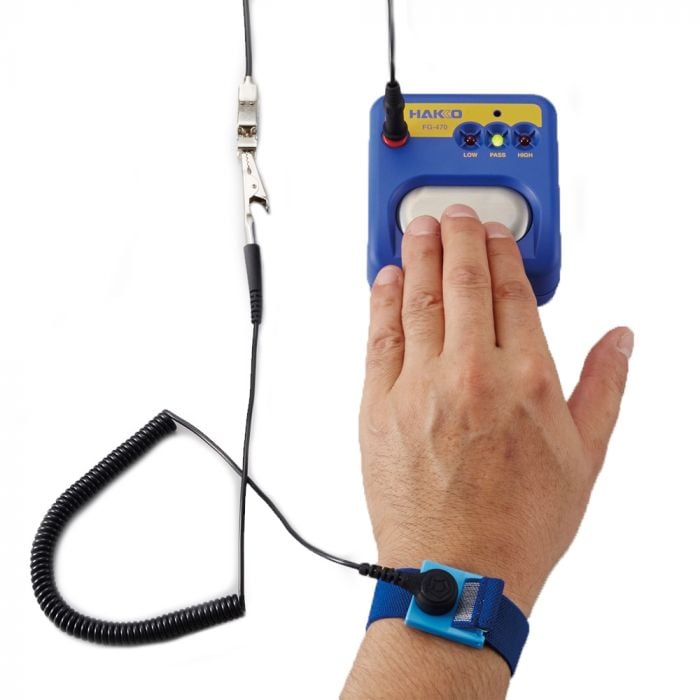

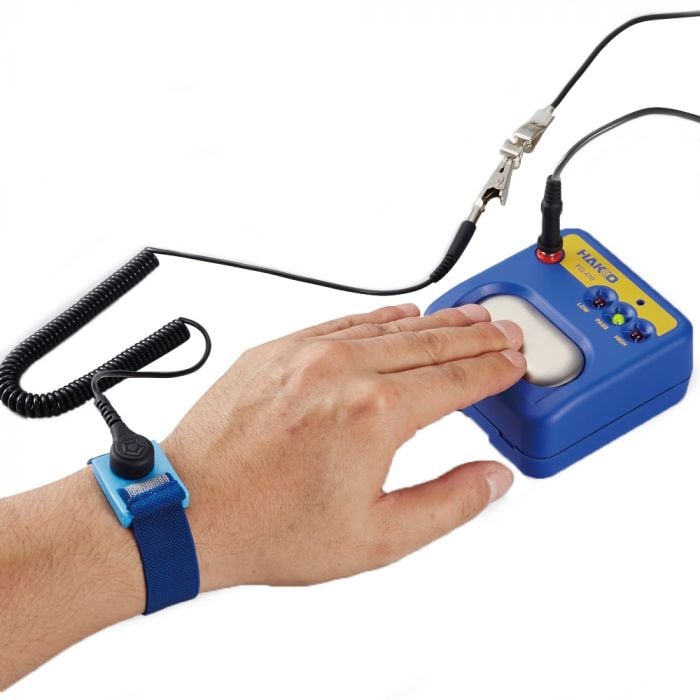

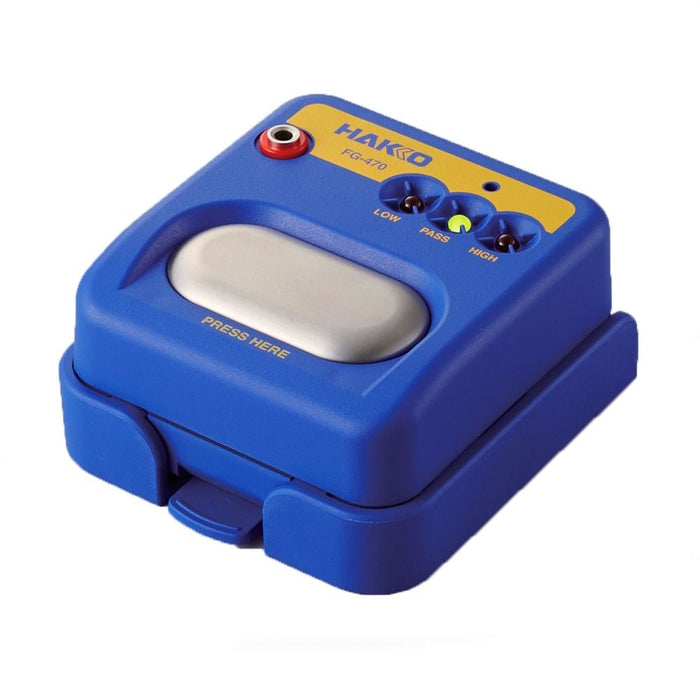

The FG-470 functions exactly like the 498, but it sports a fresh, new look. It quickly and simply checks for wrist straps and grounding wires, and the contact resistance between the wrist strap and the skin. This wrist strap tester can be used anywhere to quickly and easily check wrist strap performance. Furthermore, the FG-470, which uses the 9V battery, ensures employee safety and eliminates product defects caused by static electricity.
Specifications
| Model Name | FG-470 |
| Part No. | FG470-02 |
| Power Supply | 9V battery(alkaline cell recommended) |

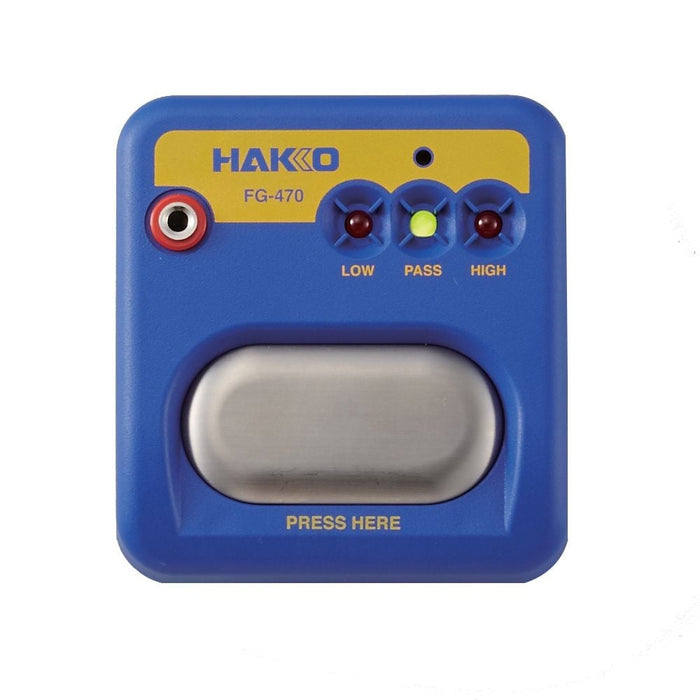

| Indicators | LOW (R < 800kΩ)PASS (800kΩ ≤ R ≤ 9MΩ)HIGH (R > 9MΩ) |
| Accuracy | 800kΩ +10%/-0%9MΩ +0%/-10% |
| Battery Life | Approx. 50,000 tests |

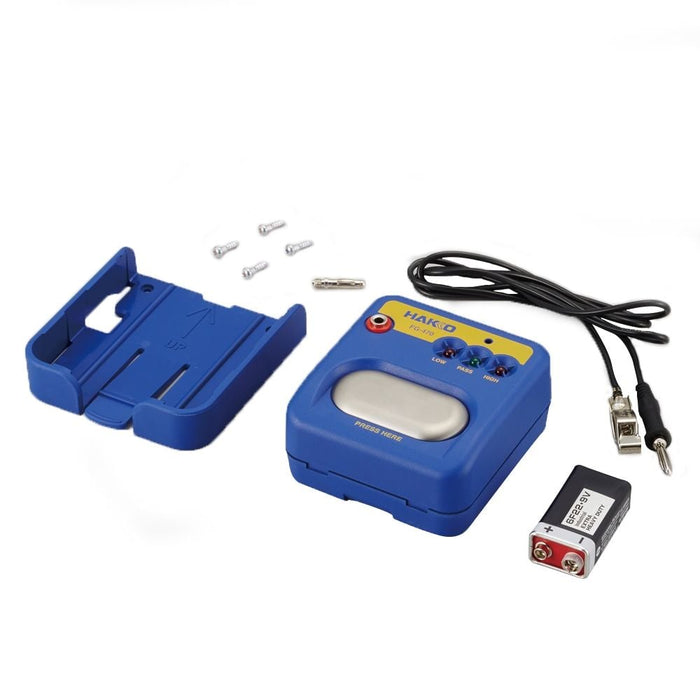

| Grounding Wire | 1 m (Included) |
| Operating Environment | 0 to 40°C (32 to 104°F)20 to 90% RH no condensation |
| Dimensions (W x H x D) | 85 x 44 x 90 mm(3.35 x 1.73 x 3.54 in.) |

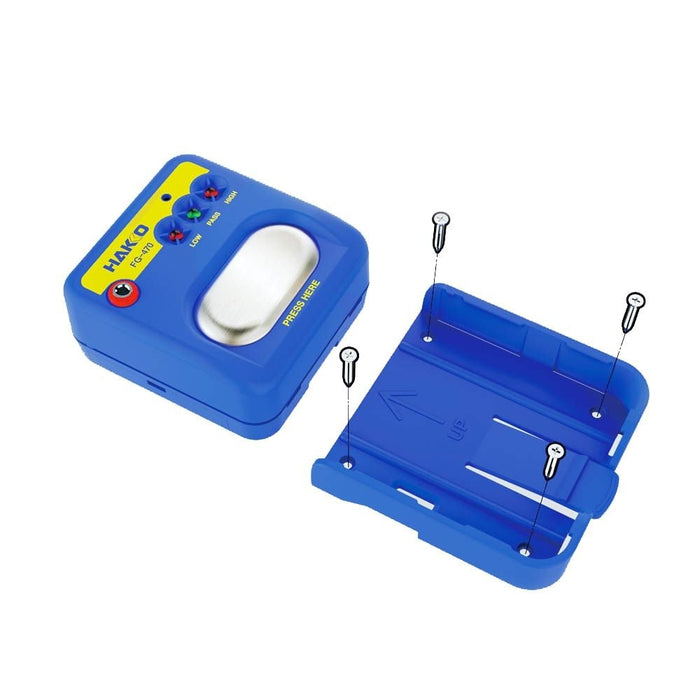

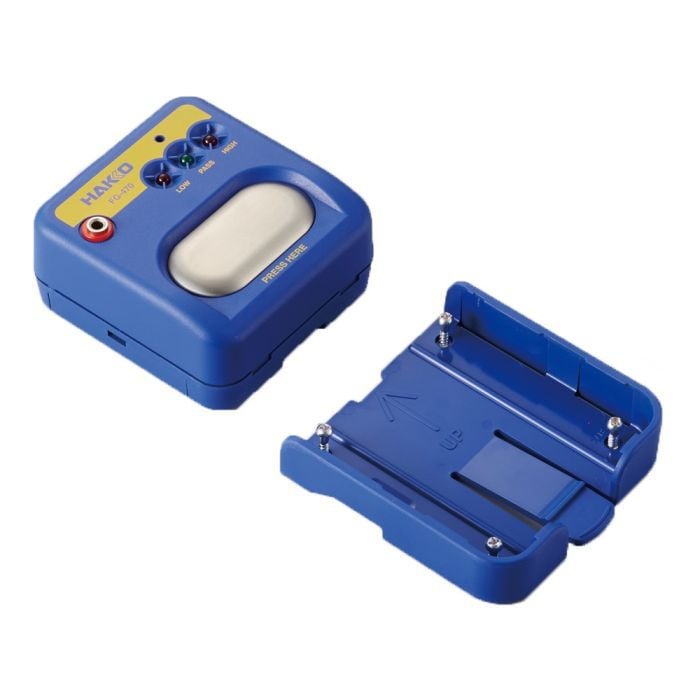

| Dimensions (W x H x D) w/ mounting holder | 92 x 48 x 97 mm(3.62 x 1.89 x 3.82 in.) |
| Weight (excluding battery) | 120 g (0.26 lb.) |
| Weight w/ mounting holder | 160 g (0.35 lb.) |
