FA-430 with Duct & Round Nozzle
Text block
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

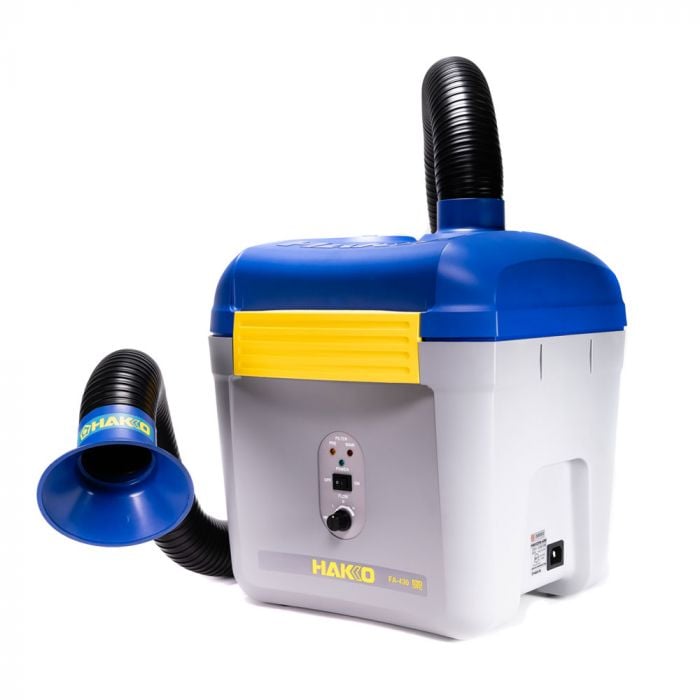

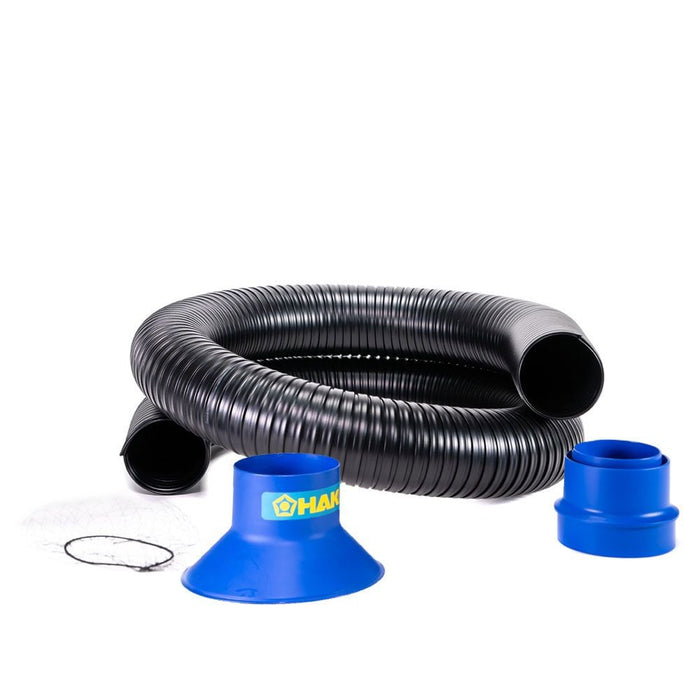

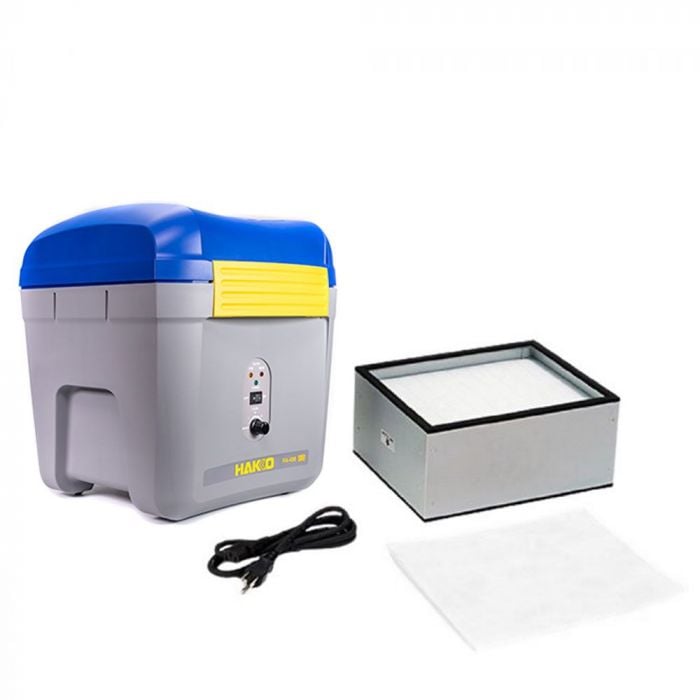

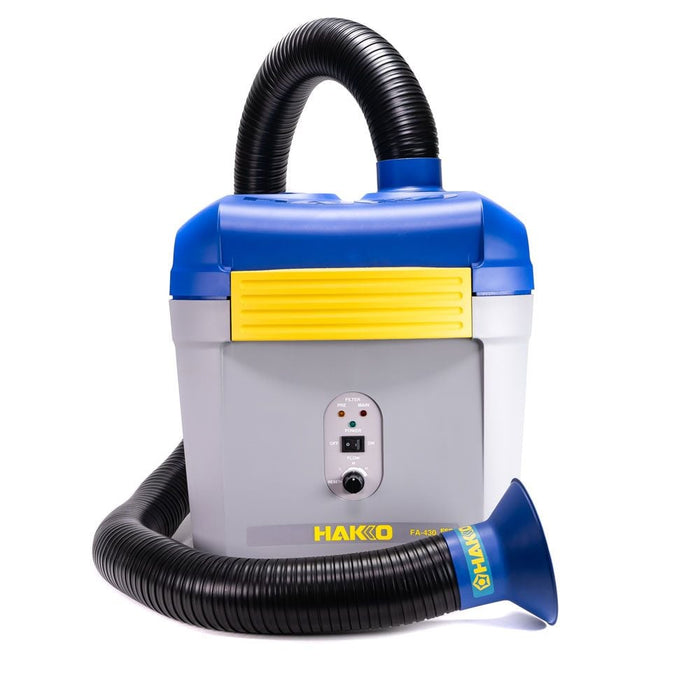

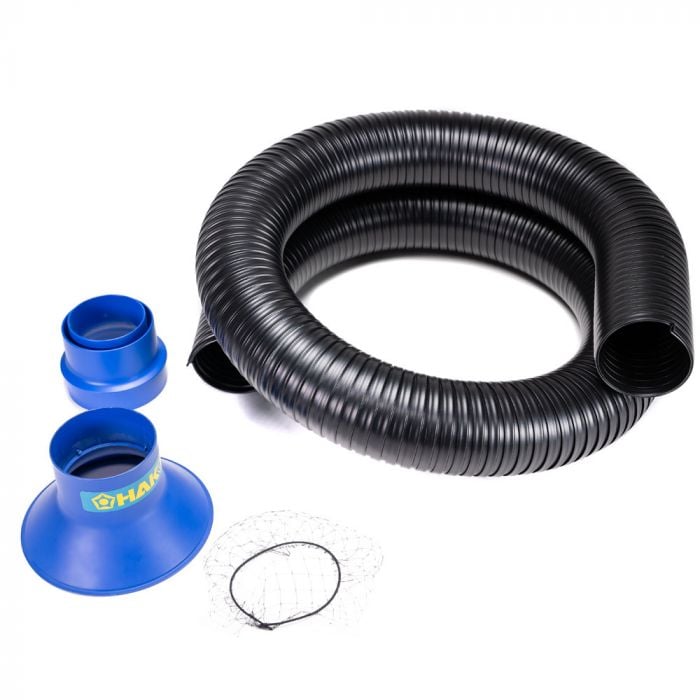

SMOKE ABSORBER,w/C1572,FA-430 The Hakko FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area. Kit includes filter and duct kit with round nozzle. Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430. Request a Free Demo
Specifications
| Part No. | FA430-16 |
| Power Consumption | 110W / 120VAC |
| Motor Type | Brushless |
| Max. Airflow (w/ single duct) | 4.1 m3/min (145 cfm) |
| Max. Airflow (w/ two ducts) | 4.7 m3/min (167 cfm) |
| Vacuum Pressure | 1500 Pa (0.44 in. Hg) |
| Filtering Efficiency | >98% 0.3µm(capable of 99.97% @ 0.3µm) |
| Noise Level | 44 - 53 dB @ 1m |
| Dimensions | 330 (W) x 366 (H) x 343 (D) mm(13.0 x 14.4 x 13.5 in.) |
| Weight | 7.5 kgs (16.5 lb.) |
| ESD Safe | Yes |
| Country of Origin | JPN |
