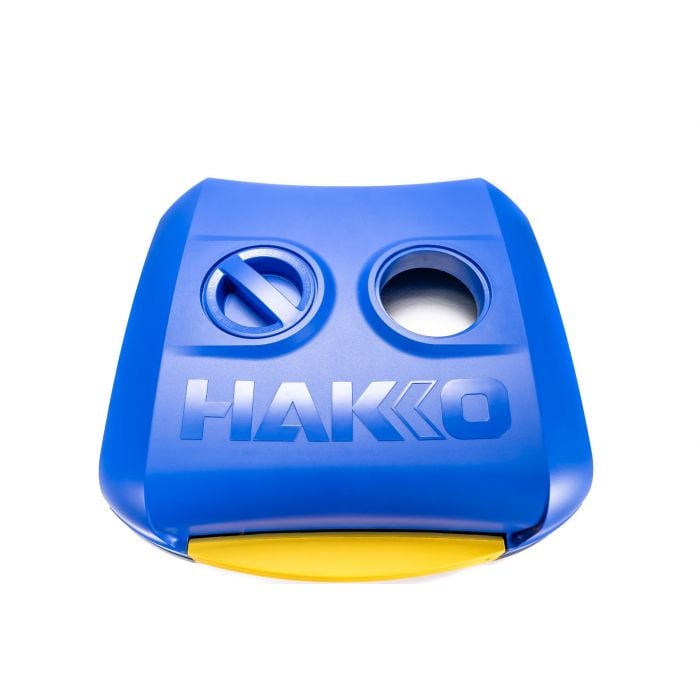

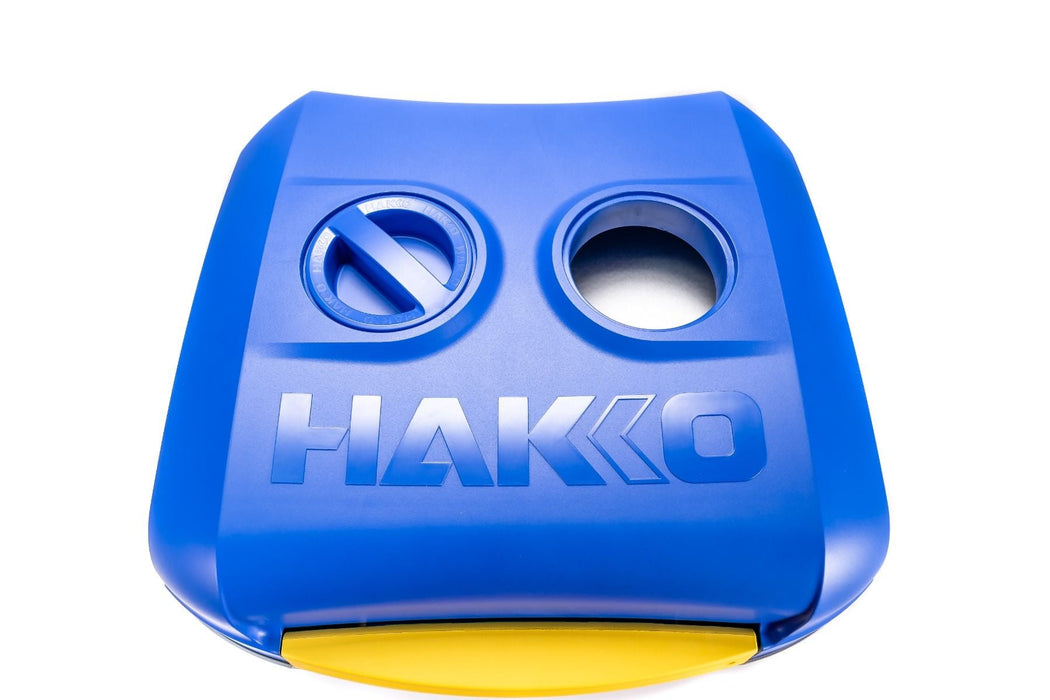

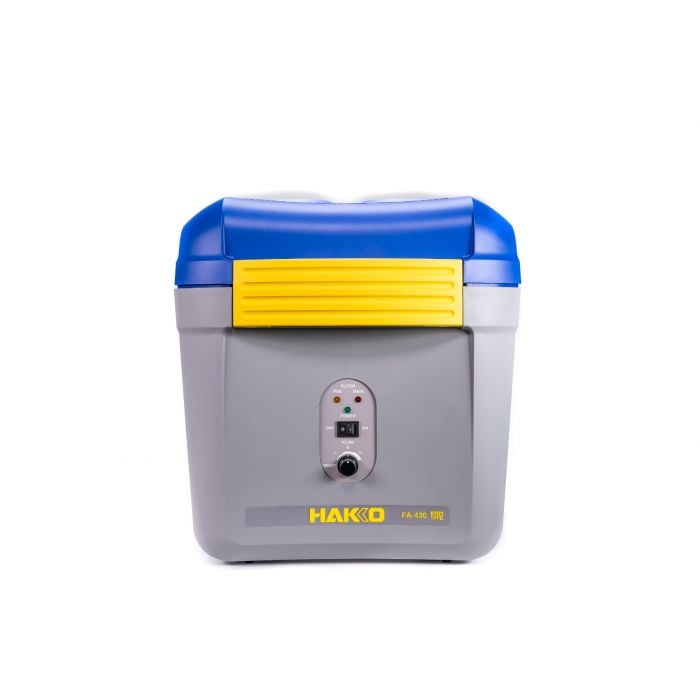

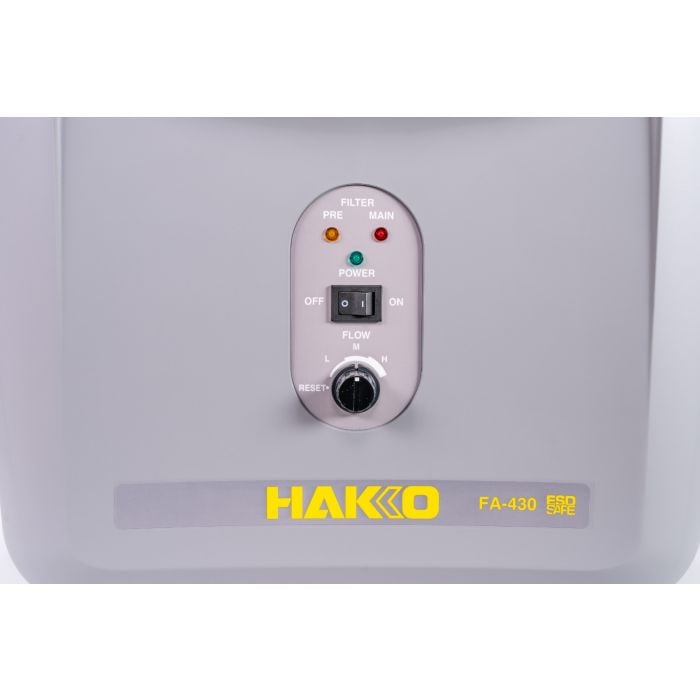

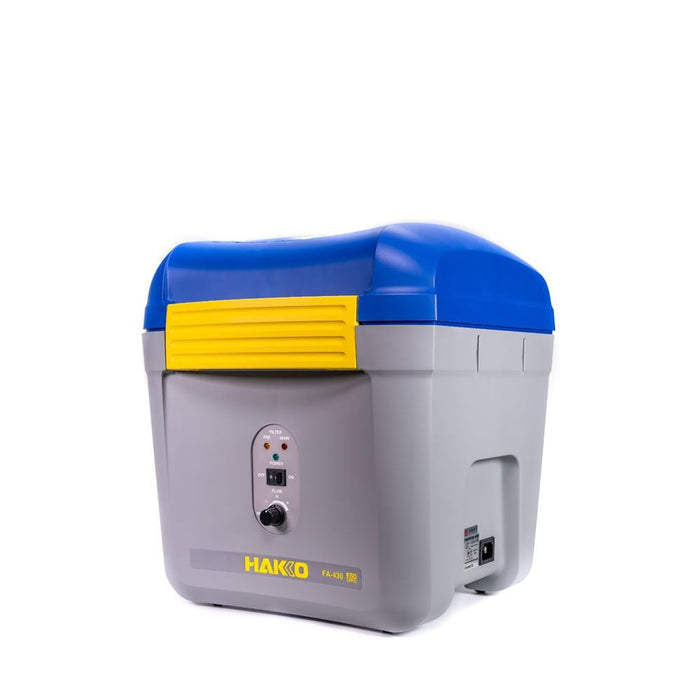

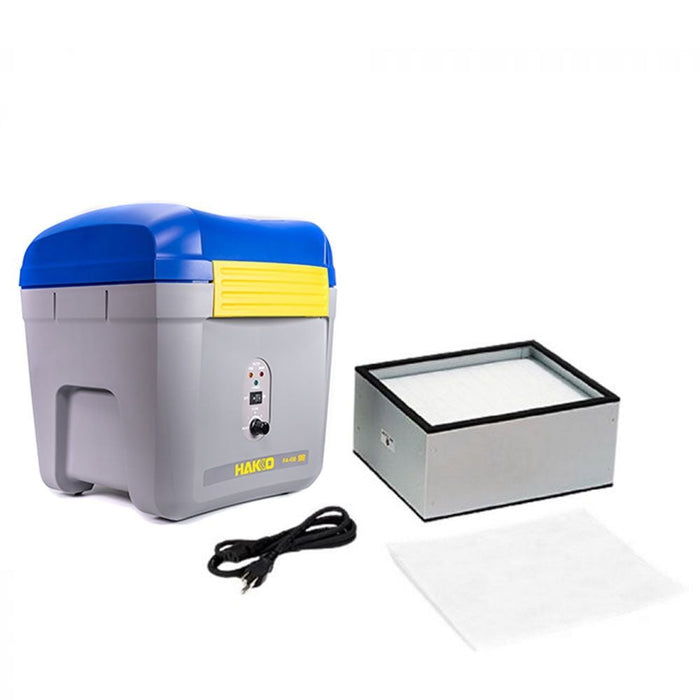

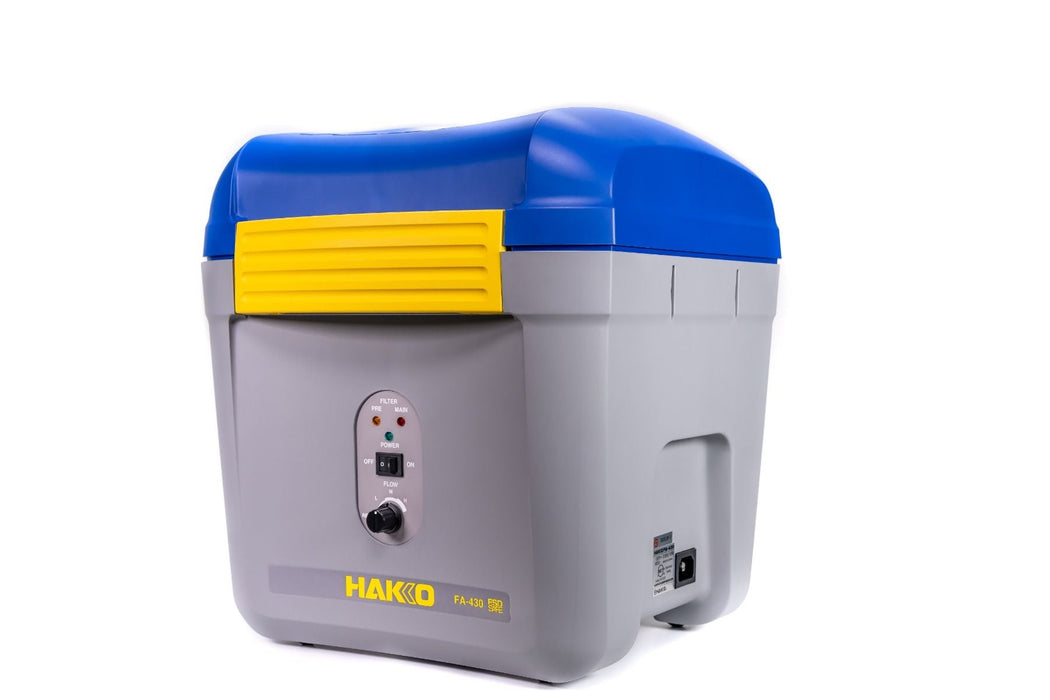

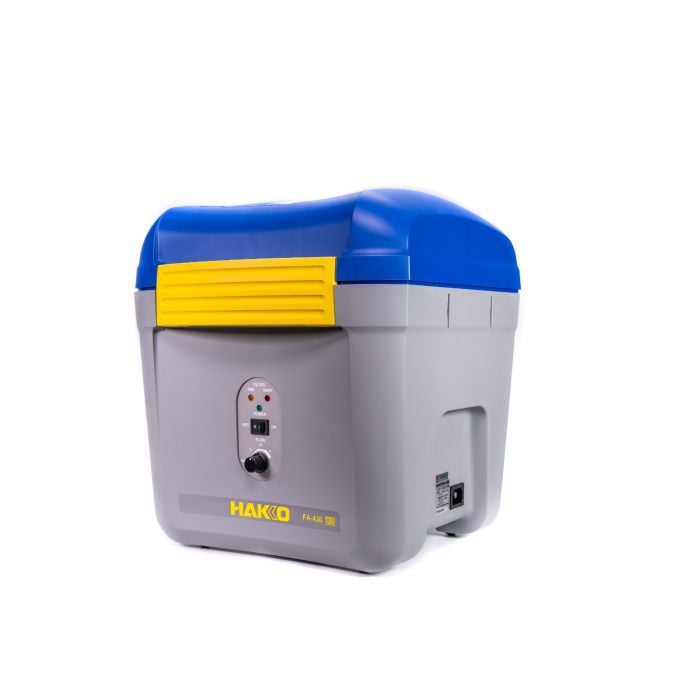

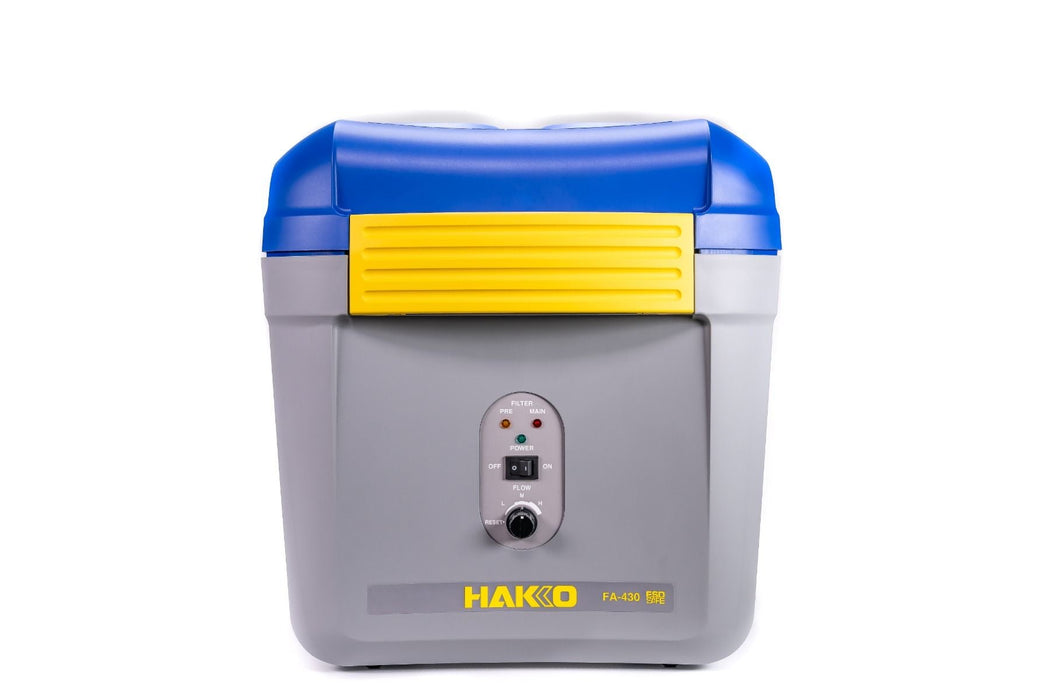

FA-430 Fume Extraction System w/o Duct Kit
Text block
SKU FA430-16
by Hakko
Save $42.97
Original price
$686.97
Original price
$686.97
-
Original price
$686.97
Original price
$686.97
Current price
$644.00
$644.00
-
$644.00
Current price
$644.00
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

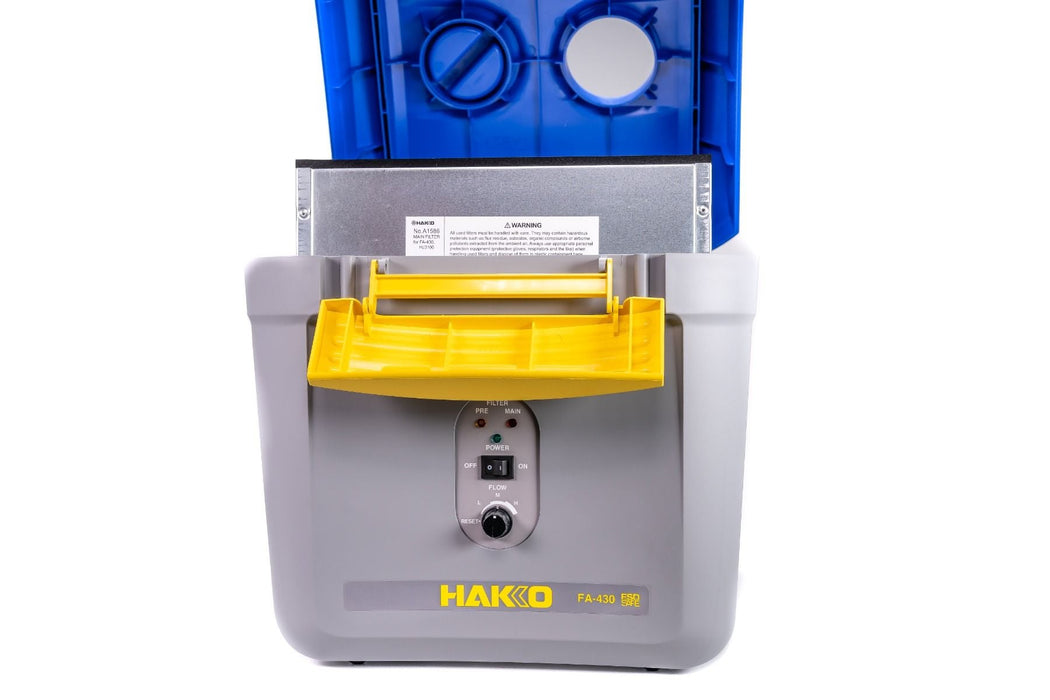

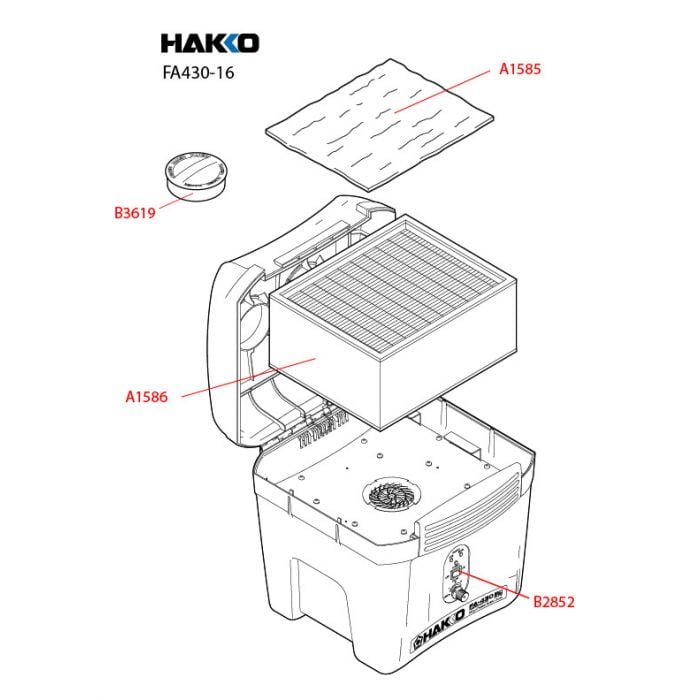

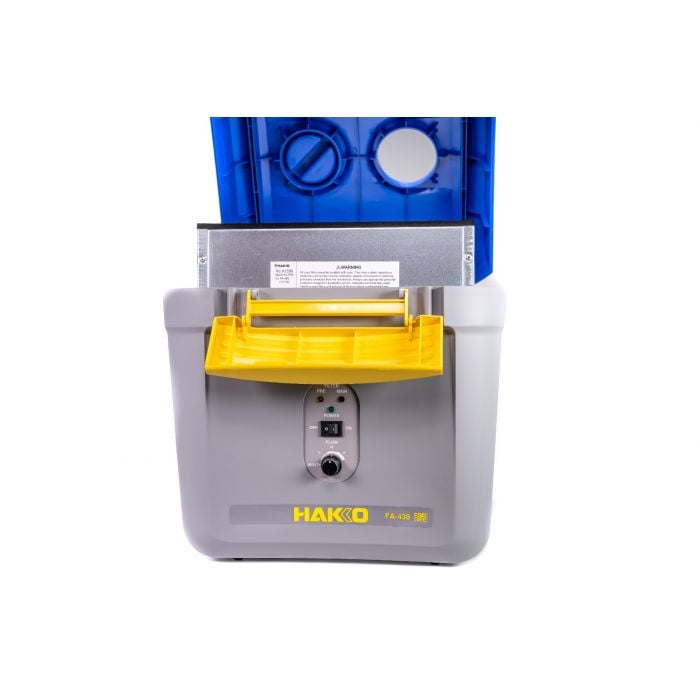

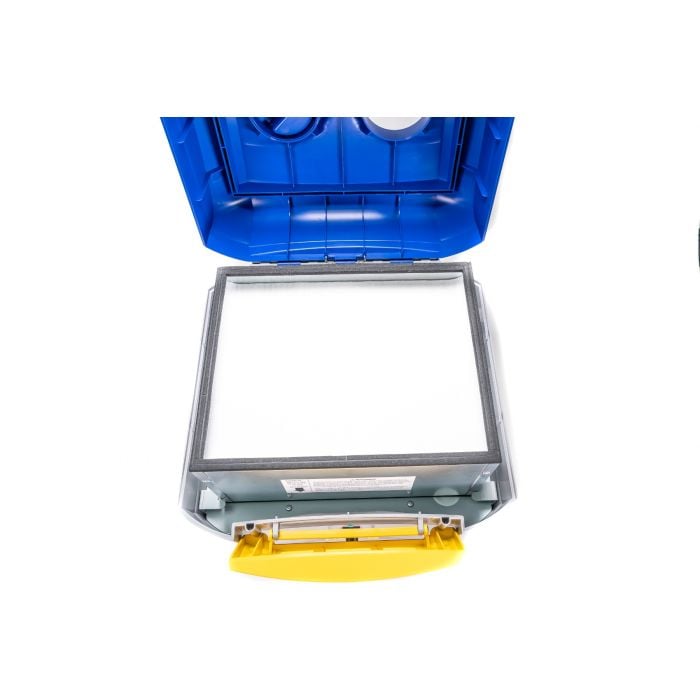

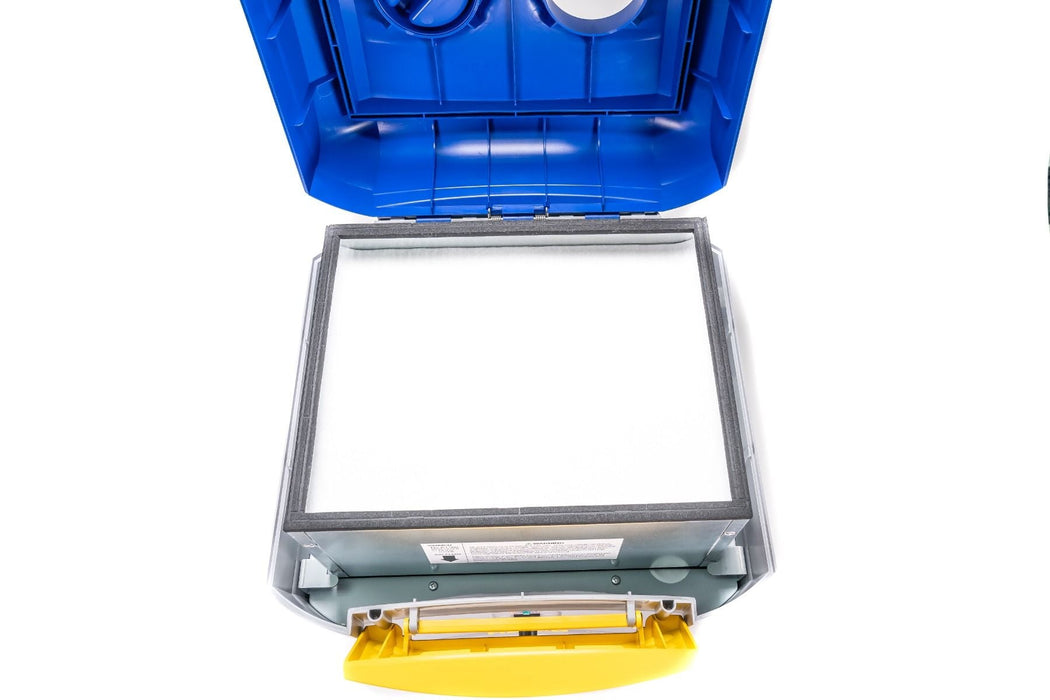

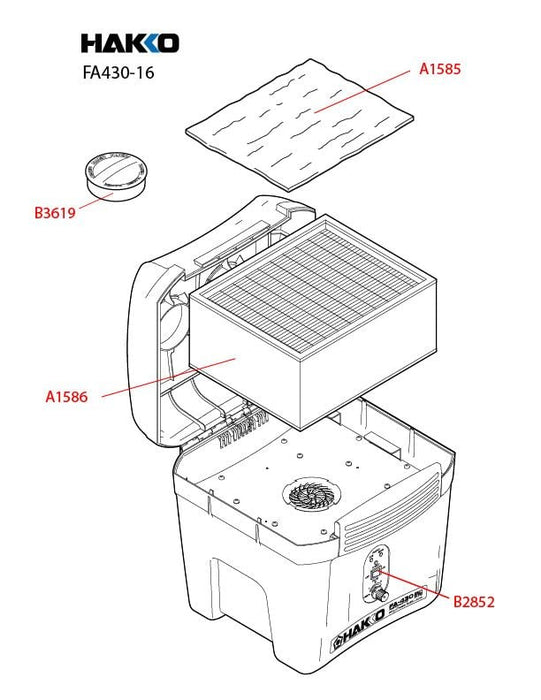

SMOKE ABSORBER,w/o DUCT&HOOD,FA-430 The Hakko FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area. Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430. Request a Free Demo
Specifications
| Part No. | FA430-16 |
| Power Consumption | 110W / 120VAC |
| Motor Type | Brushless |
| High Airflow (w/ single duct) | 4.1 m3/min (145 cfm) |
| Medium Airflow (w/ single duct) | 3.1 m3/min (109 cfm) |
| Low Airflow (w/ single duct) | 2.6 m3/min (92 cfm) |
| High. Airflow (w/ two ducts) | 4.7 m3/min (167 cfm) |
| Medium. Airflow (w/ two ducts) | 3.7 m3/min (109 cfm) |
| Low. Airflow (w/ two ducts) | 2.8 m3/min (99 cfm) |
| Vacuum Pressure | 1500 Pa (0.44 in. Hg) |
| Filtering Efficiency | >98% 0.3µm(capable of 99.97% @ 0.3µm) |
| Noise Level | 44 - 53 dB @ 1m |
| Dimensions | 330 (W) x 366 (H) x 343 (D) mm(13.0 x 14.4 x 13.5 in.) |
| Weight | 7.5 kgs (16.5 lb.) |
| ESD Safe | Yes |
| Country of Origin | JPN |
