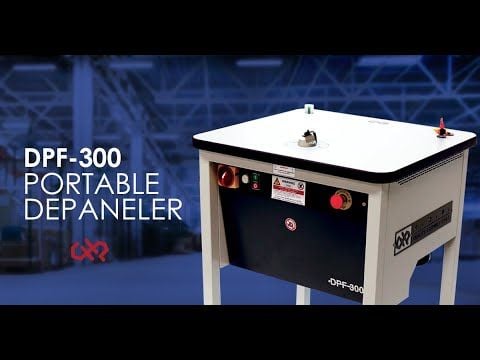

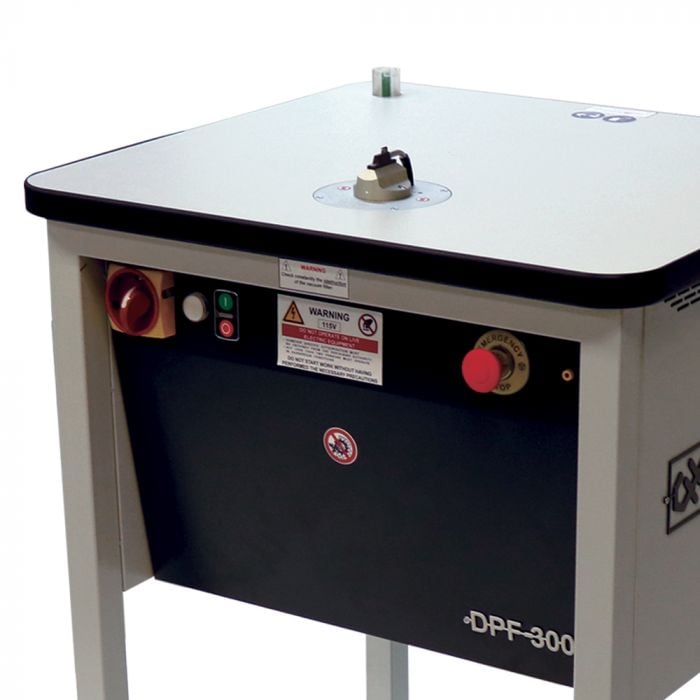

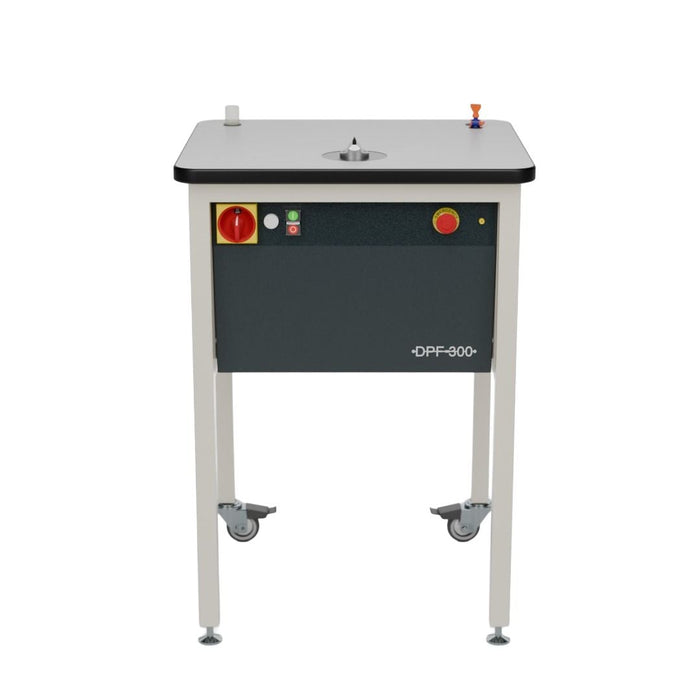

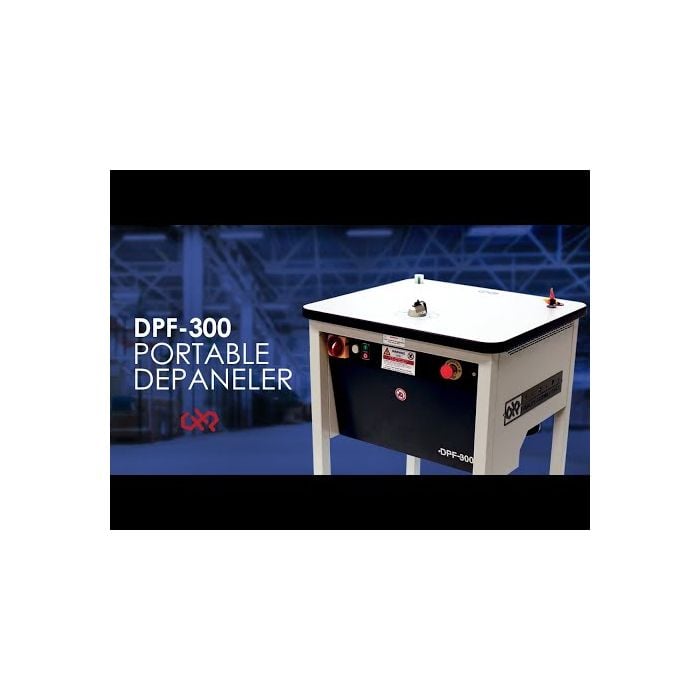

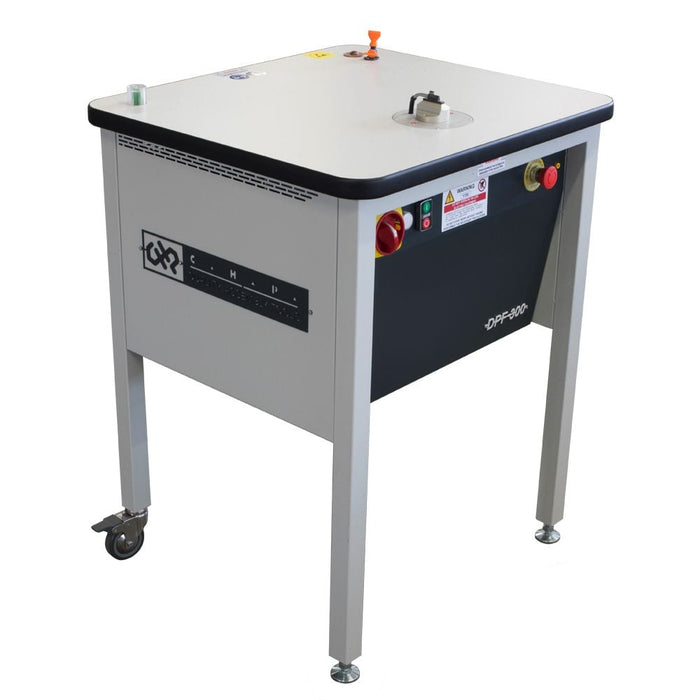

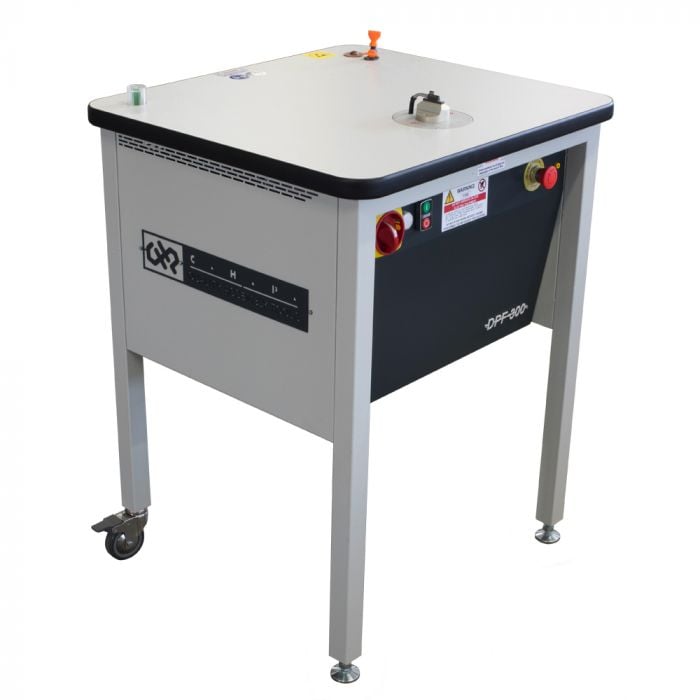

DPF-300 Depaneling System
Text block
SKU DPF-300-E
by Hakko
Original price
$7,499.97
-
Original price
$7,499.97
Original price
$7,499.97
$7,499.97
$7,499.97
-
$7,499.97
Current price
$7,499.97
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
SYSTEM, DEPANELING, ELECTRICAL VACUUM, ESD, DPF-300 A new manual router table for depaneling PCB's from a panel or multiblock. A portable depaneling system providing the same performance and quality of a high-end router machine, with no programming required, at a fraction of the cost compared to other machines. NOTE: Milling Bits and Interchangeable Guide sold separately NOTE: Please Call For Any Inquiries Request a Free Demo
Specifications
| Part No. | DPF-300-E |
| Dimensions | 64 x 70 x 95 cm (25 x 28 x 37 in) |
| Clearence | 164 x 170 cm (65 x 67 in) |
| Weight | 73 kg (161 lbs) |
| Voltage | 115V/60Hz |
| Power | 1 kW |
| Motor Spindle Power | 0.27 kW |
| Micro-spindle Speed | 24,000 RPM Max. |
| Noise Level | 80 dB(A) ± 3 dB(A)measured at the operator position.Test FR4 thck.1.6 mm / cutter 2 mm |
| Vibrations | < 2.5 m/s^2Test FR4 thck.1.6 mm / cutter 2 mm |
| Storing Temperature | -10°C to 50°C (14°F to 122°F) |
| Working Temperature | 5°C to 35°C (41°F to 95°F) |
| Interchangeable Guide Material | Hardened ground steel |
| ESD Safe | Yes |
| Thickness | Max. 4 mm |
| Slot Length | Min. 11 mm |
| Slot Width | 1.5 - 2.5 mm |
| Slot Width Tolerance | 0 / -0.02 mm |
| Isthmus Distance From Components | min. 0.8 mm |
| PCB Material | FR4/ CCL/ CEM/ Aluminum* |
