DPF-200 Depaneling System
Text block
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

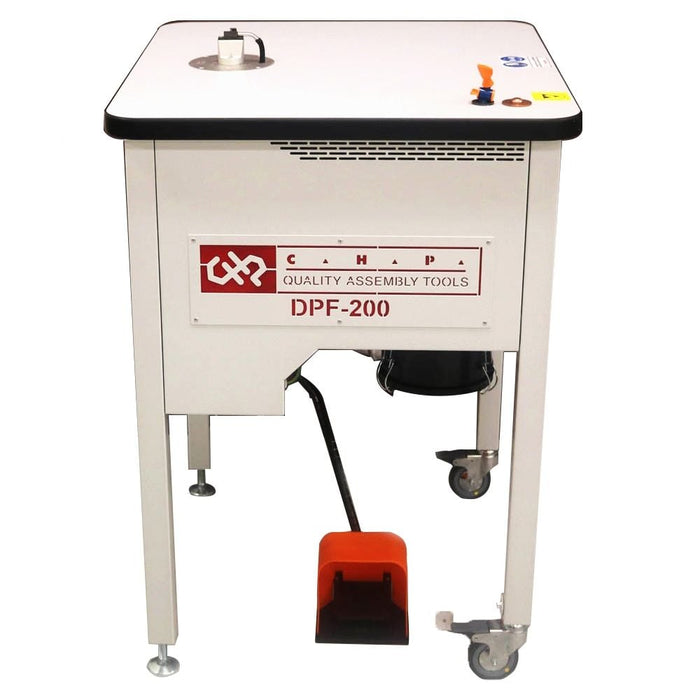

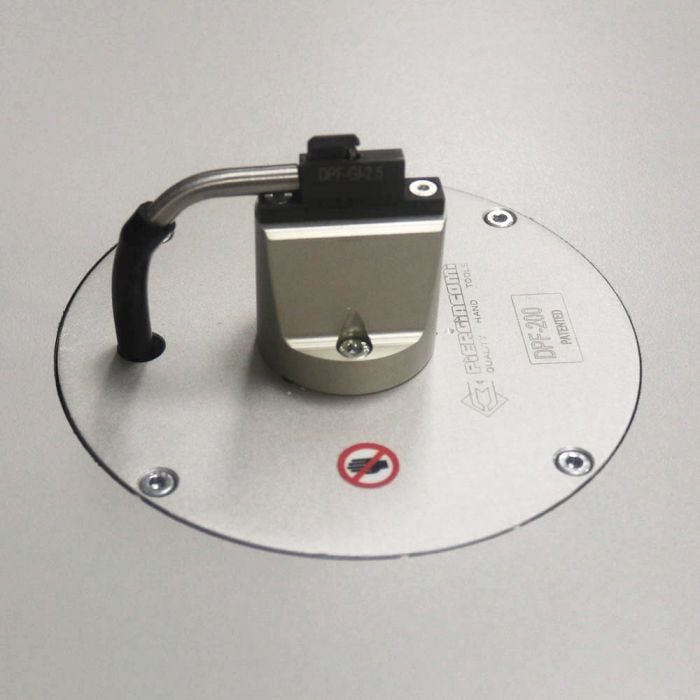

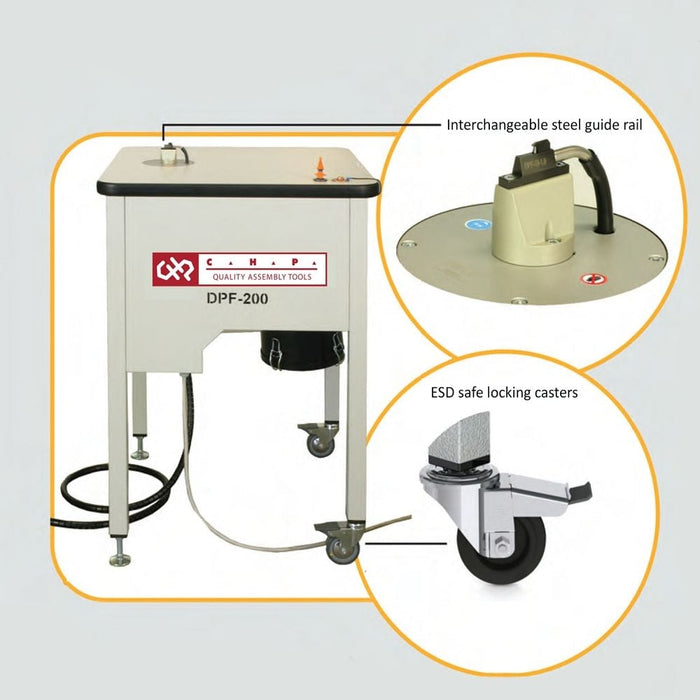

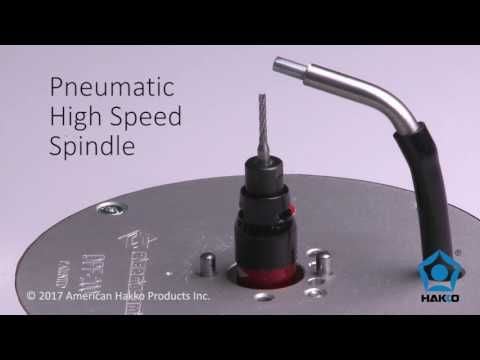

A manual router table for depaneling PCB’s from a panel or multiblock. The heavy duty rear casters on this unit make it easy to relocate. The shape of the interchangeable guide rail assists the operator to safely place and maneuver the PCB’s until the cut is complete without harm to the PCB or operator. To ensure a precision cut every time, you can get a steel guide rail made. Performs the same quality of an expensive automated system but at a much lower cost. NOTE: Air connection hose kit (PN: 999-216) not included and sold separately. Recommended to order with purchase of DPF-200. Guide rail and milling bits NOT included and must be purchased separately. NOTE: This part number has been replaced by the DPF-300-E NOTE: PLEASE CALL for any inquiries
Specifications
| Part No. | DPF-200-E |
| Dimensions | 64 x 70 x 95 cm (25 x 28 x 37 in) |
| Necessary Space | 164 x 170 cm (65 x 67 in) |
| Weight | 55 kg (121 lbs) |
| Voltage | 120V/60Hz |
| Power | 0.63 kW |
| Supply Pressure | 6 bars (87 psi) -6 mm ø connection pipe |
| Compressed Air Consumption | Max. 210 L/min. Average 140 L/min |
| Depression | 22 kPa (220 mbar) |
| Micro-spindle Speed | 60,000 RPM Max. |
| Noise Level | 90 dB(A) - Uncertinaty 3 dB(A) detected on the operator position |
| Thickness | Max. 2.5 mm |
| Slot Length | Min. 10.5 mm |
| Slot Width | 1.5 - 2.5 mm |
| Slot Width Tolerance | 0 / -0.02 mm |
| Isthmus Distance From Components | min. 1 mm |
| PCB Material | FR4/ CEM/ Aluminum* |
