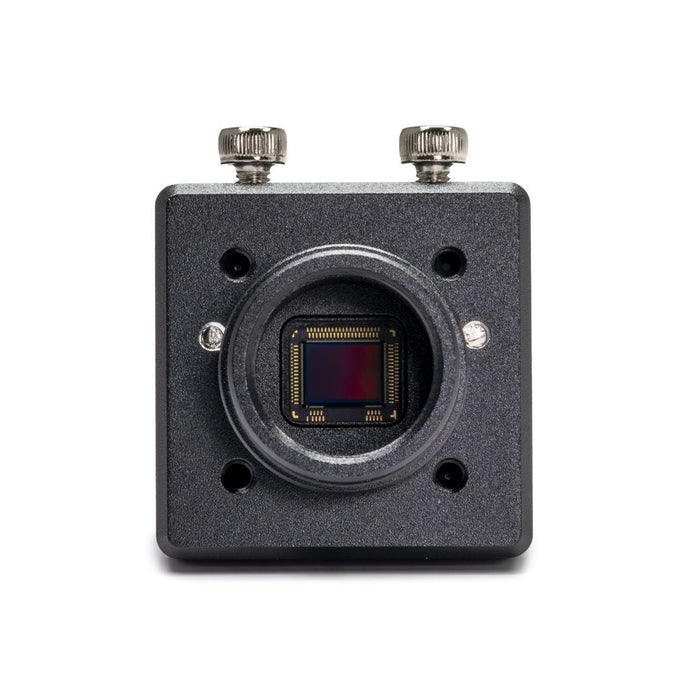

CX5039 Camera Unit
Text block
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.

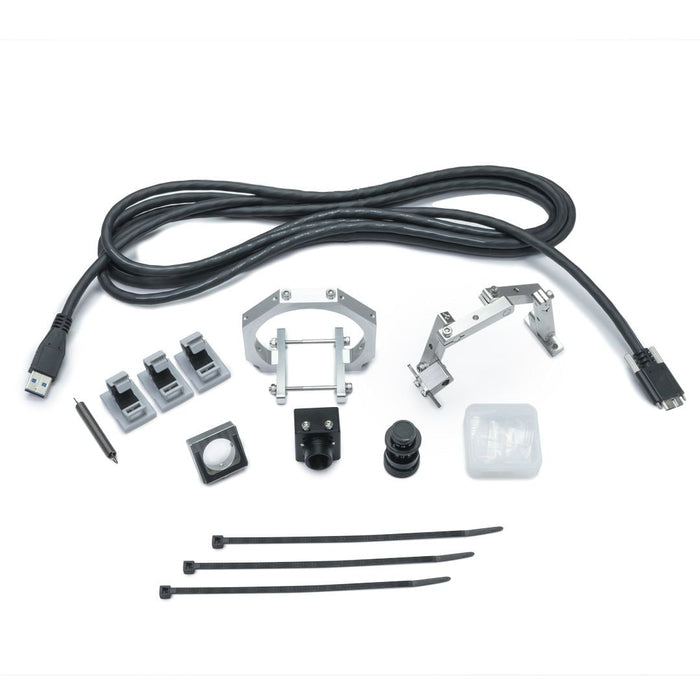

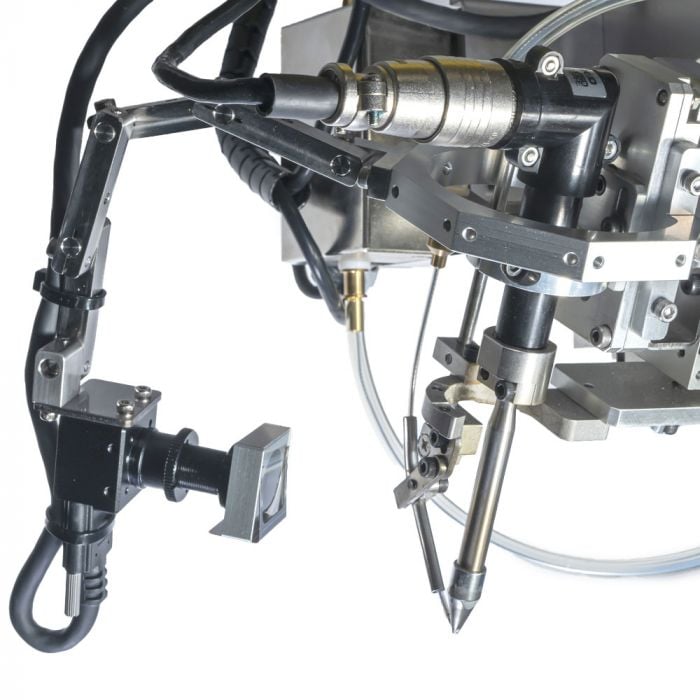

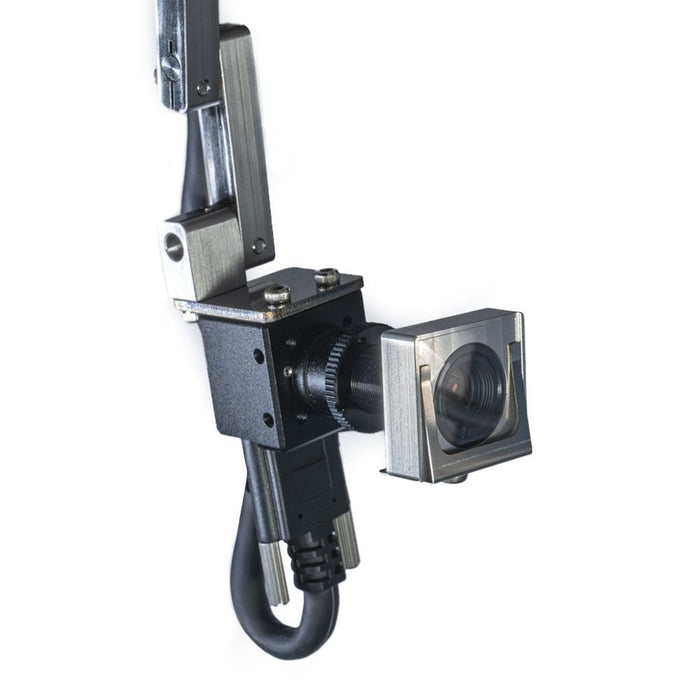

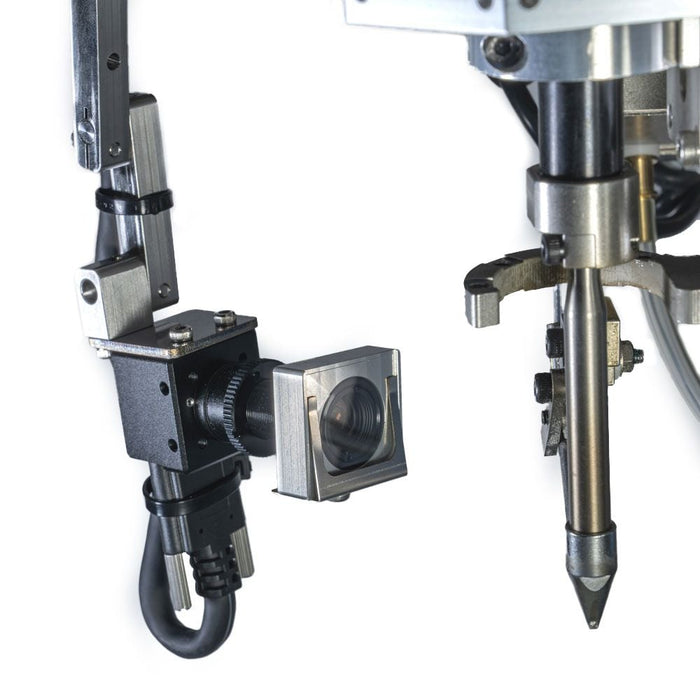

CAMERA UNIT, TRACE APP, HU-200 Additional camera accessory unit for the HU-200 Robotic Soldering System. The HAKKO CX5039 Camera and Trace View application for the HU-200 Robotic Soldering System provides a high-resolution witness camera that records and synchronizes video during the execution of the soldering program, providing the user with an audit log for the solder joints created by the robotic soldering system. Note: Please call for all inquiries FIND OUT HOW WE CAN HELP
Specifications
| Part No. | CX5039 |

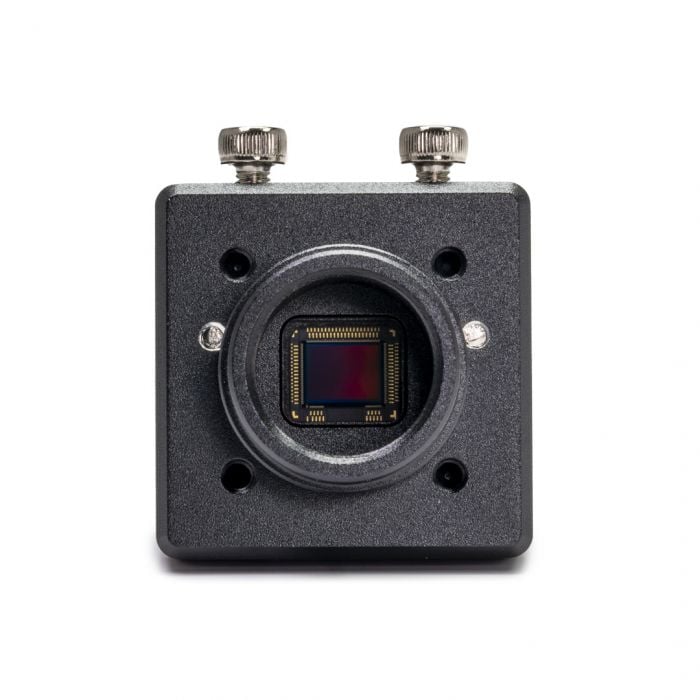

| Camera Type | CMOS 1/3.2" |
| Resolution | 1.3MP, 1280 x 960 (Max) |
| Image Size | 1280 x 720 |
| Frame Rate1 | 10, 6, 5, 4, 3, 2, 1 |
| Recording Format | H.264, MPEG-4 |
| Focus | Fixed |
| Optical Interface | S-Mount (M12) |

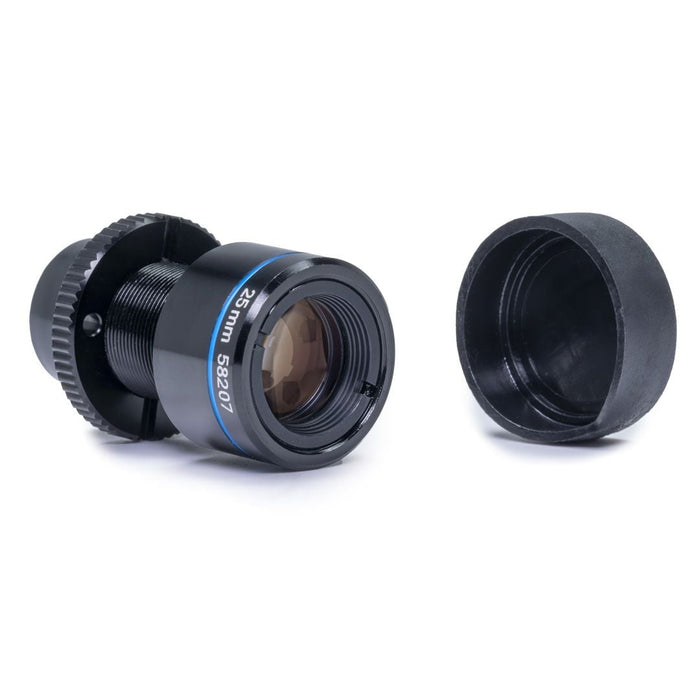

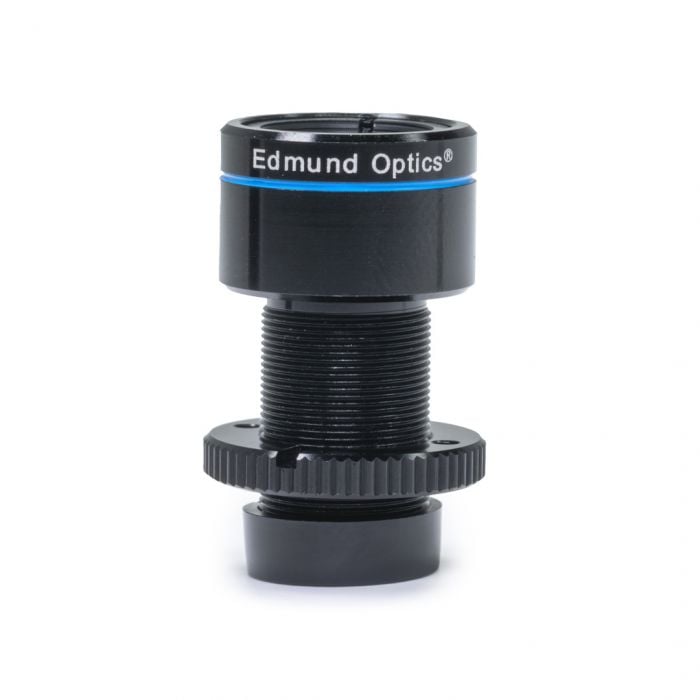

| Lens (Standard)Focal LengthField of View | 25mm |
| Lens (Optional)Focal LengthField of View | 12mm |

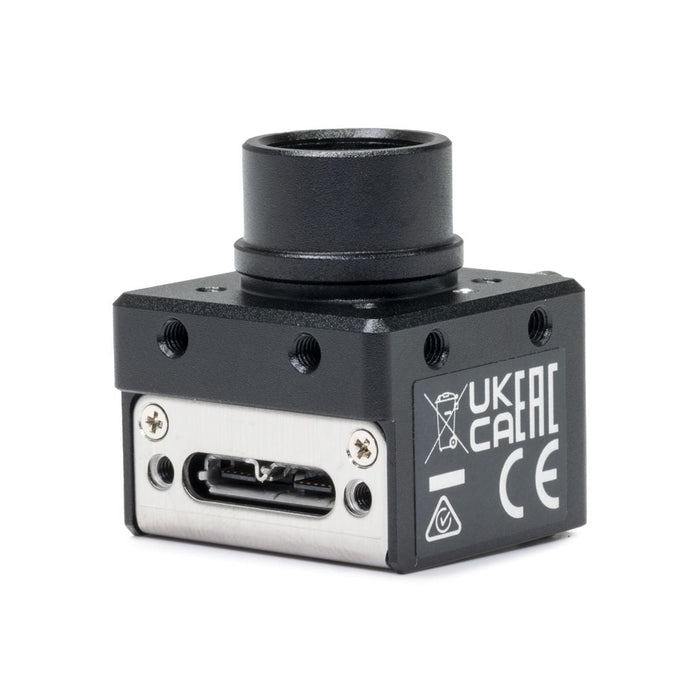

| Dimensions(Camera Module) | 25 x 25 x 28mm(1.0 x 1.0 x 1.1 in.) |
| Weight (w Fixture)Camera Module Only | 221 g (7.8 oz.) |
| Interface | USB 3.0 |
