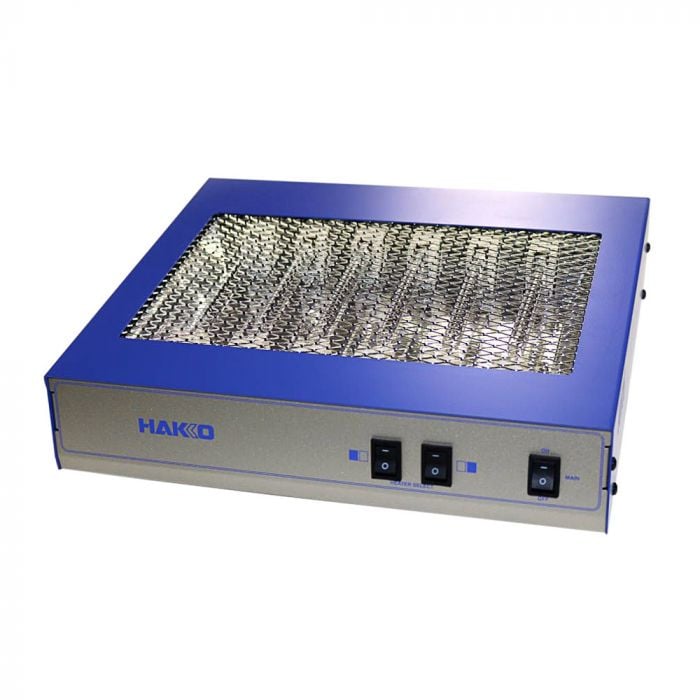

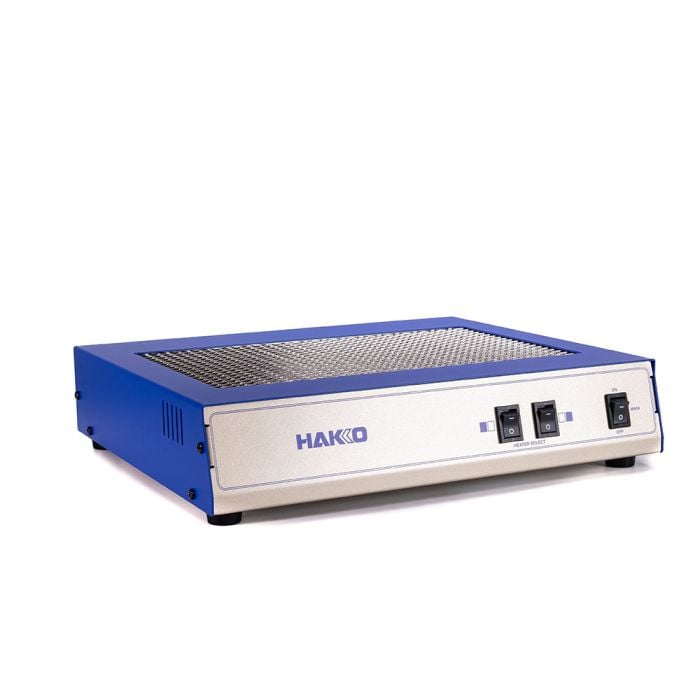

C5016, Bottom Heater
Text block
SKU C5016
by Hakko
Save $50.59
Original price
$808.97
Original price
$808.97
-
Original price
$808.97
Original price
$808.97
Current price
$758.38
$758.38
-
$758.38
Current price
$758.38
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
Bottom heater that integrates with the HAKKO FR-811 SMD hot air rework system.
Specifications
| Part Number | C5016 |
| Input Voltage | 120 VAC 50/60 Hz |
| Power Consumption | 730W |
| Effective Heater Area | 7.5 x 3.2 in. (190 x 80 mm) |
| Board Capacity | 9.8 x 5.5 in. (248 x 140 mm) |

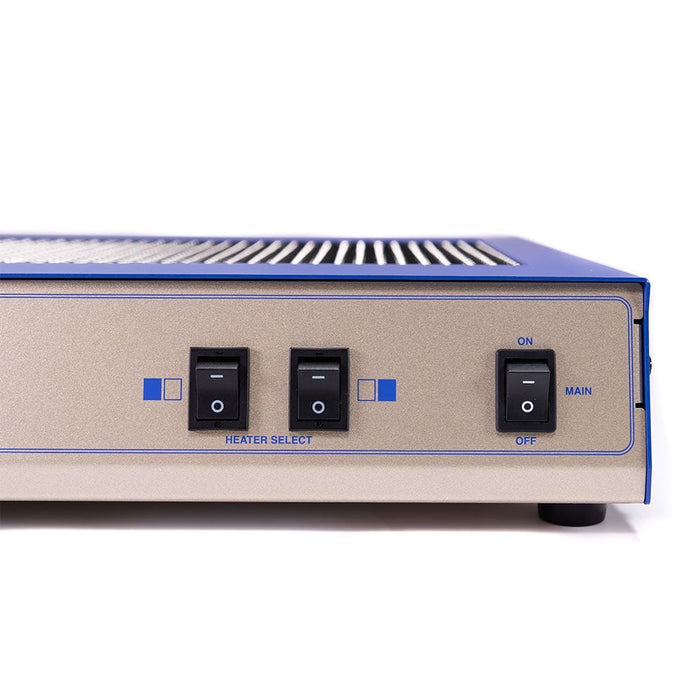

| Heating Zones | 2 |
| Operating Modes | Power / Thermocouple |
| T/C Range | 122-482°F (50-250°C) |
| T/C Stability | ±9°F / ±5°C |
| Power Range | 1 - 100% (1% increments) |
| Heater Control | Requires FR-811 |

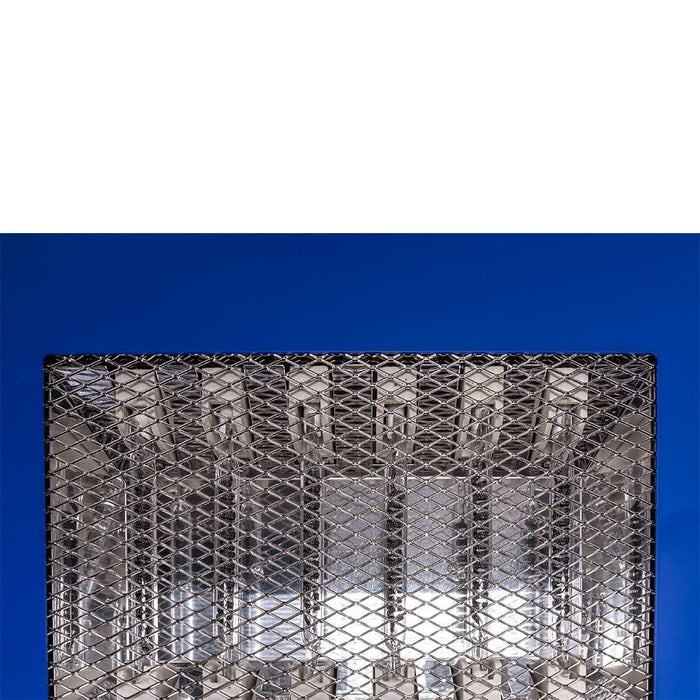

| Heater Type | High Efficiency Carbon Filament |
| Heater Lamp MTBF | ~ 2100 hours |

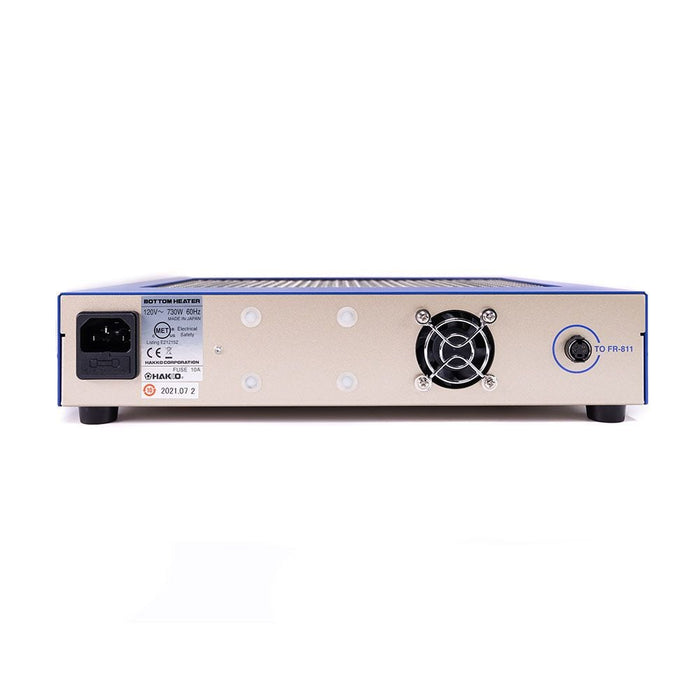

| External Connections† | 4-pin DIN for FR-811 ONLY |
| Dimensions (W x H x D) | 11.6 x 2.6 x 9.7 in.295 x 66 x 246 mm |
| Weight | 4.6 lb. (2.1 kg) |
| ESD Safe | Yes |
| Safety Certification | cMETus |
