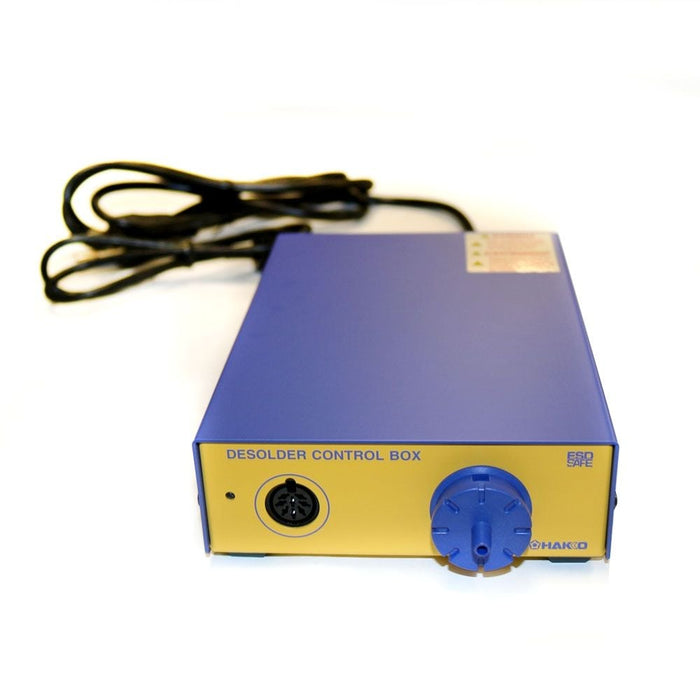

C1492 Desoldering Control Box
Text block
SKU C1492
by Hakko
Original price
$318.87
-
Original price
$318.87
Original price
$318.87
$318.87
-
$318.87
Current price
$318.87
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
Desoldering Control Box (DCB) for the FM-2024.
Specifications
| Model Name | FM-2024 Desoldering Module |
| Part No. | C1492 |
| Power Consumption | 12W |
| Output | 24V |
| Vacuum Generator | Ejector type |
| Vacuum Pressure (max) | 93 kPa (700 mmHg) (28in. Hg) |
| Suction Flow | 20 l/min. |
| Tip to Ground Potential | < 2 mV |
| Applied Air Pressure | 490 kPa (71 PSI) when in use (trigger is pressed) |
| Compressed Air Consumption | 1.62 cfm (46 l/min.) |
| Outer Dimensions (w/o cord) | 119(W) x 45(H) x 172(D) mm4.7(W) x 1.8(H) x 6.8(D) in. |
| Weight | 1.2 kg (2.6 lbs. |
