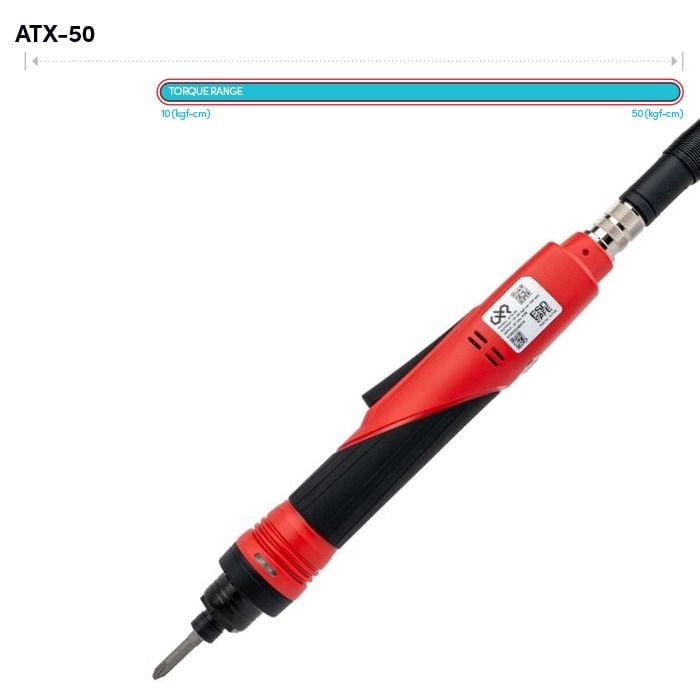

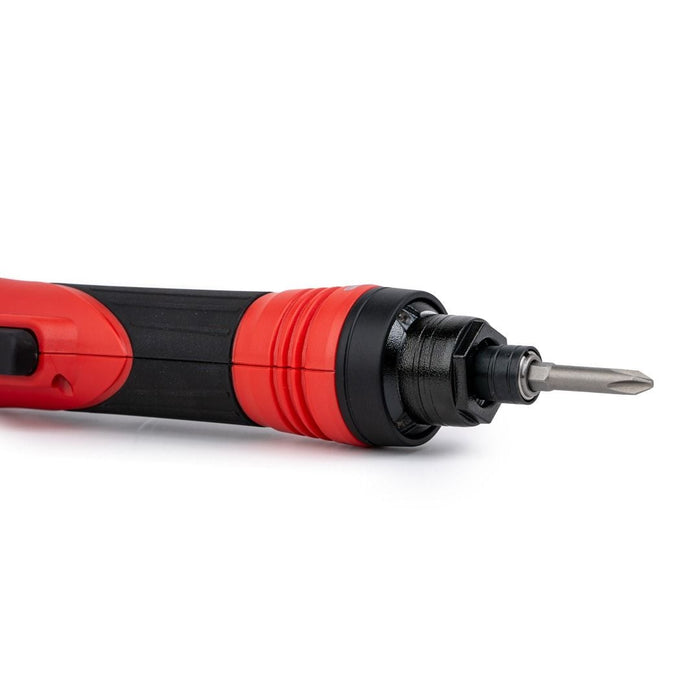

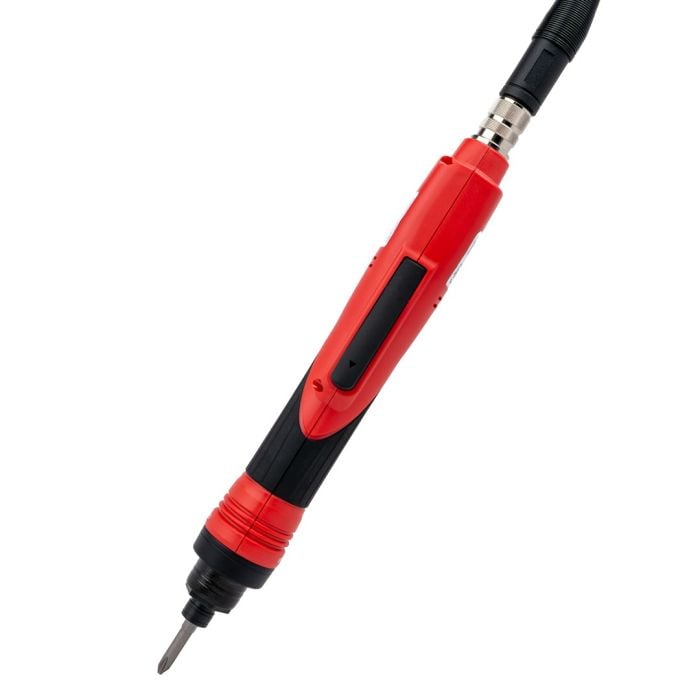

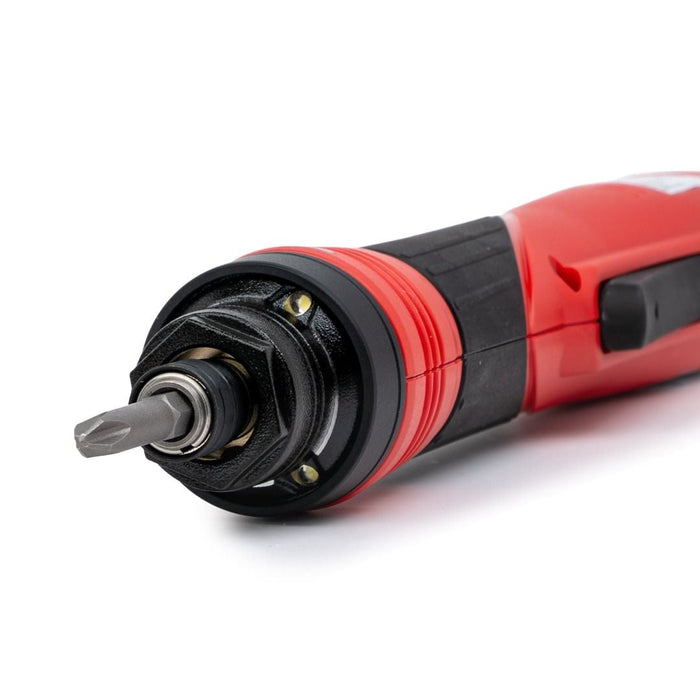

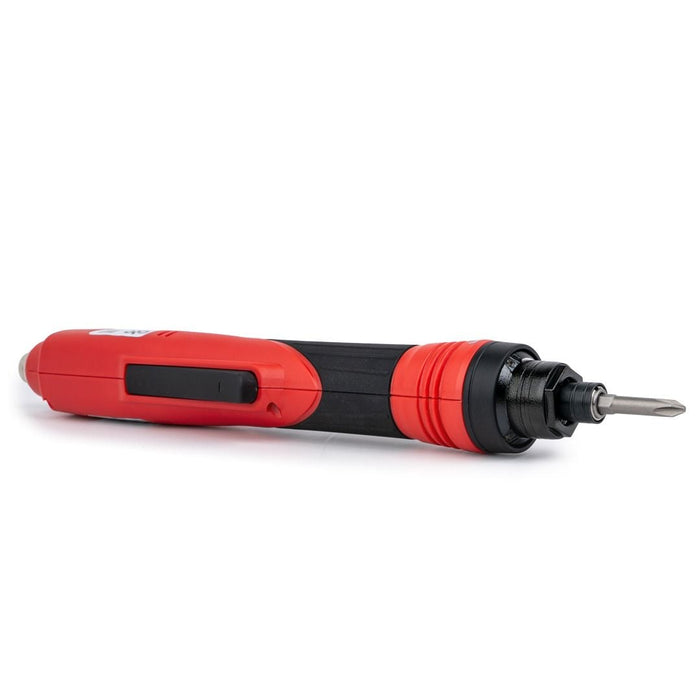

ATX-50 Intelligent Torque Driver
Text block
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DRIVER,TRANSDUCER,10.0-50.0KGF-CM,ESD,W/CAL CERT,ATX-50 The drivers feature an ergonomic grip design that is lightweight and ESD safe for electronics assembly. The drivers also feature an integrated, intensity-adjustable white LED work light, user-defined status indicator light. They have an easy-to-operate rotation direction selector, and a user-programmable trigger system that allows you to define the trigger type as push, or both also define the start and stop sensitivity. Note: Smart Controller and Connecting Cable Sold Separately
Specifications
| Model | ATX-12 |
| Torque Range | 2.4 - 12 kgf-cm(2.08 - 10.41 lbf-in.) |
| Max Speed (RPM) | 2000 |
| Torque Precision | < ±3% |
| Tool Bit Shank | 6.35 mm (0.25 in.) Hex |
| Tool Bits Included(50 mm Length) | Phillips #1 - 3.0 mm øPhillips #2 - 4.5 mm ø |
| Grip Diameter | 34 mm (1.34 in.) |
| Trigger Type | User-Programmable Push/Lever/Both |
| Work Light | Integrated White LED - User-Programmable Intensity |
| Status Indicator | User-Programmable Yellow/Red/Green |
| Dimensions (W x D x H) | 41 x 40 x 272 mm(1.61 x 1.57 x 10.71 in.) |
| Weight | 480 g (16.9 oz.) |
| Operating Environment | 0 - 40°C (-32 – 104°F)0 - 90% RH (Non-condensing) |
| Enclosure Rating | IP40 |
