485 Soldering System w/o 486 Air Control Unit
Text block
SKU 485-1-V12
by Hakko
Sold out
Original price
$6,031.47
-
Original price
$6,031.47
Original price
$6,031.47
$6,031.47
-
$6,031.47
Current price
$6,031.47
Pay with a Purchase Order
As part of our payment options, we gladly accept purchase orders. However, it is important to note that setting up terms with Starboard Technologies is necessary. To request the required information, please email us at rubin@starboardtech.com or make use of our user-friendly online submission form.
DISCONTINUED: This item has been discontinued by Hakko. No direct replacement has been specified by the manufacturer.

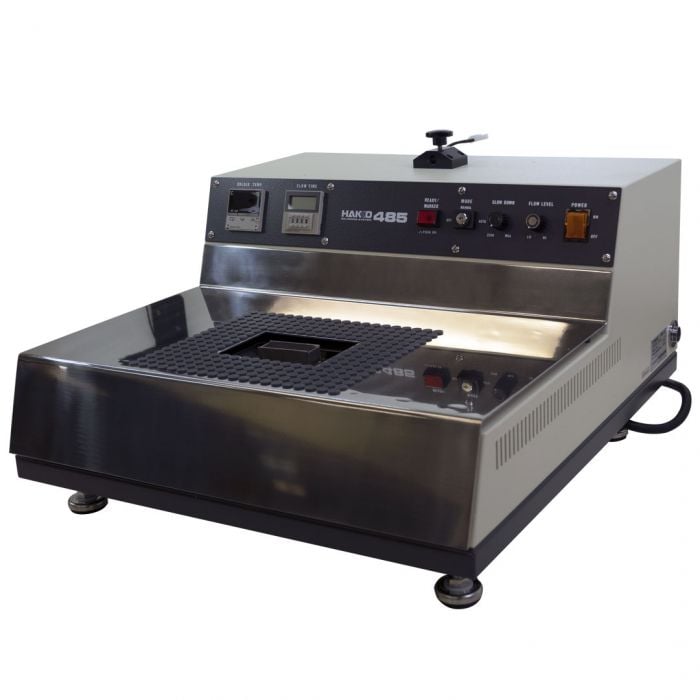

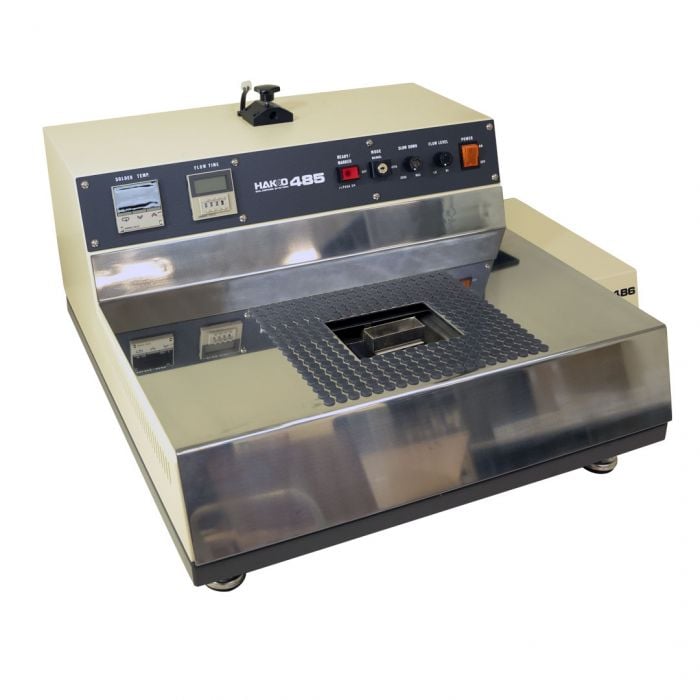

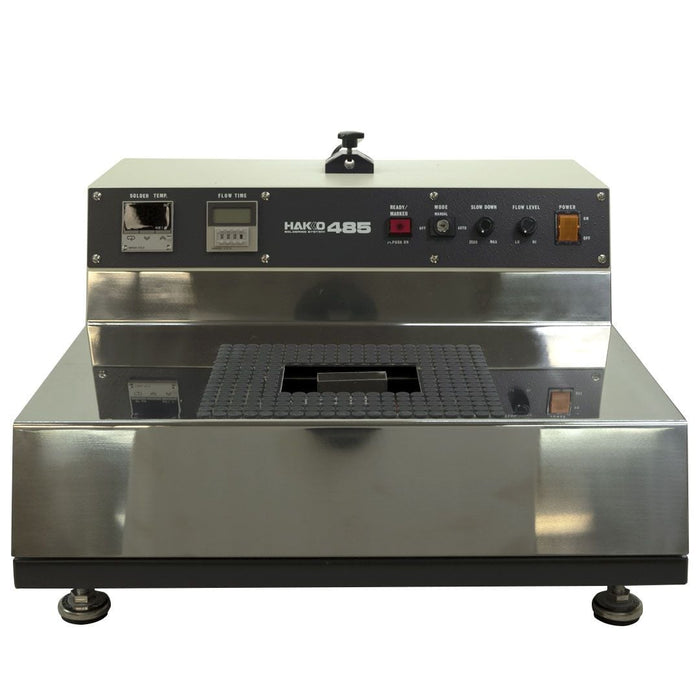

The Hakko 485 Soldering System is a high-performance soldering systems designed exclusively for soldering and desoldering components and connectors mounted on printed circuit boards.
Specifications
| Part Number | 485-V12 (with 486 air blower)485-1-V12 (w/o 486 air blower) |
| Power Consumption | 850W 120VAC |
| Temperature Range | Room temperature - 299°C (570°F) |
| Solder | 10 kg (22 lb.) |
| Heating Element | 800W (400W x 2) |
| Air Pressure | 2 kg/cm² (4.4 lbs.) - 10 kg/cm² (22 lbs.) |
| Dimensions | 485 (Body) |
| 486 (Air Unit) | 150(W) x 100(H) x 300 (D) mm5.9(W) x 3.9(H) x 11.8(D) in. |
| Weight | 485 (Body) |
| 486 (Air Unit) | 3.5 kg. (7.7 lbs.) |
